GS-SHE-PS-C2

Paddock Shelter Standard Ply/Mesh Sides

Paddock Shelter

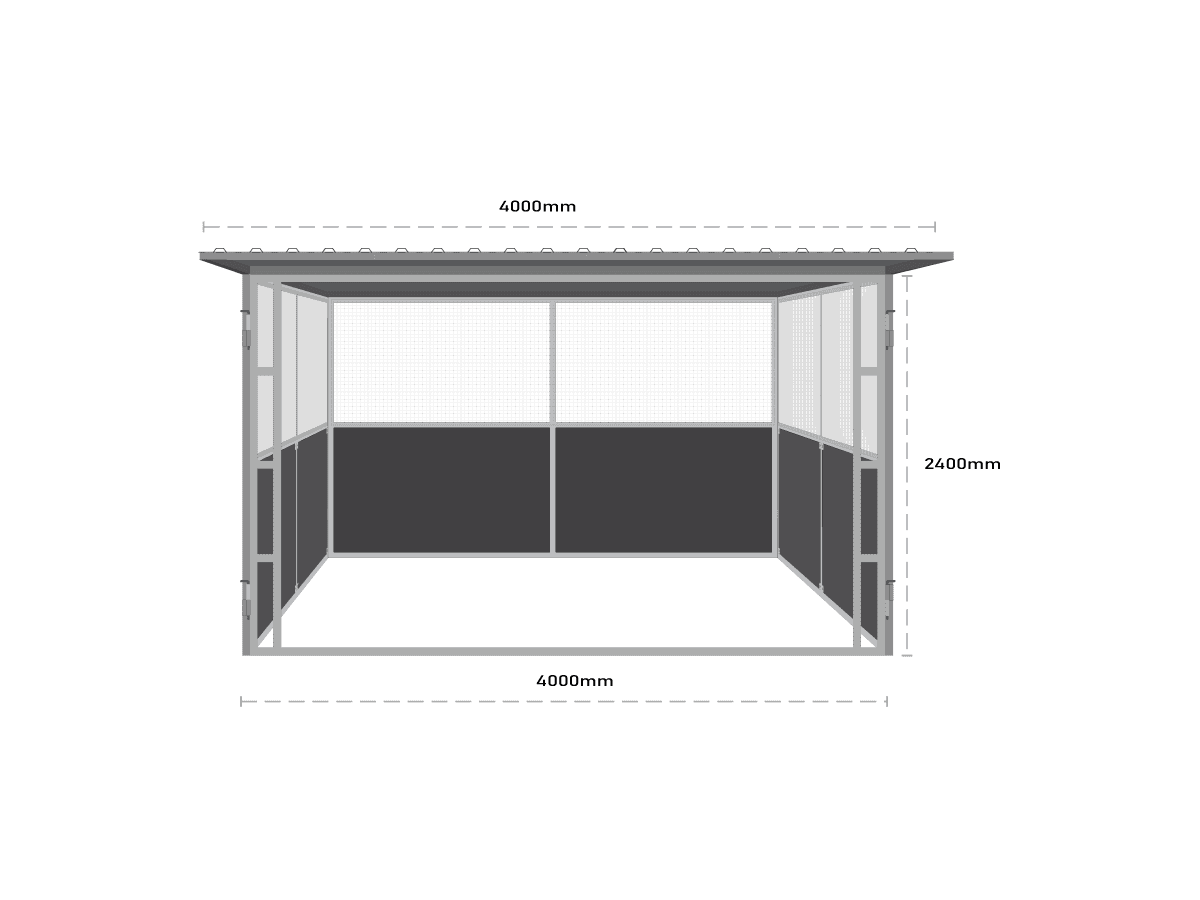

Open-front paddock shelter with ply and mesh on three sides, for horses in exposed paddocks that need more cover from wind and rain than a rail shelter gives. The 4 m × 4 m bay sits under a flat 2.4 m roof.

Australian made by Guerilla Steel: each wall is a single welded panel of 50 × 50 mm galvanised RHS, with mesh above the ply to keep air moving. Panels join with cattle drop pins and sleeves, so the shelter can be relocated if the paddock layout changes.

  • Bay: 1 × 4 m × 4 m
  • Front: open-front panel
  • Internal floor area: 16 m²
  • Frame footprint: 4.1 m × 4.1 m (roof overhang extra)
  • Height: 2.4 m
  • Roof: trapezoidal ribbed steel sheeting (Trimdek® or Monoclad® profile), 900 mm front and 100 mm rear overhang
  • Sides: 17 mm form ply lower, 4 mm galvanised mesh upper (rear and both ends)
  • Frame: 50 × 50 mm galvanised RHS, welded panels joined with cattle drop pins and sleeves
Standard
Dimensions
4000mm L
×
4000mm D
×
2400mm H
STALL Count
1-bay
Inside
16m²
Installation
550/per bay

$4,400.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

More Weather Protection for Exposed Paddocks

Small Property, Lifestyle Hobby Farms

Guerilla Steel Ply/Mesh Paddock Shelter – Open Front, More Weather Protection

Paddock Shelter Specs

SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

Roof
Flat Monoclad® Roof

900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative”

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
Two-bay horse shelter with split ply and mesh rear panels under trees GS-632 / June 2026 ✦ Customised
Lockyer Valley
QLD

2 Bay Shelter High Airflow Split-Mesh Ply

Size
2 Bays
8m x 4m (32m²)
MODEL / Type
High Airflow
Paddock Shelter
Built
1 day
Guerilla Team

An 8m x 4m High Airflow paddock shelter built without an internal divider, creating one continuous 32m² open-front space instead of two separate bays. Featuring a pitched roof for rain runoff, three-quarter ply with mesh above for light and durability, all installed on a gravel pad in a single day.

★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Professional polite and punctual Professional polite and punctual

Kate D

Verify review

Exceptionally built and next level customer service We will definitely buy again

Jess Allsopp

Verify review

Morgan and his team went above and beyond for our work

Leanne Baker

Verify review

Highly recommend morgan and his boys they did a awesome job

Lisa Jeffs

Verify review
↳ More Info

Building Buying & Owning - Paddock Shelter

Paddock Shelter FAQs

We recommend starting with 4m × 4m for one horse. For multiple horses, a 4m × 8m double open bay, larger bays using 5m panels, or a multi-bay shelter can provide more room. The right configuration depends on horse size, numbers and how they behave together.

Herd dynamics matter as much as floor space. A wide, completely open front gives horses more room to enter, leave and move away from each other. It reduces the chance of a dominant horse blocking access or trapping another horse inside.

Some groups share comfortably. Others need separate shelter areas so every horse can get out of the weather. Tell us how many horses you have and how they interact, and we can recommend a layout.

For still or gentle rain, yes. For wind-driven rain, no. Where you put the shelter, and which way it faces, will make more difference than the overhang.

The roof edge sits about 2.45–2.5m up, and 900mm out from the front. Rain falls at an angle that depends on wind speed. Typical drops fall at about 6–9m/s, so even light wind tilts them noticeably. Learn more about Horse Shelter Weather Protection

A paddock shelter is designed as a more open structure, with a double reinforced steel frame on the left and right front verticals for additional support. From there, the dividing, end and rear panels can be configured with black ply, steel mesh, cattle rail panels, or a combination of these, depending on how open or enclosed you want the shelter to be. The stable system is typically configured as a more enclosed horse housing setup, while the paddock shelter gives you more flexibility around open sides, airflow and paddock access.

It depends on your base. For grass, road base, gravel or crusher dust, use a ground anchor kit. Concrete footings at anchor points can add support without requiring a full slab.

For a concrete slab, use suitable concrete anchors such as Dynabolts instead. Shed conversions may also need fixings to existing posts or walls, depending on the panel layout.

The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.

If you’re likely to expand, plan the orientation, access and available space from the start.
