GS-RF-PIT-4

High Airflow Roof Pitch Frame for 4m Front Horse Stable

Stable Panel, Upgrade

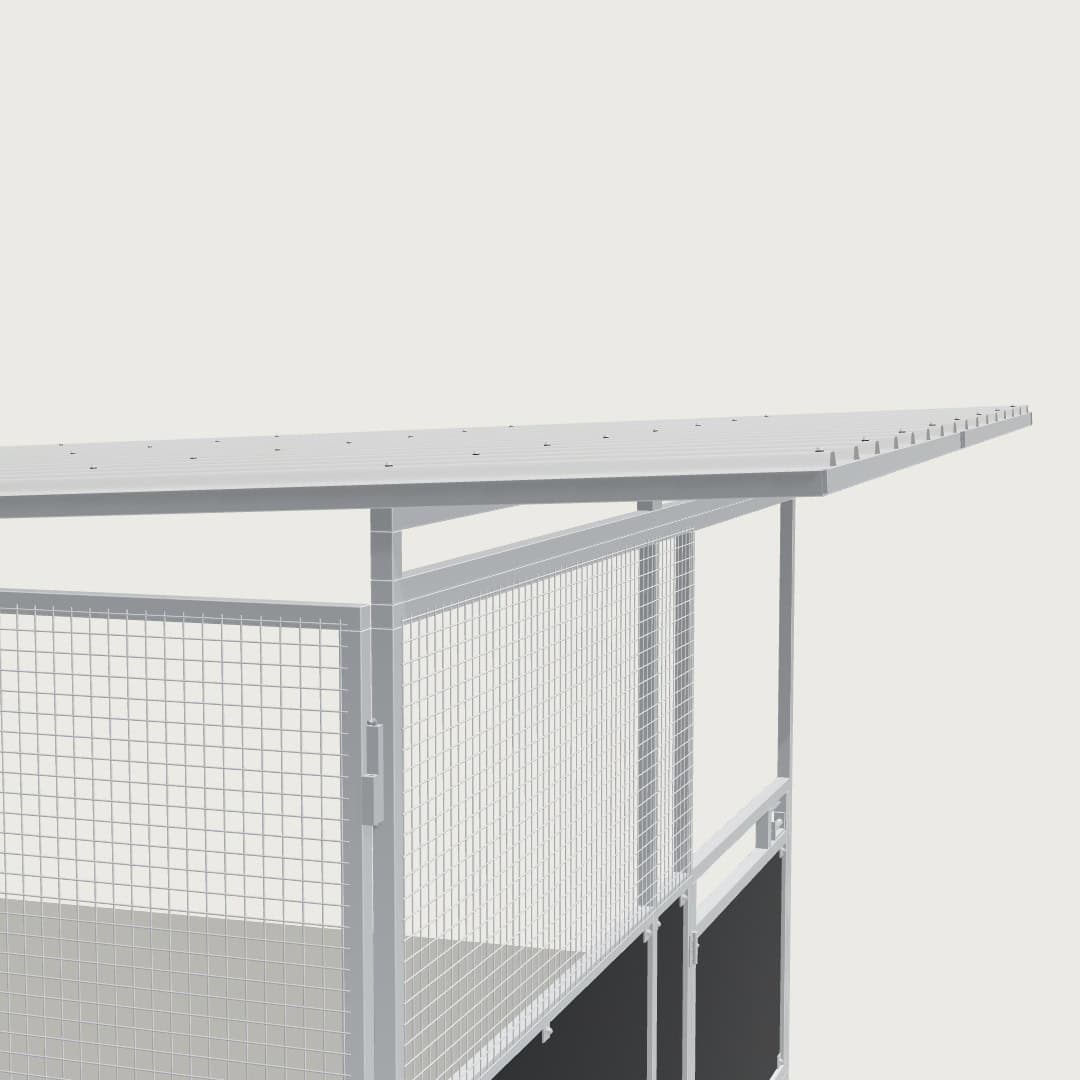

Front roof pitch upgrade for any Guerilla Steel stable or shelter with a 4 m front. Two 2000 × 250 mm panels lift the front of the roof by 250 mm for a ~3° fall, extra airflow and faster rain runoff.

Suits hot or wet climates where a flat roof holds heat or sheds water towards the front. Add it when you order, or fit it to an existing stable or shelter later. Order one set per bay.

Fabricated in Yatala, QLD, from 50 × 50 mm galvanised RHS to match the rest of your frame.

  • Fits: 4 m front stables and shelters

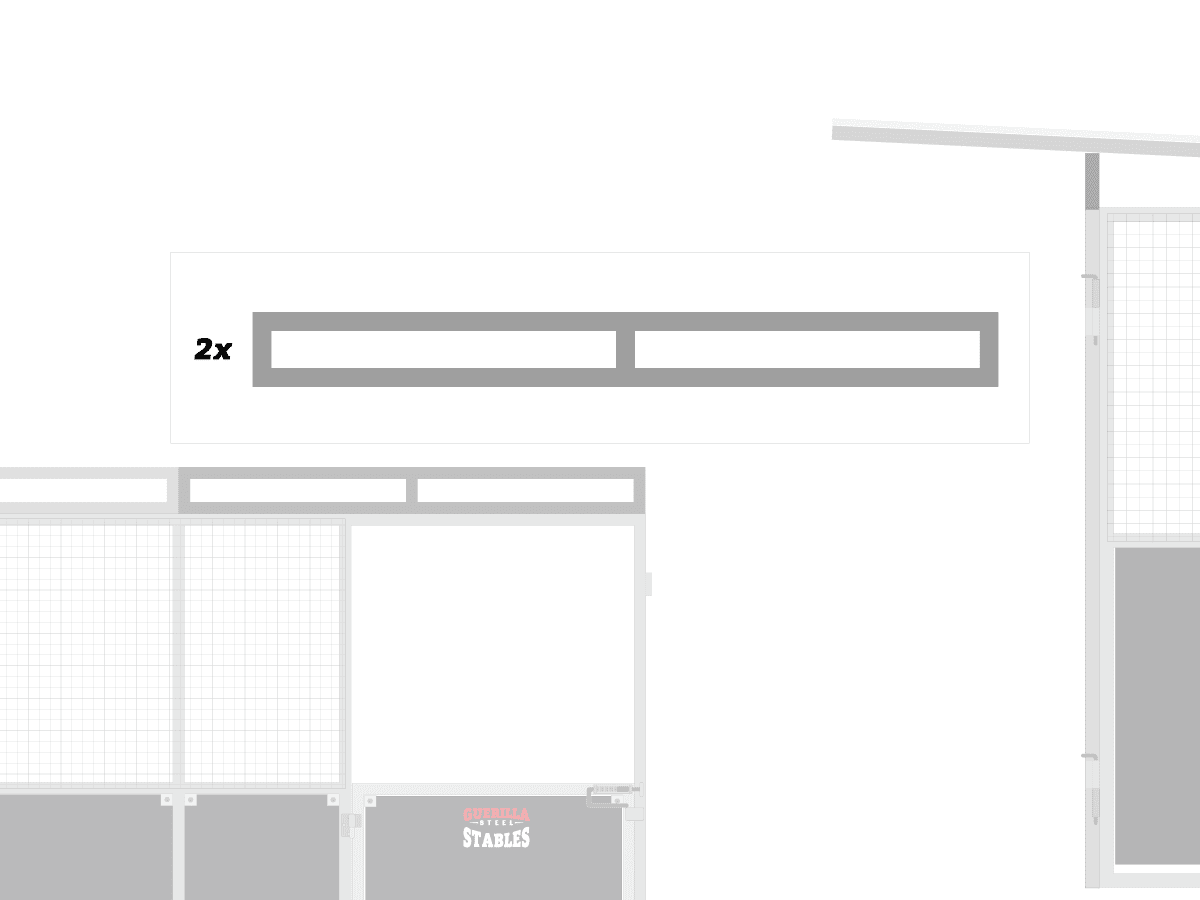

  • Panels: 2 × 2000 mm × 250 mm per bay
  • Front raise: 250 mm
  • Roof pitch: ~3°
  • Frame: 50 × 50 mm galvanised RHS, welded
High Airflow
Large, Standard
Dimensions
2000mm L
×
250mm H
Model
Guerilla Steel
High Airflow

$495.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

4m Bay Pitch Roof Upgrade - Improved Drainage

DIY Install, High Heat, Heavy Rainfall

Guerilla Steel 4m Front Roof Pitch Frame – Per Bay, Improved Fall, Drainage & Airflow (Includes Set of 2x 2000mm x 250mm h Panels per bay)

Stable Panel Specs

Frame & Fabrication
50×50mm

RHS Galvanised Steel

Roof
Pitch Roof

~3° Pitch · 900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative

SPECificatioNS
two bay horse stable with mesh upper panels and wide gates on gravel pad GS-762 / July 2026 ✦ Customised
Brisbane Region
QLD

2 Bay Horse Stable High Airflow

Size
2 Bays
4m x 8m x 2.4 16m
MODEL / Type
High Airflow
Horse Stable
Built
1 Day
Guerilla Team

Guerilla Steel installed a 4m x 8m High Airflow Horse Stable for Ellyn in a single day, completed just before rain arrived. The two-bay design offers 16m² per horse, mesh upper panels for ventilation, extended roof cover, and new standard 1500mm gates with recessed latches for safer, easier handling.

★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Morgan was happy to customise the stable blocks to my needs

Brittany Nitz

Verify review

Morgan and his team are a great bunch of blokes

Toby Cochrane

Verify review

Excellent quality smooth communication and fast service Morgan is obviously knowledgeable

Michelle Marshall

Verify review

Great fabricator works top notch could not be more satisfied with my bbq

Iain Mcintyre

Verify review
↳ More Info

Building Buying & Owning - Stable Panel

Stable Panel, Upgrade FAQs

For still or gentle rain, yes. For wind-driven rain, no. Where you put the shelter, and which way it faces, will make more difference than the overhang.

The roof edge sits about 2.45–2.5m up, and 900mm out from the front. Rain falls at an angle that depends on wind speed. Typical drops fall at about 6–9m/s, so even light wind tilts them noticeably. Learn more about Horse Shelter Weather Protection

The High Airflow series has a roof pitch of approximately 3°, with a front panel extension lifting the roof 200mm above the gate. This adds headroom, improves ventilation through the bay and directs rain runoff to the rear.

Useful for taller breeds, maternity stables and also for warmer and wet climates. The extra airflow helps reduce heat and ammonia build-up around mares and new born foals.

Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.

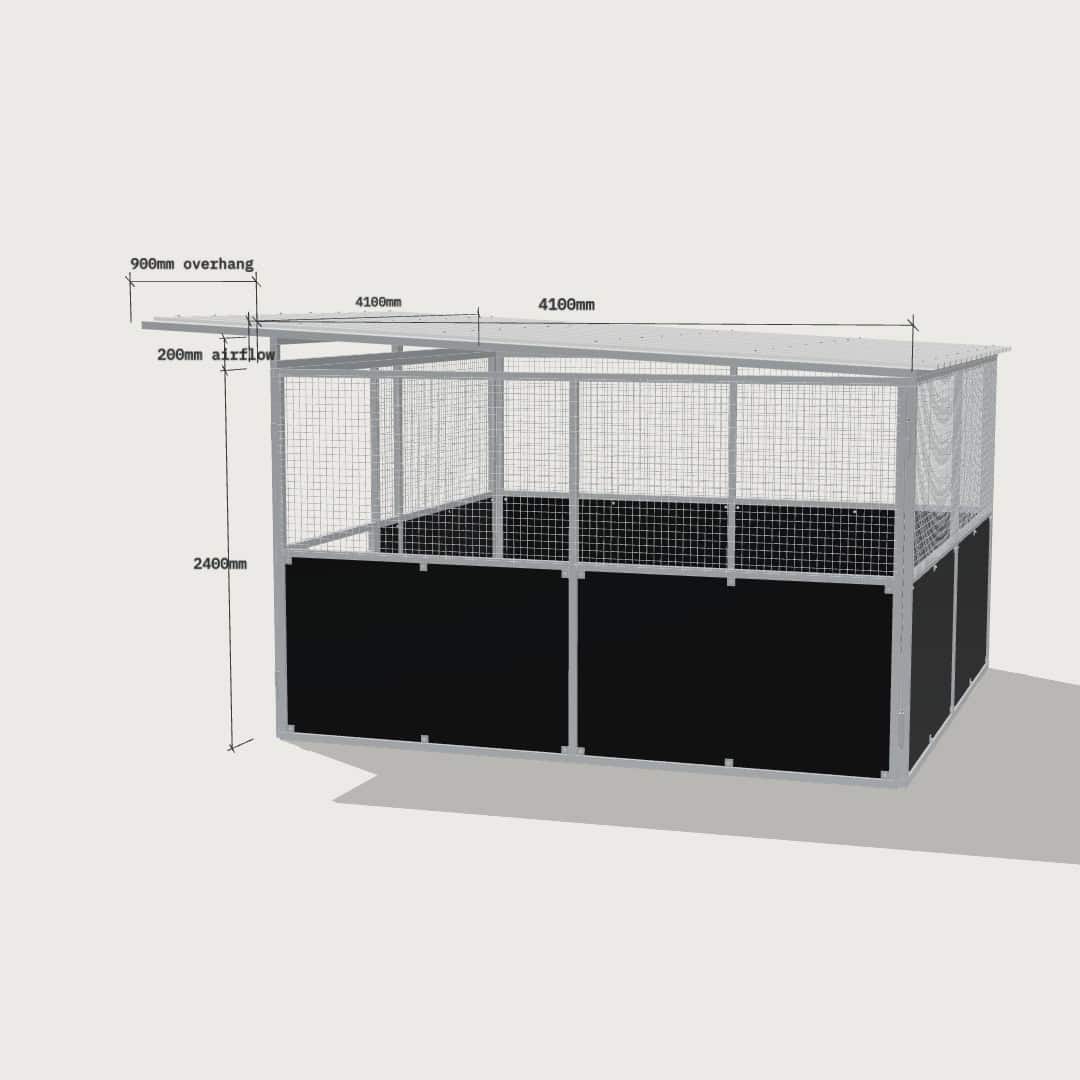

Standard panel frames measure 4000mm long × 2400mm high × 50mm thick. A standard 4m × 4m stable provides 16m² of internal floor space, with an outside frame measurement of 4100mm × 4100mm.

Each adjoining bay shares a dividing panel and adds 4050mm to the overall length: 4000mm for the additional front panel, plus 50mm for the next end or dividing panel.

ConfigurationOutside frame dimensionsInternal floor area
Single bay4100mm × 4100mm16m²
Two adjoining bays8150mm × 4100mm32m²
Three adjoining bays12,200mm × 4100mm48m²

These are frame dimensions. Roof overhangs extend beyond this footprint and need to be allowed for when planning your site.

The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.

If you’re likely to expand, plan the orientation, access and available space from the start.
