Yatala, QLD · Australian steel · Family owned Contact Us or just call · 0405 538 413 Mon–Fri 7–4
Guerilla Steel Stables logo with horse head and steel frame on transparent background
Compare

Stable Model  Comparison & Specification

4–6 Week Delivery
20
Reviews · Facebook · Google

2.4m tall, Aussie galvanised steel See the difference in size, strength and value before you buy

View Detailed Specifications ⭣
Australian Steel
Heavy Duty Galvanised steel
Flat Pack Kits
DIY Friendly
Made in Aust.
Locally Fabricated Stables
↳ Compare Main stable and Shelter Models

Structures & Models

"If you can think it, we can make it."
— Morgan, Founder
front view of 3-bay horse stable with feed hatch doors and galvanised mesh panels
Modular Standalone Retrofit

Horse Stable

From $4,950.00
Australian-made horse stables with prefabricated Aust. steel panels. Choose a single bay or expandable stable run, with practical layouts for everyday horse care.
Long horse shelter with open bays and pitched roof on a timber site
Modular Standalone Retrofit

Paddock Shelter

From $3,850.00
Open-front paddock shelters give horses shade and weather cover with freedom to come and go. Australian-made steel construction, with rail or ply/mesh panel options.
twin bay horse stable panels fitted inside an 8m wide shed retrofit
Modular Standalone Retrofit

Stable Panel

From $495.00
Build out your shed or extend your stables with individual Australian-made steel panels. Choose front, side and dividing panels with black ply or mesh.
Modular Standalone Retrofit

Upgrade

From $110.00
Build it your way - upgrade stables with High Airflow panels, yoke gates, Dutch gates, feed gates and roof extensions. Practical options for ventilation, feeding and weather cover.
Wide steel gates with vertical bars and mesh panels for stable access
New Wider Gates

Mid 2026 Updated Standard Gate Specs!

Included as standard base model build for all stable front gate panels. Wider 1500mm gate with a recessed latch.
Easier access, safer handling.
↳ Stable Models

Stable Models

Every model is a starting point, Sizes, gates, panels and #bays all customise.

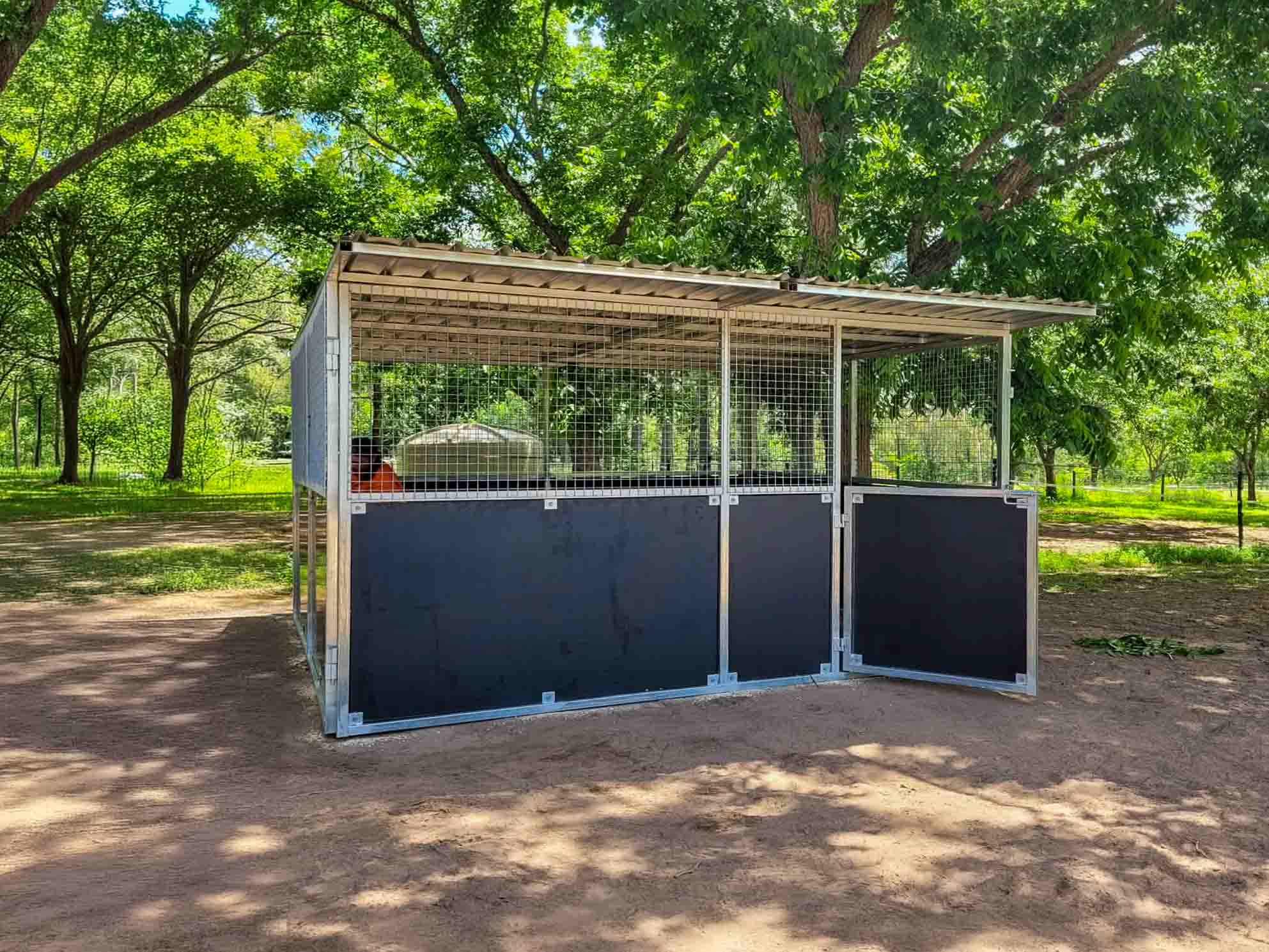

standard 4m by 4m steel horse stable with mesh panels and ply kickboards under shaded trees
Modular Standalone Retrofit

Base Model

From $4,950.00
Our standard stable configuration combines fully welded Australian steel panels with black ply lower sections and steel mesh above. A practical starting point, with options to expand or upgrade stalls later.
two bay horse stable with mesh upper panels and wide gates on gravel pad
Modular Standalone Retrofit

High Airflow

From $495.00
The High Airflow Series introduces a front riser panel to modify the roof pitch. Optimized for maximum ventilation and temperature control in hot climates.
completed three-bay stable with tack room showing mesh top panels and solid ply walls
Modular Standalone Retrofit

Tack Room

From $3,960.00
Keep saddles, bridles, rugs and feed close to your horses in an enclosed, lockable room. Choose an adjoining tack room within your stable layout or a separate standalone setup.
✎
Build it your way
Find the stable or shelter you need
Six questions about your horses and your block, and you'll get a recommendation with a real price, on screen, same page, no email.
Size? # Bays? Price?
↳ BAY SIZES

Range Sizing

Every model is a starting point, Sizes, gates, panels and #bays all customise.

Standard

Guerilla Steel Stables standard base stable, 4 × 4 m inside, galvanised 50×50 SHS panels, black ply lower, welded mesh upper, stable front with swing gate (1500 × 1200 mm gate with slam latch), white Trimdek roof with 900 mm front overhang.
Size
L 4000mm
X
W 4000mm
X
H 2400mm
Inside
16m²
FRom
$4,950.00
Install
$550 /bay
Single horse First Stable Ponies

Large

Guerilla Steel Stables large base stable, 4 × 5 m inside, galvanised 50×50 SHS panels, black ply lower, welded mesh upper, stable front with swing gate (1500 × 1200 mm gate with slam latch), white Trimdek roof with 900 mm front overhang.
Size
L 4000mm
X
W 5000mm
X
H 2400mm
Inside
20m²
FRom
$7,480.00
Install
$700 /bay
larger breeds training areas Ponies

X Large

Guerilla Steel Stables extra large base stable, 5 × 5 m inside, galvanised 50×50 SHS panels, black ply lower, welded mesh upper, stable front with swing gate (1500 × 1200 mm gate with slam latch), white Trimdek roof with 900 mm front overhang.
Size
L 5000mm
X
W 5000mm
X
H 2400mm
Inside
25m²
FRom
$8,250.00
Install
$850 /bay
Breeding injury recovery professional use
↳ Base Model SpecificationS

The technical details, if you want them.

Need just the technical details?
Download the full Base Model Specification Sheet, the same info shown below
 in PDF for planning or builder discussions.

Structure

2.4m Galvanised Steel Frame

Fully welded 50x50mm RHS galvanised tube, made locally. The extra height means better airflow and less heat stress through summer.

50x50mm RHS 2.4m high Fully welded Galvanised Made locally
Access New Wider Size

Half-Height Stall Swing Gate

Included as standard all new Wider 1500mm x 1200mm high — clear sightlines, secure containment, easy daily handling.

Standard inclusion 1500 x 1200mm Recessed SLAM Latch Sliding door option Dutch-style Option YOKE-style Option
Panels

Gal Mesh & Form Ply Sides

17mm black form ply below for weather protection, 4mm heavy-duty galvanised mesh above for airflow and visibility.

17mm form ply 4mm gal mesh Full mesh option Solid ply option CAttle RAils
Anchoring

Anchor Kits for Every PAD TYPE

Recommended on every install, and especially on non-concrete sites. Quick to fit, easy to remove, fully reusable.

Concrete Road base Gravel Prepared grass Bolt-down plates
Roof

Monoclad® Coated Steel Roof

Stramit® Monoclad or Lysaght Trimdek®, with a 900mm front overhang putting shade and rain cover right where the horses walk in.

900mm front overhang 100mm rear overhang Flush side finish Trimdek® alternative
Finish

DuraGal® Steel, Easy to Maintain

Locally fabricated and top-coated after welding. An annual once-over with Cold Gal keeps it strong — see the stable maintenance guide.

DuraGal® steel Locally fabricated Professional top coat Annual touch-up
↳ Free Download

Download Your Free Stable Buying Guide

  • Questions to ask your stable builder
  • Stable system specifications
  • Quote planner

Downloads Count:686 (last download 7 hrs ago)

No spam — just expert tips, offers, and updates from your local stable builders. View our Privacy Policy.
