GS-AIRF-STD-1

High Airflow 1 Bay Standard Horse Stable Kit

Horse Stable

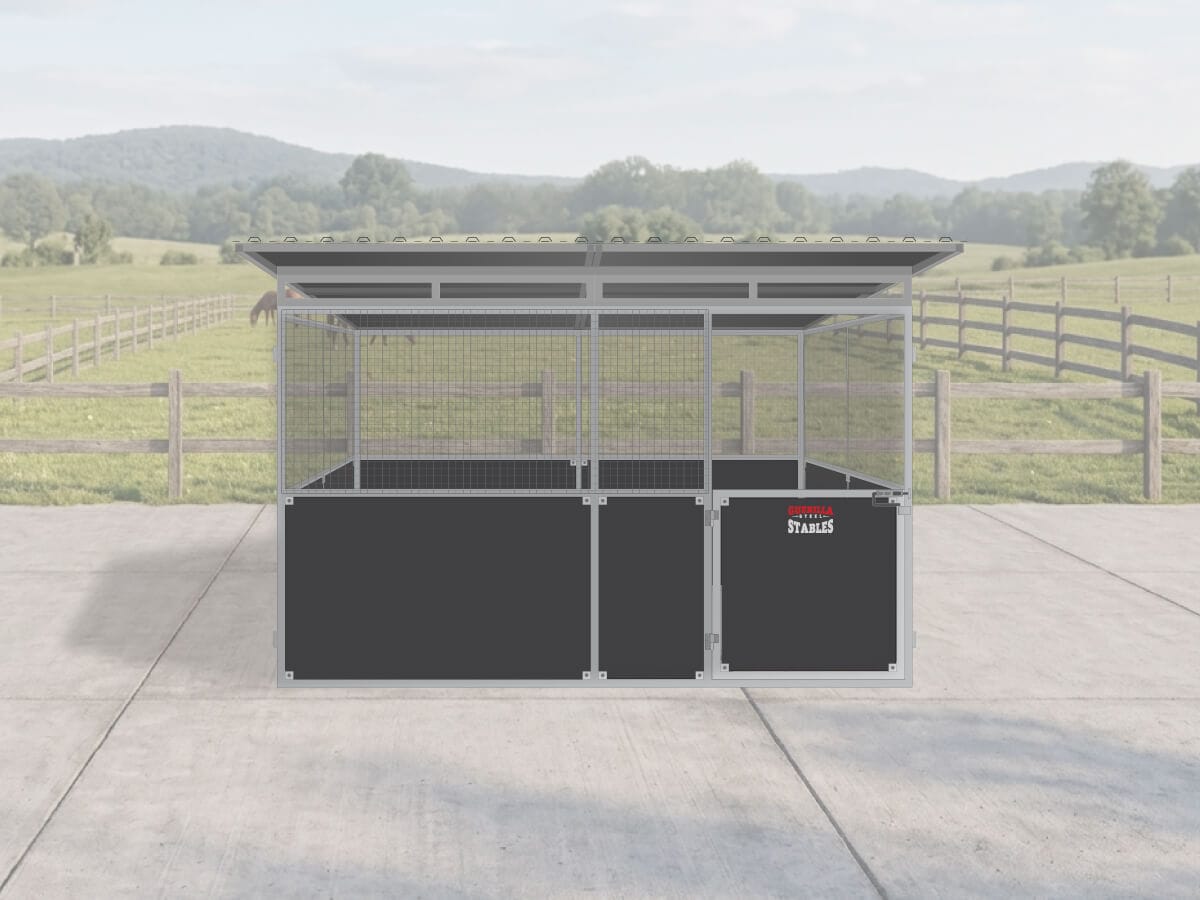

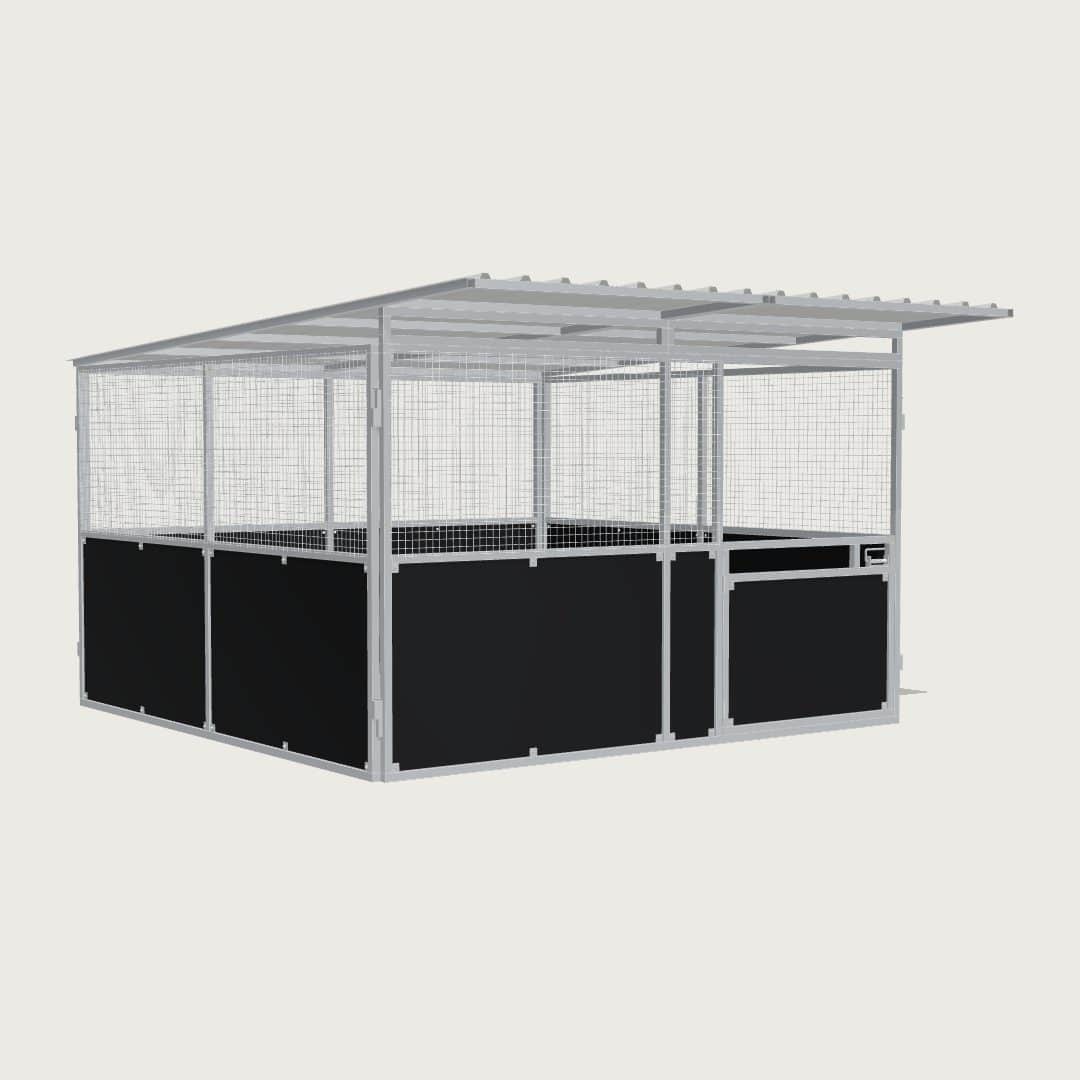

Single-bay High Airflow horse stable kit for hot summers and wet seasons. The pitched roof lifts the front for extra ventilation and faster rain runoff over a 16 m² bay.

A good fit for one horse on a small property, or a horse that struggles with heat. The front pitch frame raises the roof to 2.65 m at the front and 2.4 m at the rear, so hot air escapes and rain falls away from the gate.

Panels are cut and welded in our Yatala, QLD workshop from 50 × 50 mm galvanised RHS. Supplied as a flat-pack kit for DIY assembly, or installed by our team in South East QLD and Northern NSW. Start with one bay and add more as your property grows.

  • Bays: 1 × 4 m front
  • Internal floor area: 16 m² (4 × 4 m)
  • Overall frame: approx. 4.1 m × 4.1 m
  • Height: 2.4 m rear, 2.65 m front

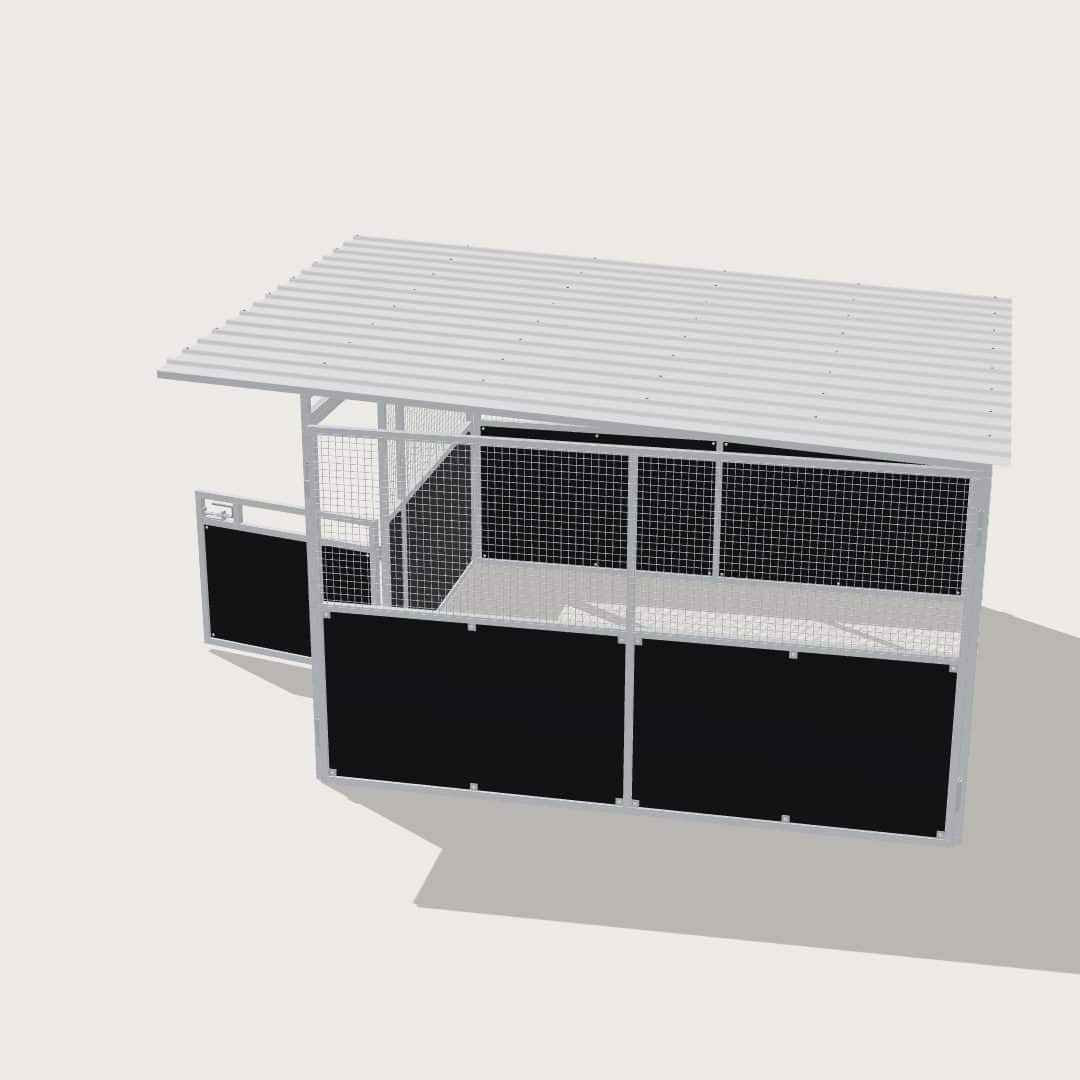

  • Roof: ~3° pitch, trapezoidal ribbed steel sheeting (Trimdek® or Monoclad® profile), 900 mm front and 100 mm rear overhang

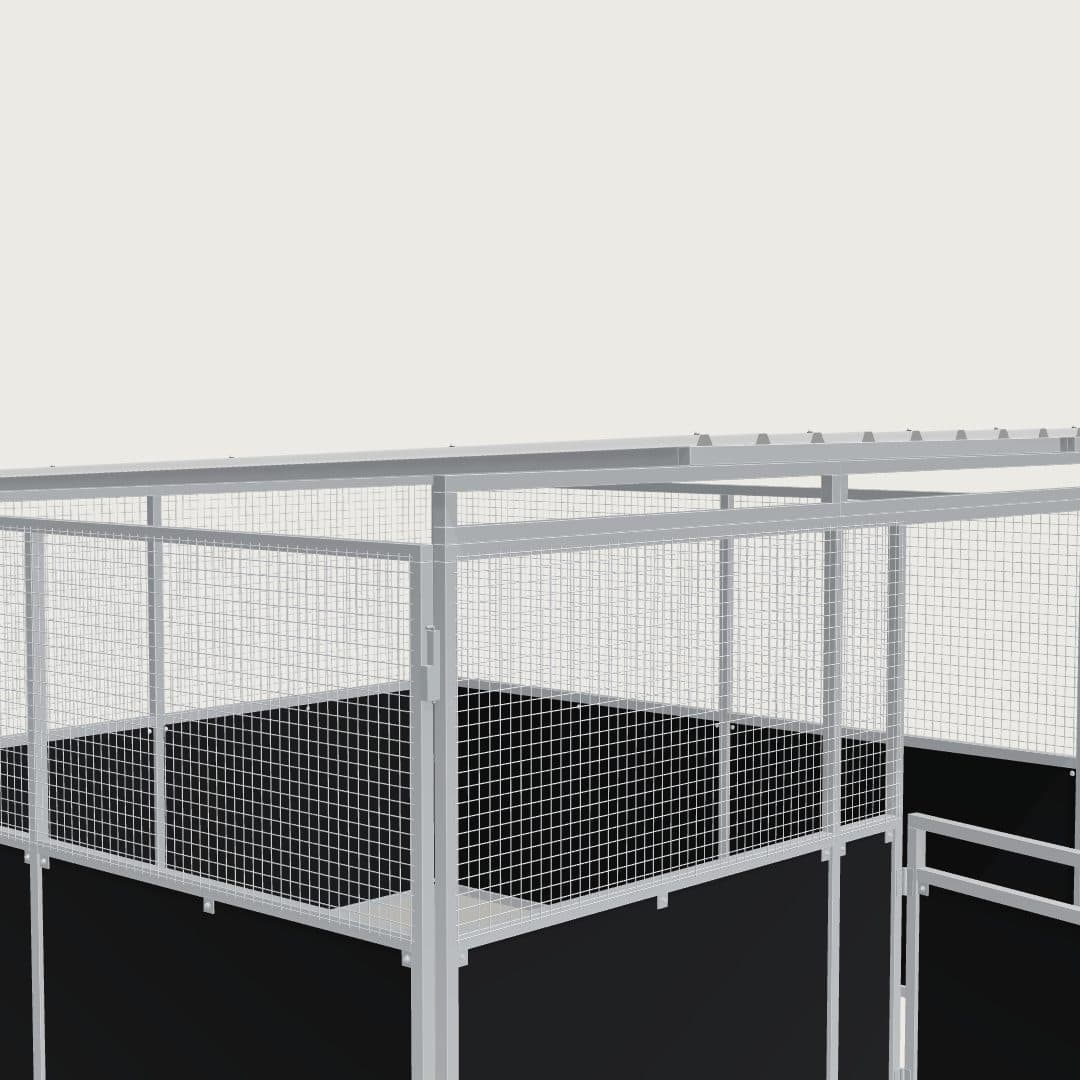

  • Panels: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gate: 1500 × 1200 mm straight swing gate with recessed slam latch

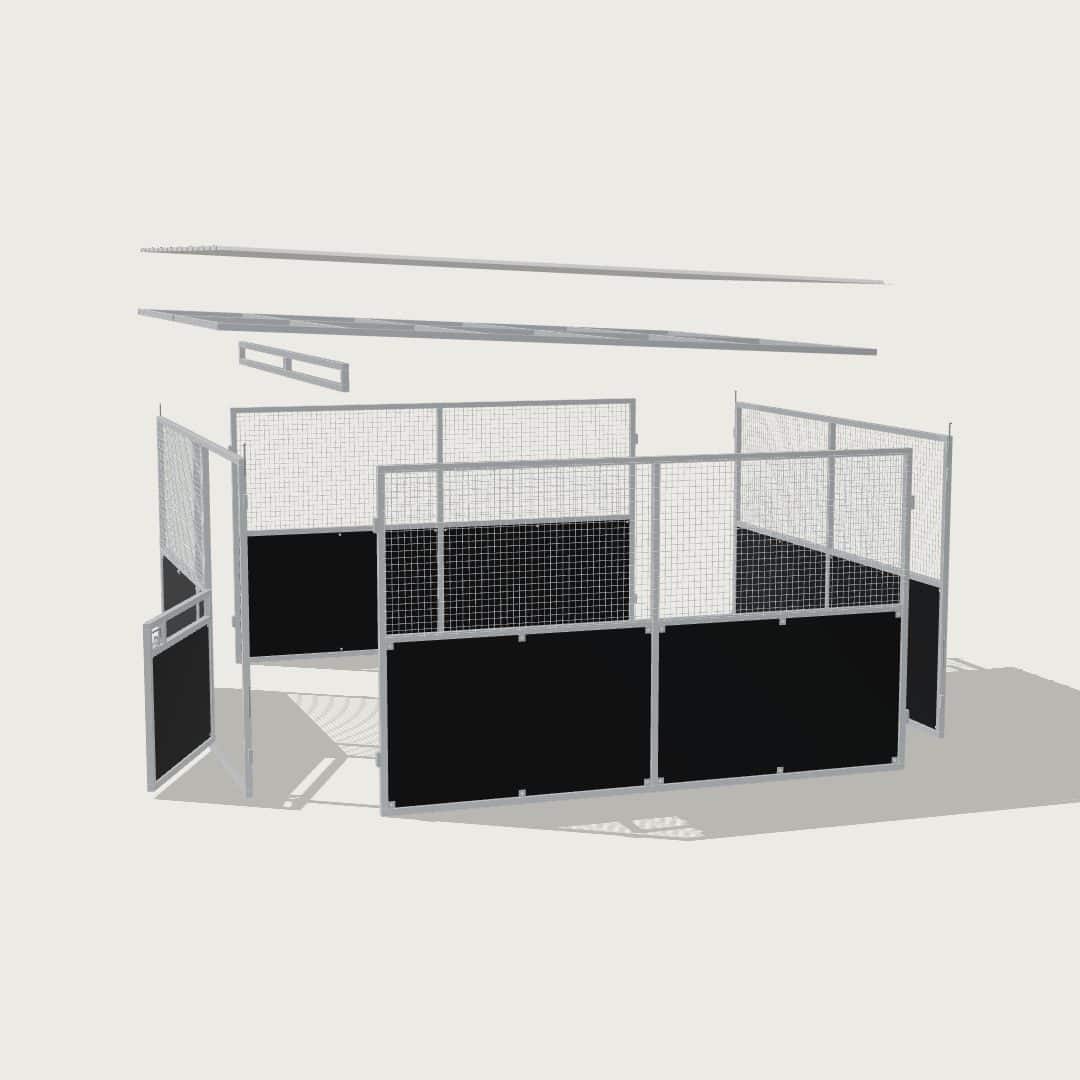

  • Frame: 50 × 50 mm galvanised RHS, welded wall panels joined with cattle drop pins and sleeves
High Airflow
Standard

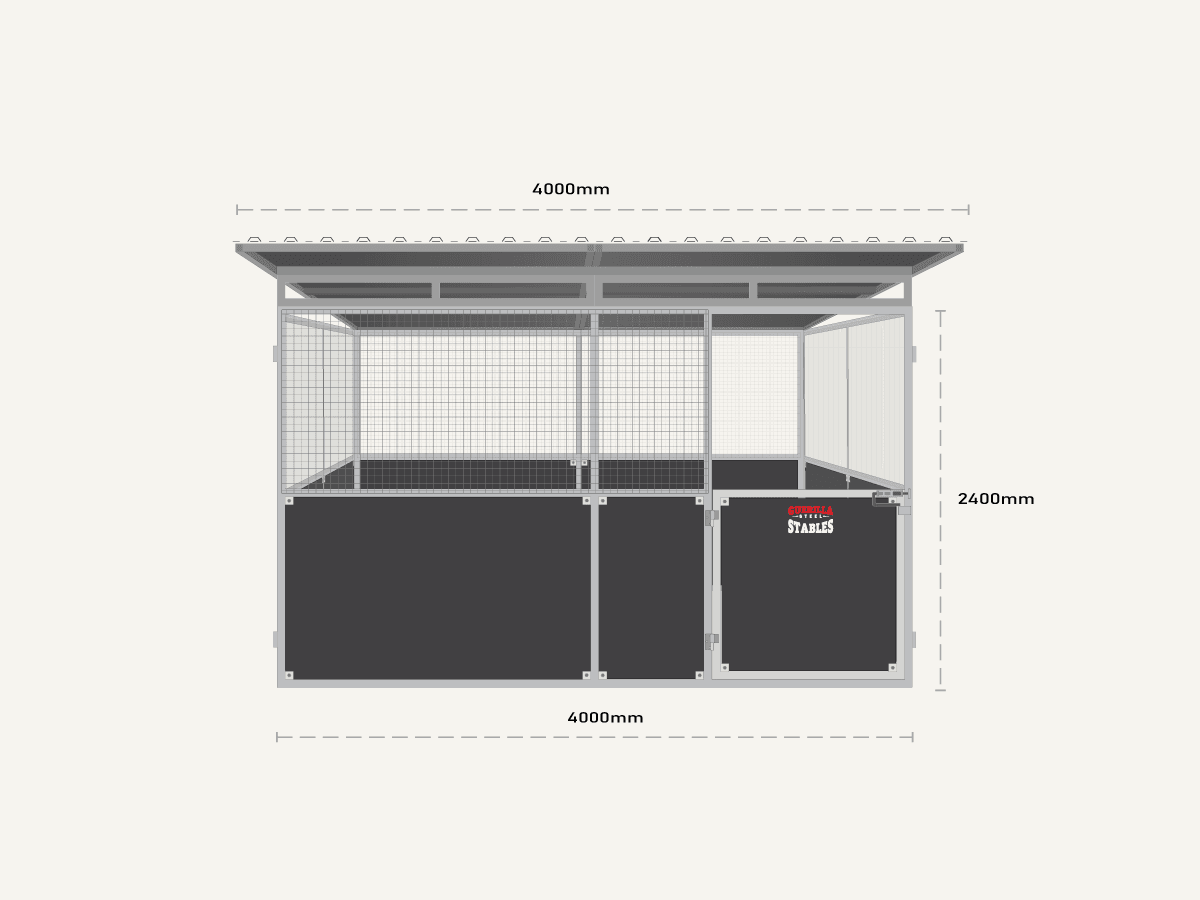

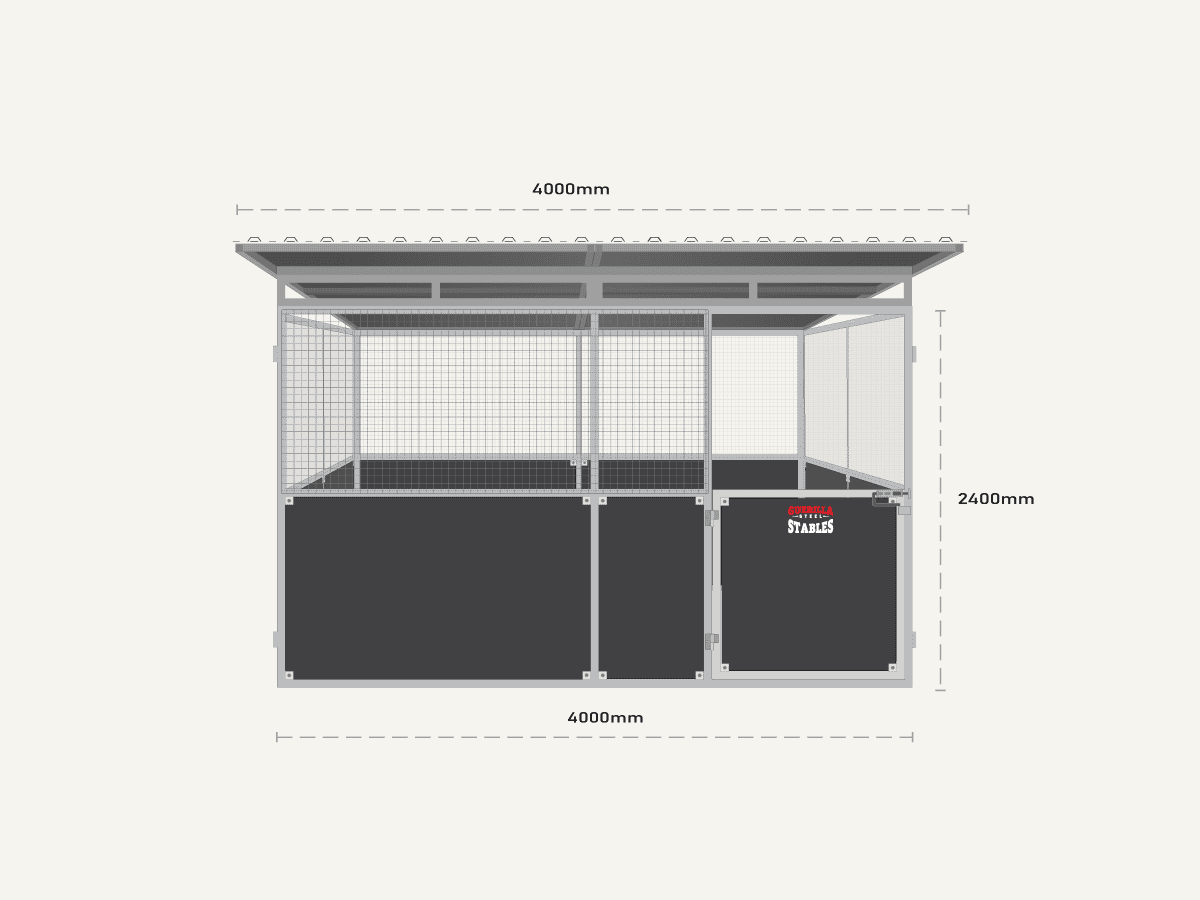

Dimensions
4000mm L
×
4000mm D
×
2400mm H
STALL Count
1-bay
Inside
16m²
Model
Guerilla Steel
High Airflow
Installation
550/per bay

$5,445.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

Extra Ventilation for Heat-Sensitive and Respiratory Horses

High Heat, Small Property, Heavy Rainfall

Guerilla Steel 4m x 4m High Airflow Stable – 3° Pitch Roof, 2.65m Front Height

Horse Stable Specs

SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Roof
Pitch Roof

~3° Pitch · 900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
two bay horse stable with mesh upper panels and wide gates on gravel pad GS-762 / July 2026 ✦ Customised
Brisbane Region
QLD

2 Bay Horse Stable High Airflow

Size
2 Bays
4m x 8m x 2.4 16m
MODEL / Type
High Airflow
Horse Stable
Built
1 Day
Guerilla Team

Guerilla Steel installed a 4m x 8m High Airflow Horse Stable for Ellyn in a single day, completed just before rain arrived. The two-bay design offers 16m² per horse, mesh upper panels for ventilation, extended roof cover, and new standard 1500mm gates with recessed latches for safer, easier handling.

★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Retrofit 4 stables for me into my large farm shed. The work was excellent 100% Aussie steel and hand made wow

Sherelle French

Verify review

Highly recommend Morgan and the team communication was easy prices are competitive

Ellyn Parker

Verify review

Highly recommend morgan and his boys they did a awesome job

Lisa Jeffs

Verify review

Morgan made some prototype frames for me that are perfect

Dan Wills

Verify review
↳ More Info

Building Buying & Owning - Horse Stable

Horse Stable FAQs

For still or gentle rain, yes. For wind-driven rain, no. Where you put the shelter, and which way it faces, will make more difference than the overhang.

The roof edge sits about 2.45–2.5m up, and 900mm out from the front. Rain falls at an angle that depends on wind speed. Typical drops fall at about 6–9m/s, so even light wind tilts them noticeably. Learn more about Horse Shelter Weather Protection

The High Airflow series has a roof pitch of approximately 3°, with a front panel extension lifting the roof 200mm above the gate. This adds headroom, improves ventilation through the bay and directs rain runoff to the rear.

Useful for taller breeds, maternity stables and also for warmer and wet climates. The extra airflow helps reduce heat and ammonia build-up around mares and new born foals.

A concrete slab is not required for every stable installation. The system can also be installed on compacted road base, crusher dust, gravel or level grass, provided the site is level and drains properly. Concrete is a good option for high traffic areas and gives you a very stable, low movement base. For grass or gravel installations, specialised ground anchors can be used to secure the stable. The biggest priority is good site preparation. A level base with effective drainage will make installation easier and help prevent movement, pooling water and ongoing maintenance issues.

Yes. The modular panel system means larger stable setups can be dismantled, transported and reassembled at another property. Even when the stable has been anchored to a slab, the fixings can be removed so the panels can be relocated. This makes the system more flexible than a permanently built structure and can also help retain resale or relocation value if your property needs change

It depends on your base. For grass, road base, gravel or crusher dust, use a ground anchor kit. Concrete footings at anchor points can add support without requiring a full slab.

For a concrete slab, use suitable concrete anchors such as Dynabolts instead. Shed conversions may also need fixings to existing posts or walls, depending on the panel layout.
