GS-AIRF-STD-3

High Airflow 3 Bay Standard Horse Stable Kit

Horse Stable

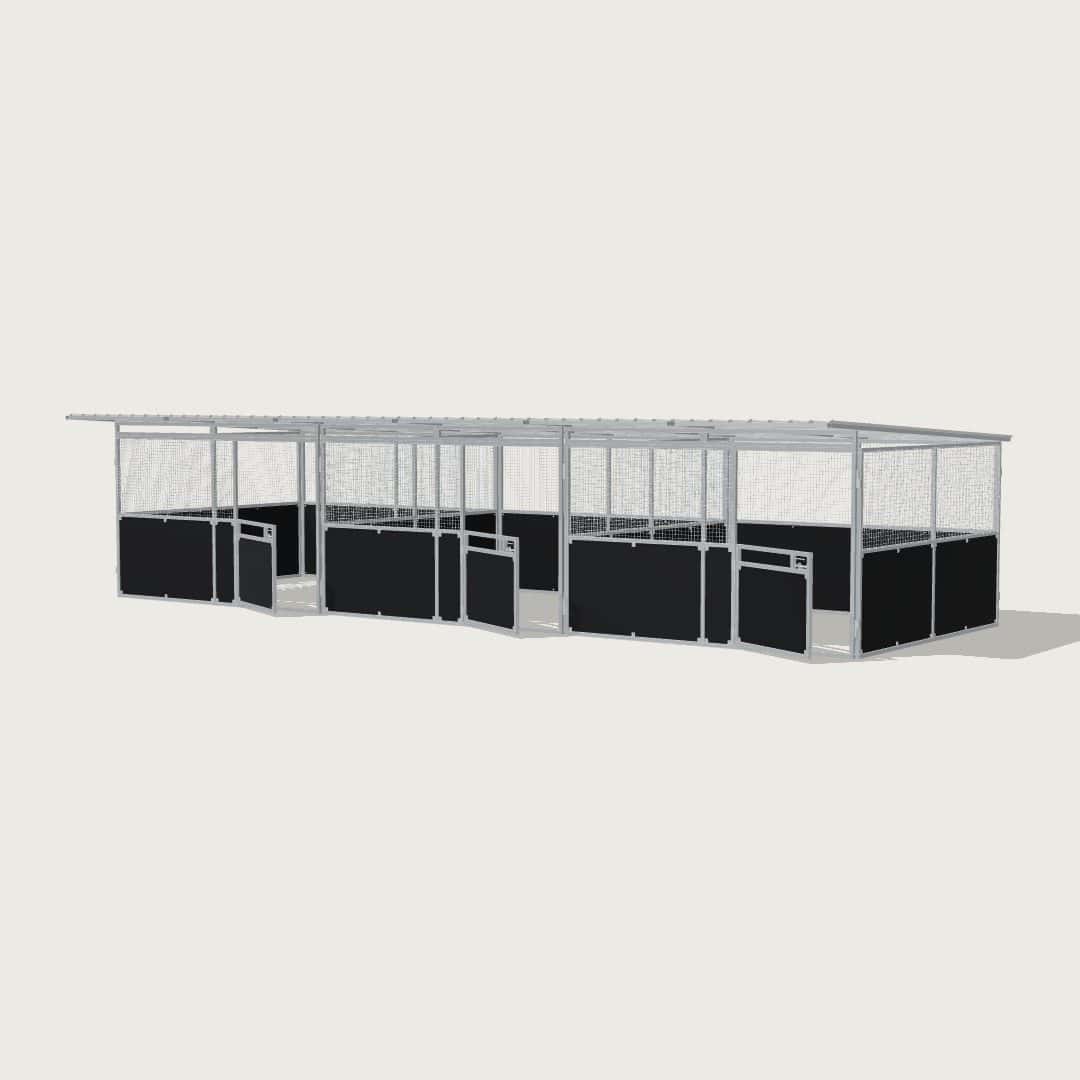

Three-bay High Airflow horse stable kit for hot summers and wet seasons. A pitched roof lifts the front for extra ventilation and faster rain runoff across 48 m² of stabling.

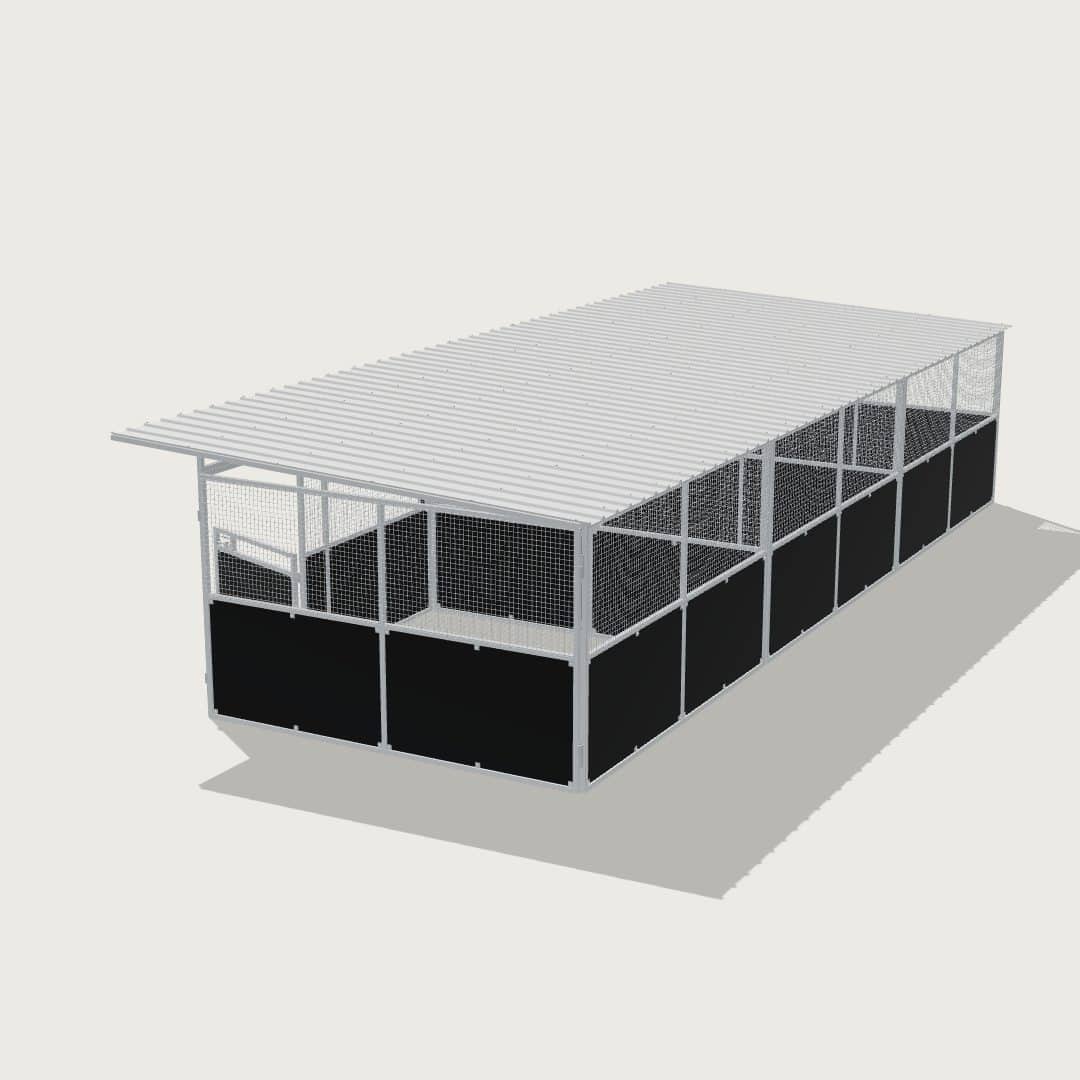

Three 16 m² bays under one continuous roof suit agistment, small studs or anyone stabling several horses side by side. The front pitch frame raises the roof to 2.65 m at the front and 2.4 m at the rear, so hot air escapes and rain falls away from the gates.

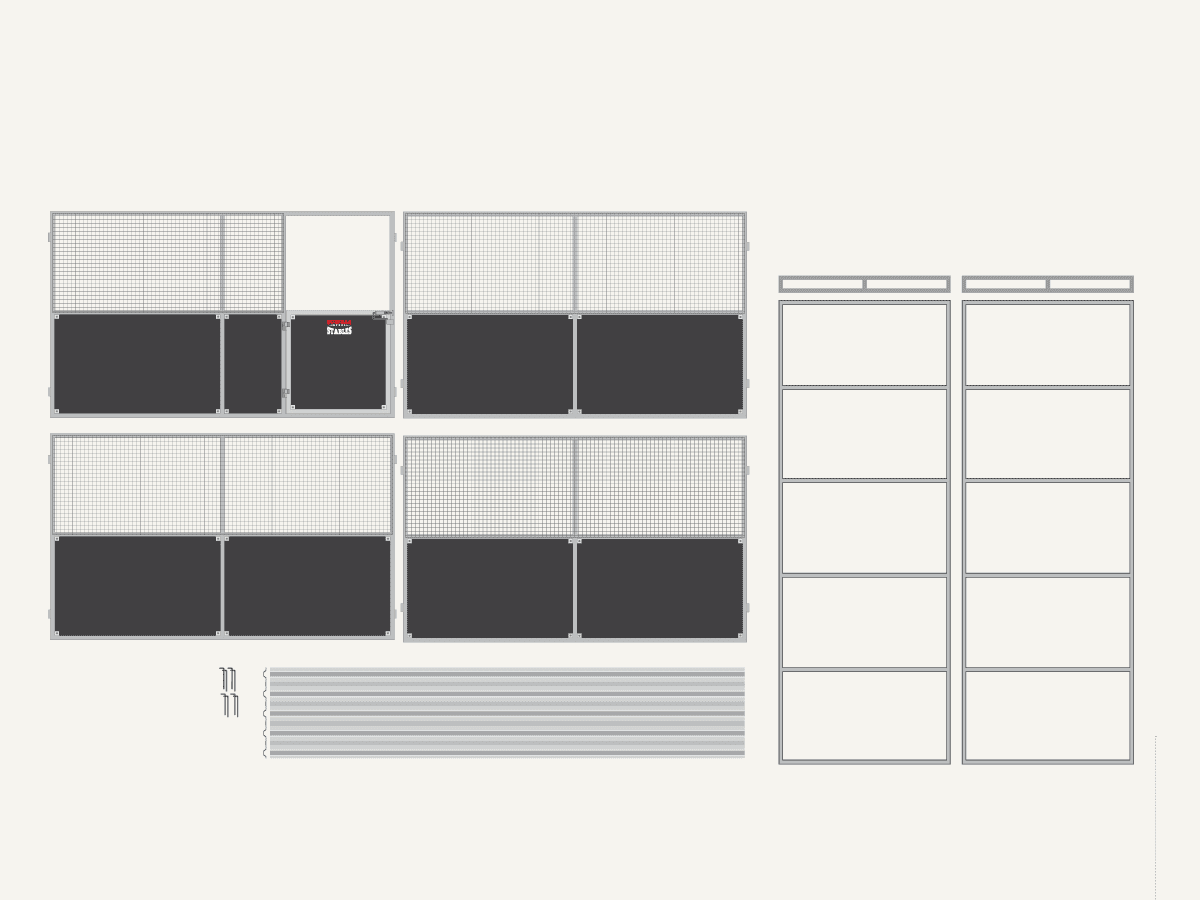

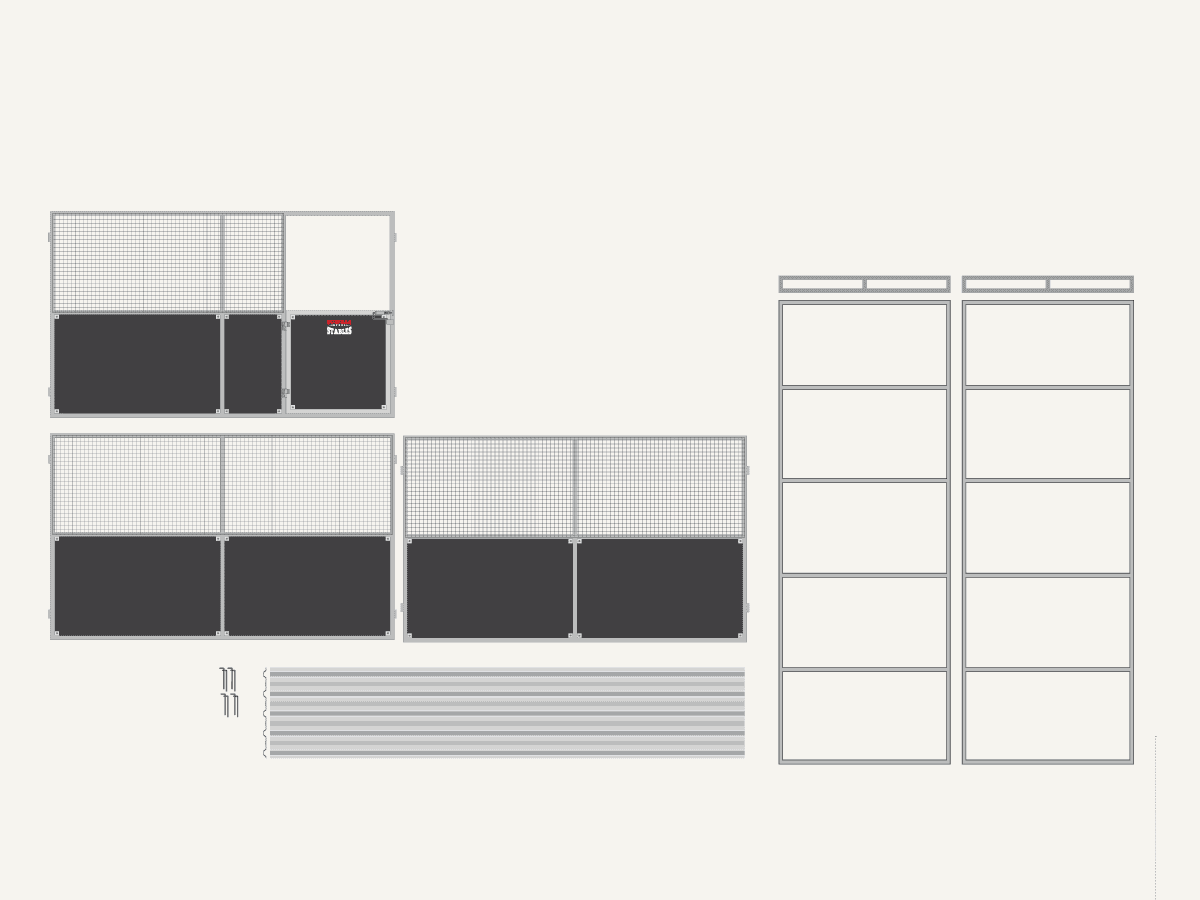

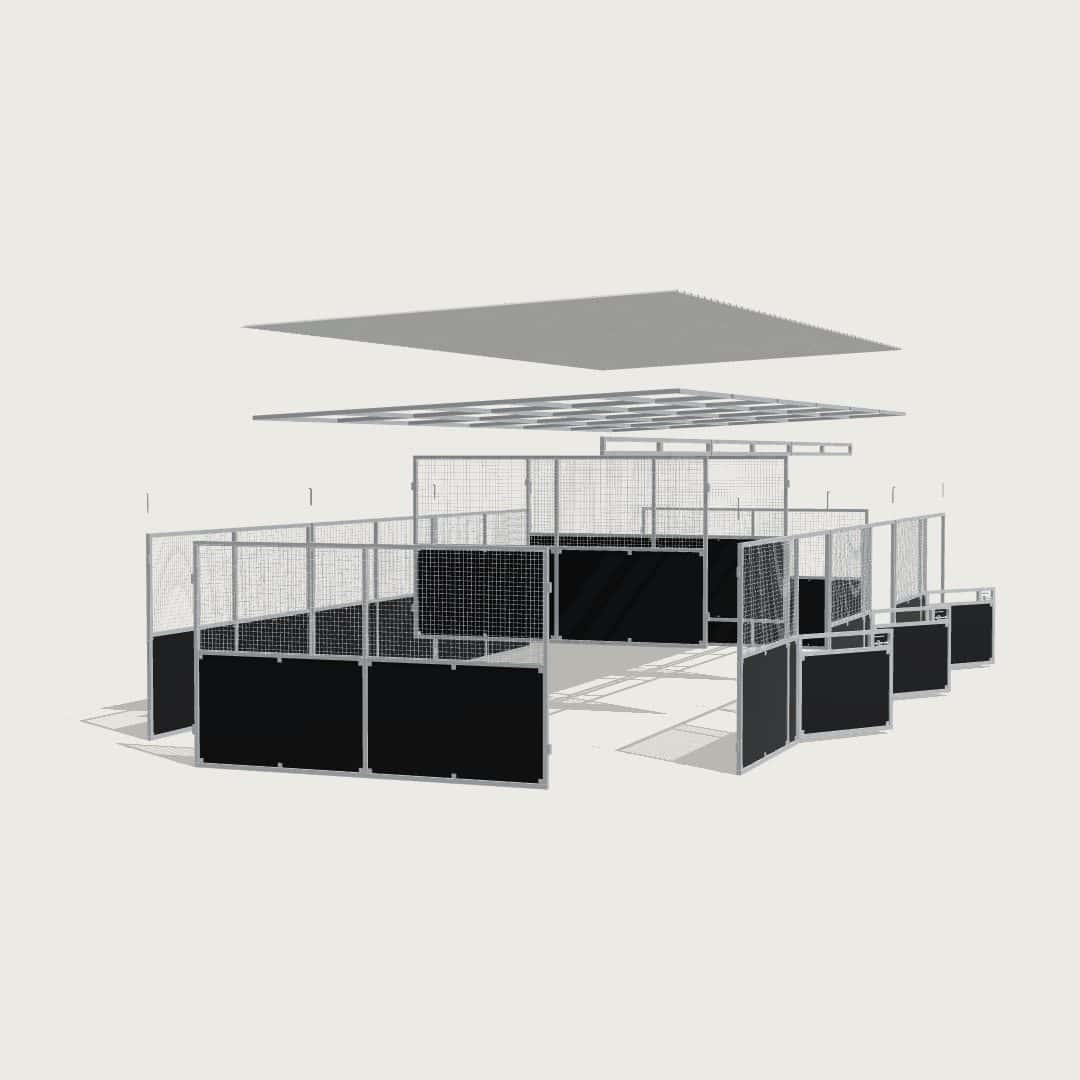

Prefabricated panels made locally in QLD from 50 × 50 mm galvanised RHS. Ply lower panels take the knocks while galvanised mesh above keeps air moving. Supplied as a flat-pack kit for DIY assembly, or installed by our team in South East QLD and Northern NSW.

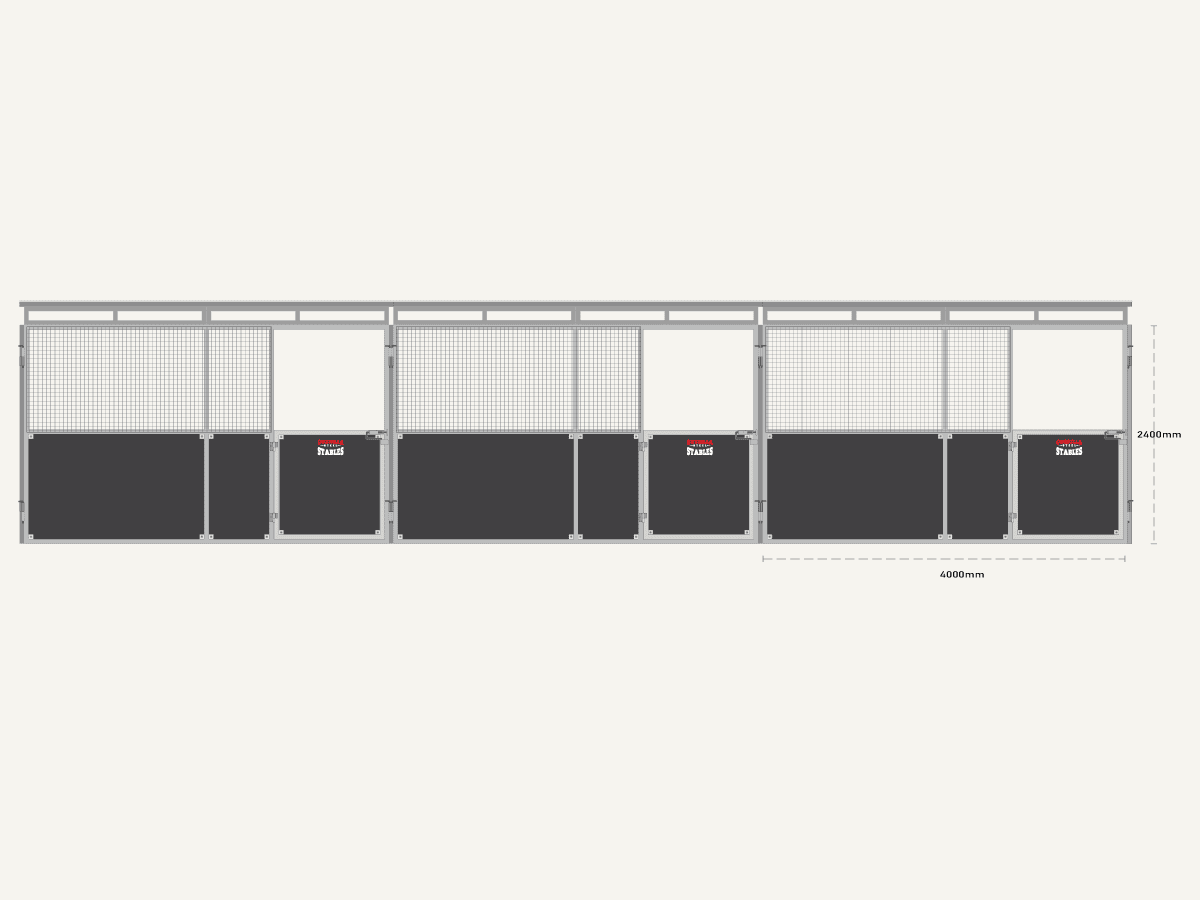

  • Bays: 3 × 4 m front
  • Internal floor area: 48 m² (3 × 16 m²)
  • Overall frame: approx. 12.2 m × 4.1 m
  • Height: 2.4 m rear, 2.65 m front

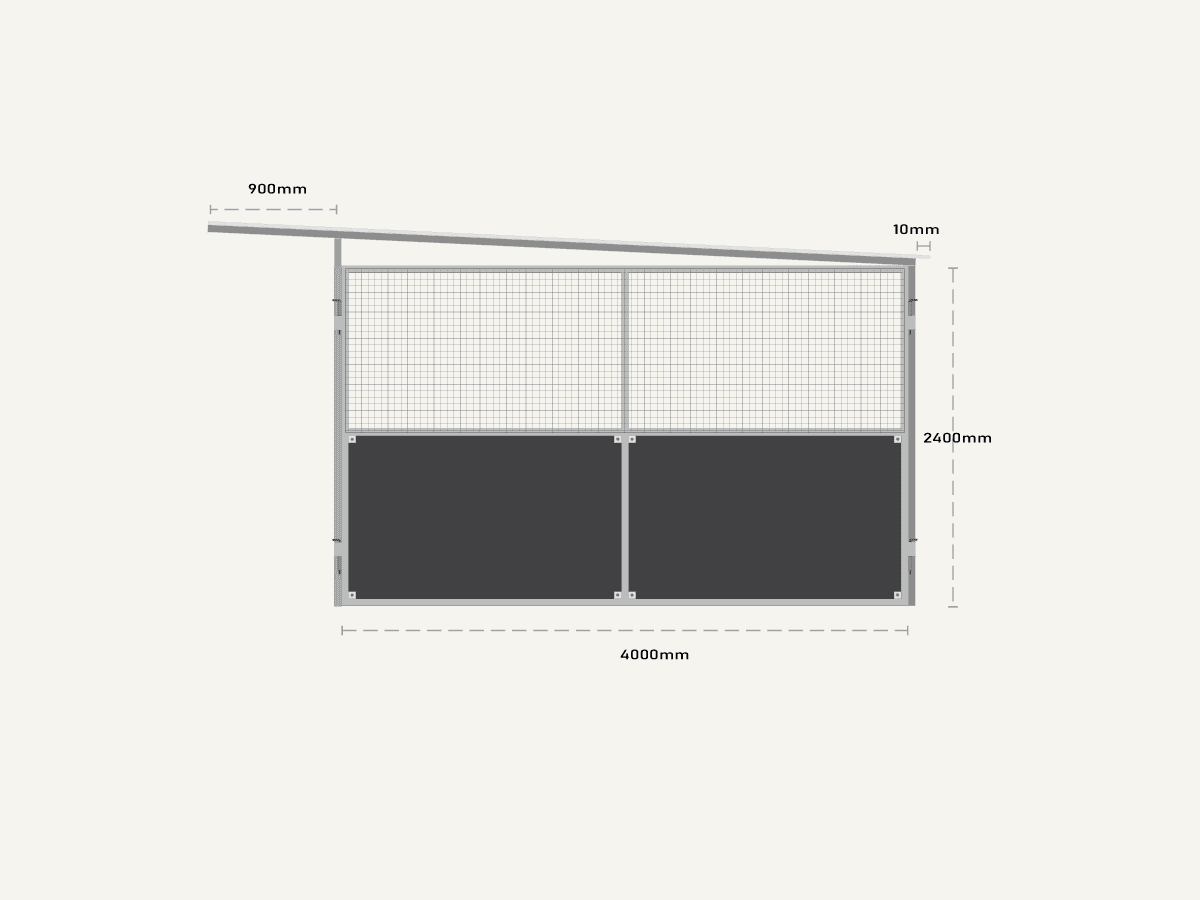

  • Roof: ~3° pitch, trapezoidal ribbed steel sheeting (Trimdek® or Monoclad® profile), 900 mm front and 100 mm rear overhang
  • Panels: 17 mm form ply lower, 4 mm galvanised mesh upper

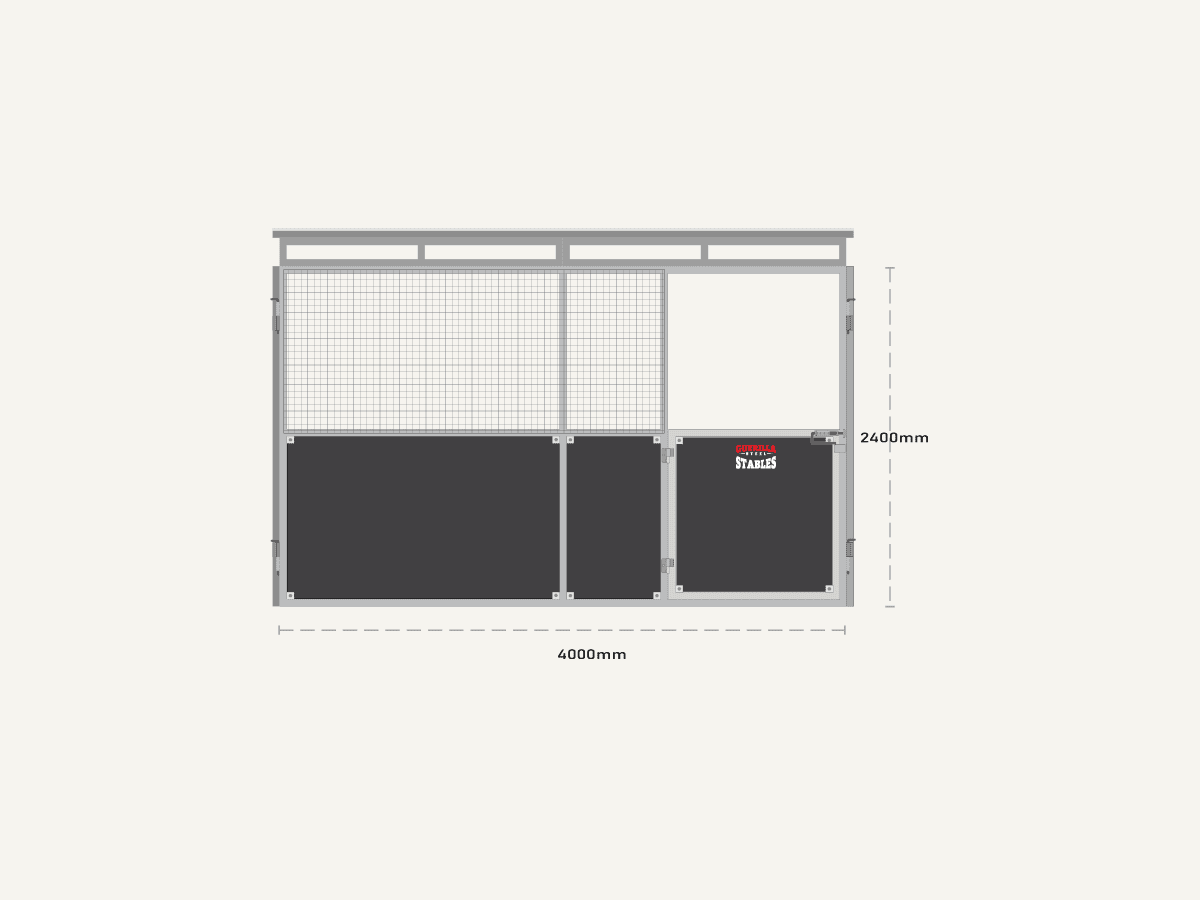

  • Gates: 1500 × 1200 mm straight swing gate with recessed slam latch, one per bay
  • Frame: 50 × 50 mm galvanised RHS, welded wall panels joined with cattle drop pins and sleeves
High Airflow
Standard
Dimensions
12000mm L
×
4000mm D
×
2400mm H
STALL Count
3-bay
Inside
48m²
Model
Guerilla Steel
High Airflow
Installation
550/per bay

$15,235.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

Extra Ventilation for Heat-Sensitive and Respiratory Horses

High Heat, Small Property, Heavy Rainfall

Three-bay High Airflow horse stable kit for hot summers and wet seasons. A pitched roof lifts the front for extra […]

Horse Stable Specs

SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Roof
Pitch Roof

~3° Pitch · 900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
High airflow stable interior showing six stall bays with timber rails and ground anchored frame GS-547 / August 2026 ✦ Customised
Moreton Bay
QLD

High Airflow Double Row Horse Stable with 6 Stalls

Size
3 Bays
Guerilla Team
MODEL / Type
High Airflow
Horse Stable
Built
2 days
Guerilla Team

Six-stall horse stable built across two 3-bay High Airflow rows on a Moreton Bay property, installed directly on grass using ground anchors instead of a concrete slab. Completed in two days for $31,130 including GST, featuring extra-wide gates with recessed latches, ideal for agistment properties and breeders avoiding earthworks.

★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Retrofit 4 stables for me into my large farm shed. The work was excellent 100% Aussie steel and hand made wow

Sherelle French

Verify review

Highly recommend Morgan was so great to deal with

Candice Stephens

Verify review

Morgan and his team very skilled and knowledgeable in fabrication

Geoff Mills

Verify review

Excellent quality smooth communication and fast service Morgan is obviously knowledgeable

Michelle Marshall

Verify review
↳ More Info

Building Buying & Owning - Horse Stable

Horse Stable FAQs

For still or gentle rain, yes. For wind-driven rain, no. Where you put the shelter, and which way it faces, will make more difference than the overhang.

The roof edge sits about 2.45–2.5m up, and 900mm out from the front. Rain falls at an angle that depends on wind speed. Typical drops fall at about 6–9m/s, so even light wind tilts them noticeably. Learn more about Horse Shelter Weather Protection

The High Airflow series has a roof pitch of approximately 3°, with a front panel extension lifting the roof 200mm above the gate. This adds headroom, improves ventilation through the bay and directs rain runoff to the rear.

Useful for taller breeds, maternity stables and also for warmer and wet climates. The extra airflow helps reduce heat and ammonia build-up around mares and new born foals.

A concrete slab is not required for every stable installation. The system can also be installed on compacted road base, crusher dust, gravel or level grass, provided the site is level and drains properly. Concrete is a good option for high traffic areas and gives you a very stable, low movement base. For grass or gravel installations, specialised ground anchors can be used to secure the stable. The biggest priority is good site preparation. A level base with effective drainage will make installation easier and help prevent movement, pooling water and ongoing maintenance issues.

Yes. The modular panel system means larger stable setups can be dismantled, transported and reassembled at another property. Even when the stable has been anchored to a slab, the fixings can be removed so the panels can be relocated. This makes the system more flexible than a permanently built structure and can also help retain resale or relocation value if your property needs change

It depends on your base. For grass, road base, gravel or crusher dust, use a ground anchor kit. Concrete footings at anchor points can add support without requiring a full slab.

For a concrete slab, use suitable concrete anchors such as Dynabolts instead. Shed conversions may also need fixings to existing posts or walls, depending on the panel layout.
