Building Your Own Horse Stable? DIY Flat Pack Kit’s are Easier Than You Think.
Thinking about building your own stable? Our DIY flat pack kits are made to make that dream doable …no cutting, no welding, no delays. Designed for horse owners, not builders, each kit includes everything you need to get the job done in a weekend with just basic tools. Whether it’s a 1-bay shelter or a future-ready multi-bay setup, this guide breaks down exactly what’s involved in a stress-free, self-installed stable build.
Stable Buying Guides
252
Stables Built this yr
100%
Australian steel
2022
Local since 2022
Summary
Building your own horse stable is doable in a weekend with Guerilla Steel's modular kits. Panels are pre-welded, labelled, and arrive with step-by-step instructions, so most 1-2 bay builds take 6-8 hours with two people. Kits include locally fabricated RHS Australian steel panels, Monoclad/Trimdeck roof sheets, hinged swing gates and all fixings, with delivery and 4-6 week turnaround built in. Owners can choose full DIY, hire Guerilla Steel's install crew in QLD service zones, or bring in a local builder both backed by phone install support.
You can assemble a Guerilla Steel stable kit without welding or advanced building skills. The wall panels arrive fully welded, ready to position and bolt together on site.
You’ll need basic tools, help to handle the panels and a prepared, level base. The main jobs are measuring accurately, keeping the frame square and securing it with the right anchors for your ground conditions.
How Does DIY Stable Installation Work?
- Order Via Email, Phone or Online. Pick a base model, select your upgrades or get a stable made to your specs.
- Customised Build Instructions. Step-by-step for your exact kit.
- Build Day Phone Support. On call if you hit a snag.
- Optional Pro Help. Want to hire a local builder? No worries.
- Guerilla Steel Arranges Delivery to South-east QLD & Northern NSW.
- Our new 2.4m height ships easily across the country.
No-welding shelter system for quick setup.
We don’t leave you hanging. Every kit comes with clear diagrams and a full guide. Phone support is available every step of the way. Need a video call? Just ask. We’ve helped plenty of first-time builders get their stables up without a hitch.
If you need help planning your stable setup, check out the stable size and planning guide.
Stable install Options
| Option | Best For | Pros | Cons |
|---|---|---|---|
| DIY Build | Handy owners with time & tools | Cheapest, fast build, full control | Needs effort, some skill, site prep |
| GS Install Team | Buyers in service areas | Pro result, no lifting, adjusted on-site | Higher cost, zone-limited availability |
| Local Builder | Regional buyers wanting expert help | Local labour, supported by our docs | Quality varies, needs coordination |
Option 1: DIY Build with a Flat Pack Horse Stable Kit
Best for: Handy owners with basic tools and a spare weekend You save cash, stay in control, and get it done your way.
The owner took on the build using Guerilla Steel’s fully welded galvanised panels, mesh tops, and black ply kickboards.
Our stables are made for DIY. Every section is pre-welded. Every part’s labelled. No cutting. No welding. Just bolt and go. If you’ve got a drill, a ladder, and a mate to help, you’re sorted. A 1, 2 bay setup usually takes a day, some get it done faster. Comes with all bolts and fixings Clear install plans and reference photos Phone support if you get stuck
One Couple built a single-bay in under 5 hours. Horses moved in by sunset!
Option 2: Guerilla Steel Delivery & Professional Install Team
Best for: Anyone inside our service zones who wants it done fast and done right You get a clean, square, pro finish with zero stress
Our install crew handles the full setup, from unloading to anchoring. Got a slope or dodgy drainage? We’ll adjust on-site. With hundreds of installs across QLD, we’ve seen it all, and solved it all. Show up with gear ready Adapt to tricky layouts Work through weather and terrain Leave it tight, level, and done
Option 3: Hire a Local Builder – Kit Delivery Only
Best for: Regional buyers outside our service zones, You still get expert results, with local muscle and our guidance
We’ve worked with dozens of licensed builders. You supply the kit. They handle the build. We back them with phone and doc support. Here’s what your builder gets: Step-by-step install guide Phone backup from us Diagrams and detail shots Touch-up paint, fixings, and gear
Heads up: Just make sure they read the manual, and call if they hit a snag.
Simple to build DIY Modular Stable Kits
We designed our modular stable kits with one clear goal: make it simple to build a stable that’s tough enough for Aussie horses, practical for real rural properties, and easy enough to install on a weekend.
| Feature | Traditional Custom Stable | Guerilla Steel DIY Modular Kit |
|---|---|---|
| Build Timeline | Months of planning and build time | 4-6 weeks delivery, 1-day install |
| Installation | Requires multiple trades and custom builders | DIY with a mate + drill, or local installer |
| Cost Clarity | Add-ons and variations drive up costs fast | Transparent pricing, gates & roof included |
| Scalability | Each addition requires new custom work | Modular by design, add more bays later |
| Structure | Depends on builder, may use lighter frames | Fully welded RHS steel, 2.4m tall |
| Ventilation | Depends on design specs and roof pitch | Mesh tops, extra height = better airflow |
| Owner Input | High involvement, complex decisions | Full control, simple guidance |
A Modular stable system you can build on
The modular system lets you start with the bays you need, then add more accommodation, a wash bay or a tack room later.
Front, rear, end and dividing panels work together across the stable and shelter range. You can choose panel combinations, gate styles and storage options around your horses and daily routine.
For help comparing layouts and panel options, read our guide to Choosing a Modular Prefabricated Horse Stable Panel System.
What Comes in a Guerilla DIY Flat Pack?
Our flat pack horse stable kits are now made for easy transport and Australia wide delivery is now possible with our new 2.4m Standard build height! Here’s what else comes standard in every base build:
| Feature/Part | What you get |
|---|---|
| Panels | Pre-fabricated galvanised Australian steel stable panel frames + roof panels |
| Roofing | Roof sheets with overhang (900 mm front overhang standard + 100m at the rear) |
| Gates | Front gate panel included in all stable kits, |
| Horse Boards | Lower Ply kick board infills with welded mesh on the upper panels |
| 2.4m Standard Height | 2.4m height ships easier but still gives great airflow and horse safety |
| Flatpack Ready | Delivered to your gate with everything you need to stand it up fast |
| Modular Layout | Modular means you can add more stalls or tack room later |
| Tried and Tested System | Made for Aussie conditions & horse owners. Proven layouts, reliable fit, and smooth install. |
| Retrofit Compatible | Add into an existing shed, or build freestanding in your paddock |
| Phone Support on Build Day | Got a question mid-install? We’re just a call away |

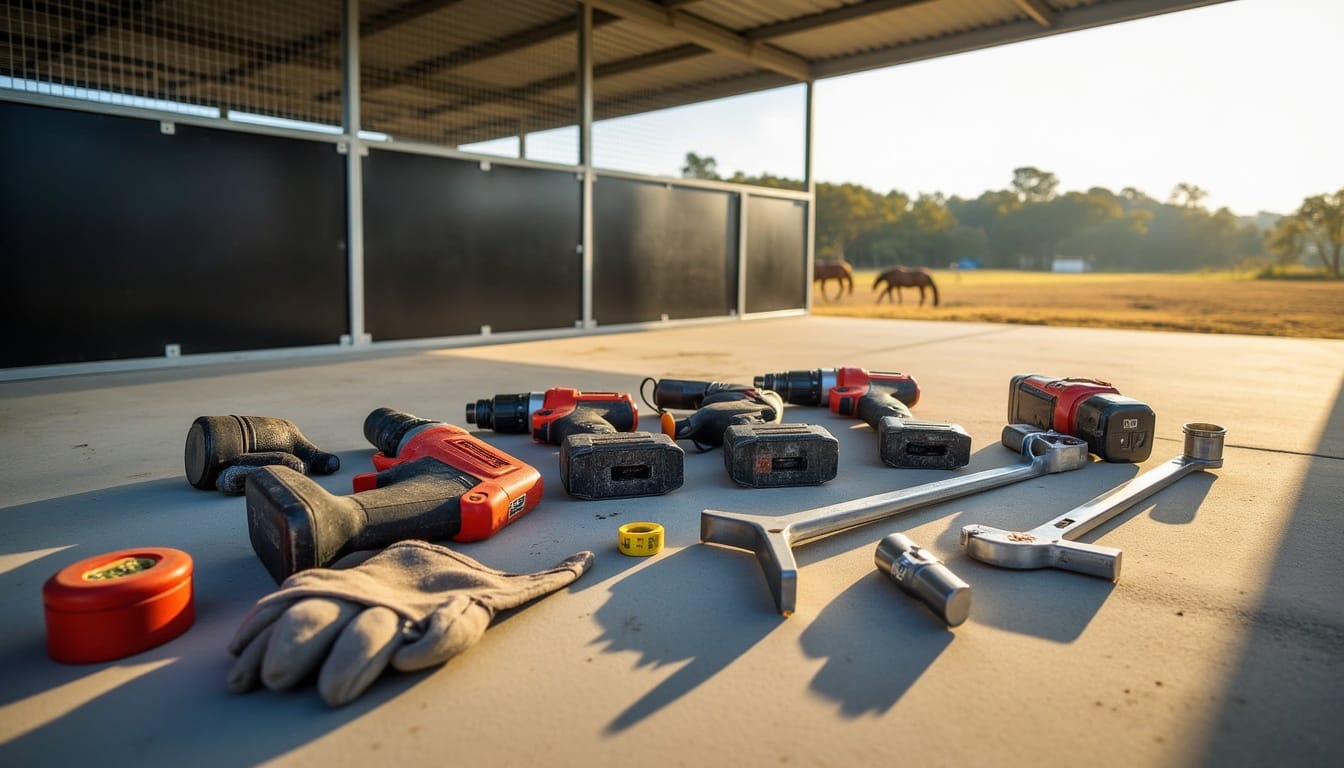

Tools You Need (You probably already have them)
Don’t worry, you won’t need a trailer full of tradie gear to build your stable. Most of what you need is already in your shed or garage. Here’s the basic kit:
- Cordless drill with socket bits – for fastening panels and roof sections.
- Level and tape measure – to make sure everything lines up square and straight.
- Socket wrench – for tightening up fixings and securing joins.
- Gloves, boots, and a ladder – safety first, especially when working at height for roof install.
That’s it. If you’ve got a mate and half a day free, you’re well on your way to a finished stable. No special tools, no welding, no hassle.
DIY Site Prep
Site prep might not be glamorous, but it’s the foundation of a long-lasting stable. A properly prepared base keeps your structure level, improves drainage, speeds up install, and prevents costly issues like shifting, sagging, or pooling water.
Whether you’re building on grass, gravel, or concrete, investing in compact, well-drained ground upfront ensures your stable stays strong, safe, and functional for years. It’s 30% of the job, but solves 90% of future problems.
Here are the Site Prep Basics,
- Firm, level ground (road base, grass, or concrete slab)
- Good drainage (avoid pooling)
- Optional but highly recommended anchors for extra wind protection
If you want, check out the full site preparation and planning guide get the downloadable Site Prep Checklist.
Install your Bay in a Day
You don’t need a full crew. Just a mate, a drill, and some time.
- Lay out the base and align panels
- Stand-up front and internal dividing panels first (or just 1 end end panel for a single bay build)

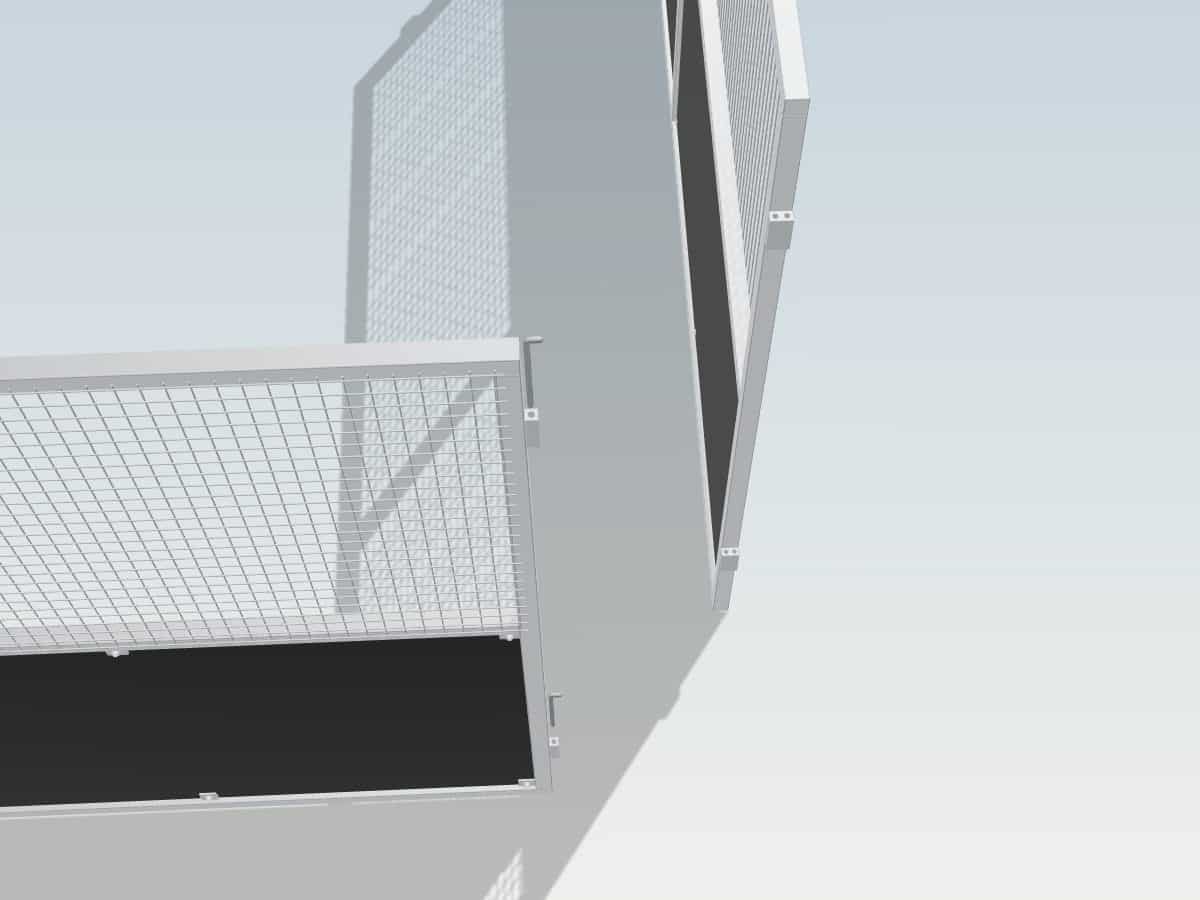

- Drop cattle pins into joint pin sleeves
- Stand up End Panels and Connect to internal dividing (or end) panels.
- Secure the roof trusses
- Add your End Panels

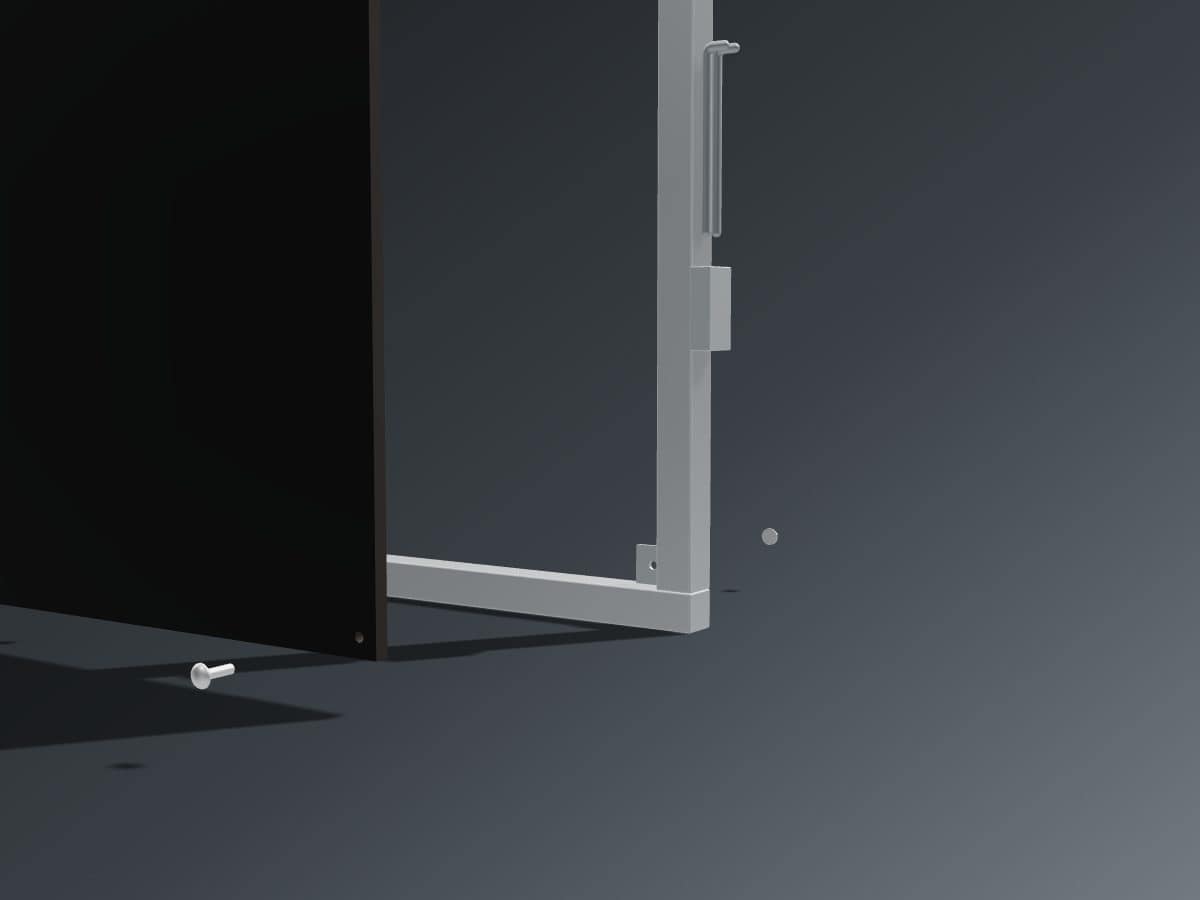

- Add Ply Infills and secure with hardware
- Install stall gates
- Double-check fixings for safety
Most builds take 6, 8 hours with 2 people.
Delivery & Workshop Pick-Up
Guerilla Steel arranges delivery across South-East Queensland and Northern NSW. You can also collect your kit from our Yatala workshop with a suitable trailer.
Our 2.4m-high panel design makes flat-pack kits easier to freight across Australia. If you’re outside our local delivery area, ask about freight options and loading requirements before arranging transport.
Guerilla Steel Customers with DIY stable kits Installed in a day
DIY Horse Stable Kit
A first-time couple near Guyra built their own 4m × 4m Guerilla Steel horse stable using a prefabricated DIY kit, avoiding concrete with a compacted road base pad. Numbered components and optional phone support made assembly stress-free, resulting in a durable, weatherproof, expandable stable suited to Australian rural conditions.
GS-139 / May 2025
✦ Customised
Size
1 Bays
4m x 4m (16m²)
MODEL / Type
Base Model
Horse Stable
Built
1.5 days
DIY
1 Horse Stable DIY Build
A DIY 4×4 metre single bay horse stable installed in Nerang, Gold Coast, using the Guerilla Steel modular system. Featuring a galvanised steel frame, mesh upper panels, and solid kick panels, this paddock stable offers durable, easy-to-assemble shelter with good airflow, ideal for private horse owners seeking a simple, strong setup.
GS-132 / December 2025
Size
1 Bays
4m x 4m (16m²)
MODEL / Type
Base Model
Horse Stable
Built
1 Day
DIY
Ready to Build Your Own Horse Stable?
Whether you’re planning one bay or four, browse our stable kit store for current pricing and available configurations. Compare panel options, sizes and layouts to find a kit that suits your horses and property.
If you have any Stable Buying Questions or want something custom, Give Morgan a call on 0405 538 413, email guerillasteel@gmail.com
