Multi Bay Stables
Modular Stable Design
Built Tough for Everyday Use
Fully welded DuraGal® steel, smart ventilation, and a 2.5 m roof height for superior comfort and longevity
5.0 Rating from 15 Google reviews
Australian Steel, Locally Made
4-6 Week Delivery
2.4 Height - Built Bigger

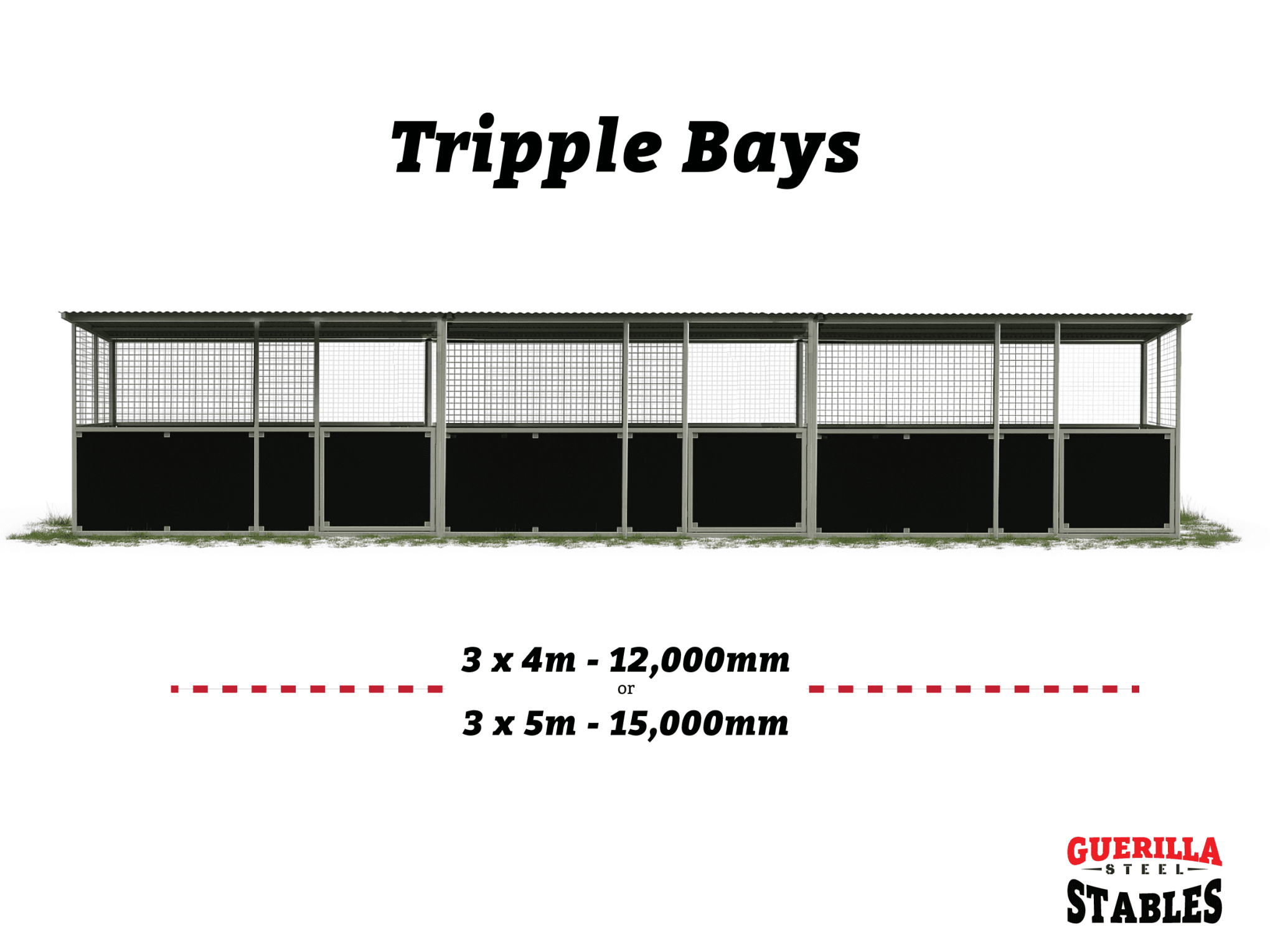

Tripple Bay Standard Horse Stable - 12m x 4m x 2.4m 48m²
Scalable, Flexible, and Built for Australian Conditions
Efficient 3-bay standard layout with modular expansion options. Mesh tops, form ply panels and durable Australian steel frame kit for long-term use.
$12,500.00
GS-BASE-STD-3 base model
$500 Online Stable Deposit - Fully Refundable — See Terms
Your $500 deposit simply holds your place in our build schedule while we confirm the final quote, site access, delivery, and installation details.
If we cannot proceed, or if you decide not to continue after final confirmation, your deposit is fully refunded — no penalties.
This payment does not start fabrication or lock you into the full project. Full Order and fabrication terms only apply once the fabrication deposit is paid. View full Fabrication Terms & Order Conditions.
Deposit Optional: Addons and upgrades can be added before full order confirmation → enter your stable details on the next step
Pro install available
We come to you Installs from $550
DIY-friendly
Simple setup with basic tools
Expert support
Local Fabricators

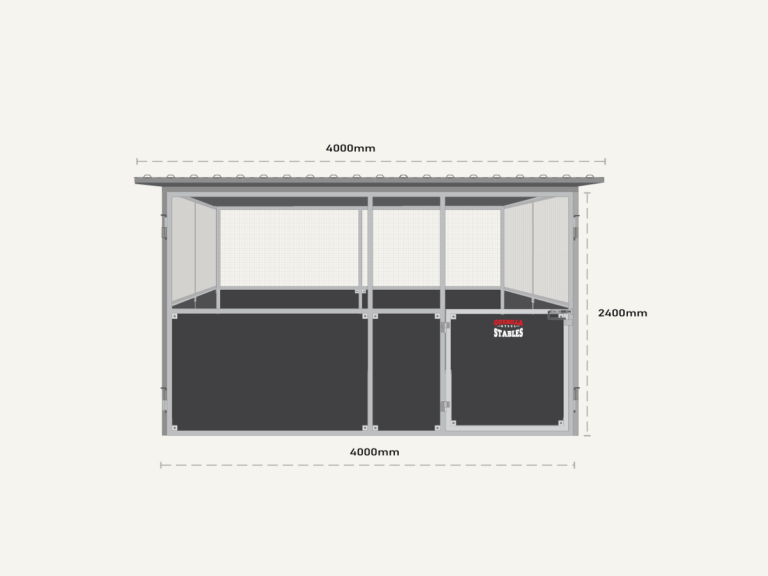

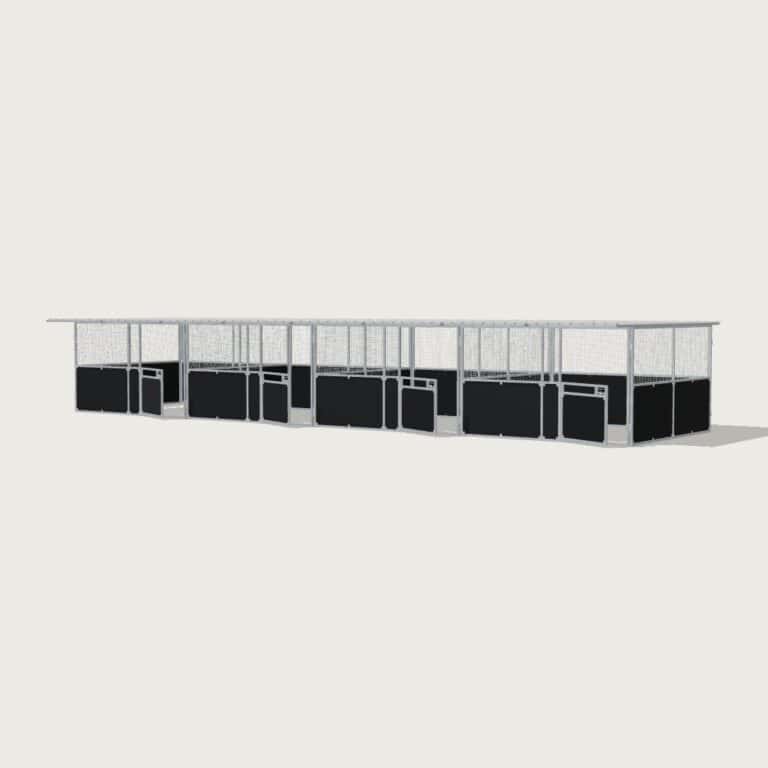

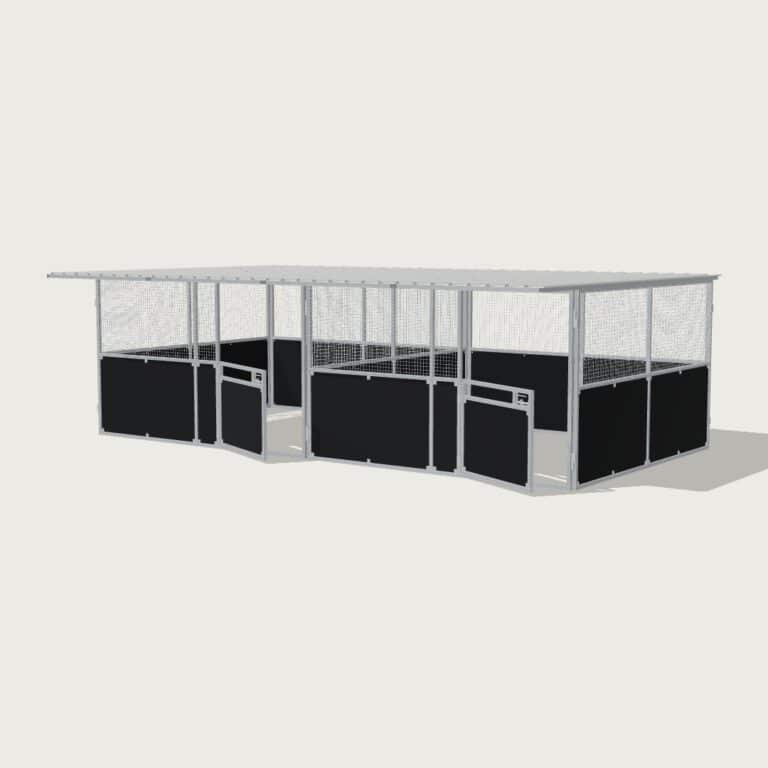

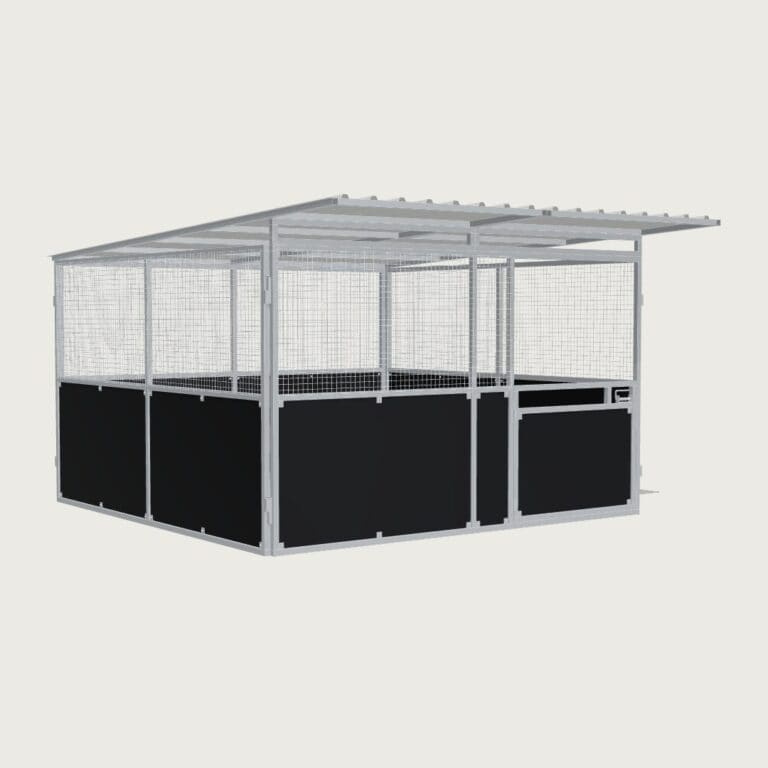

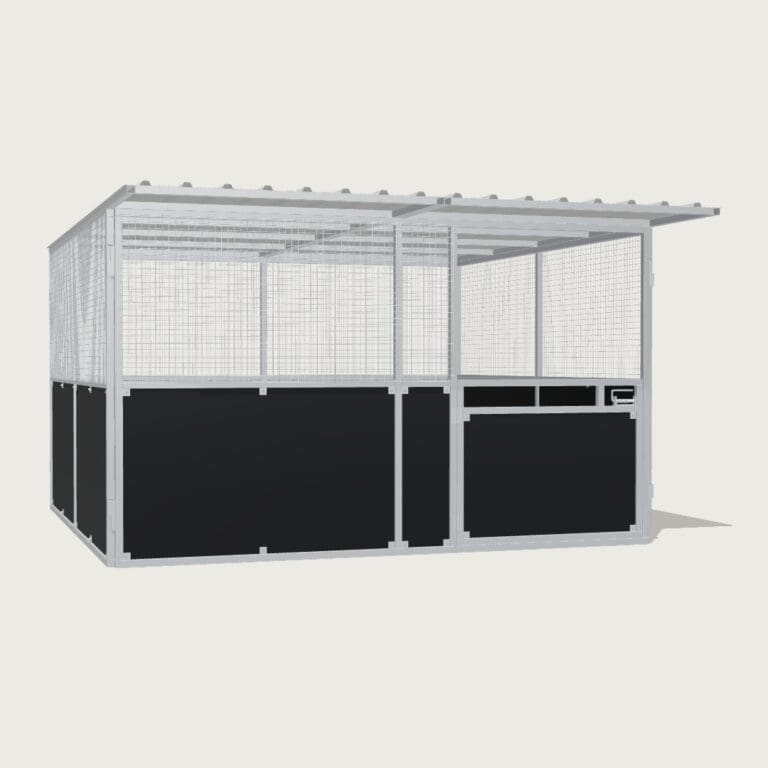

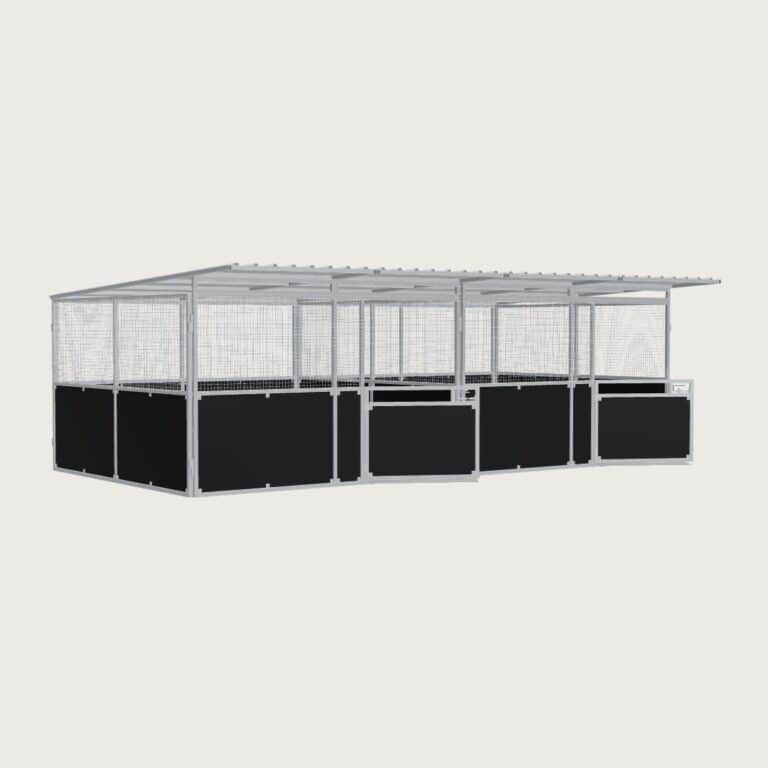

- Standard Stall Size
4m x 4m x 2.4m

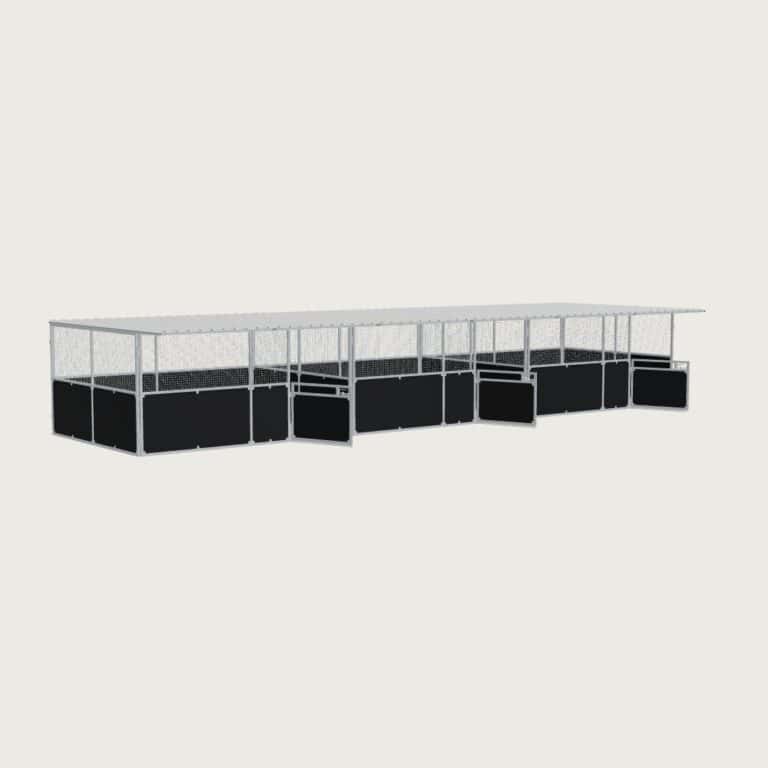

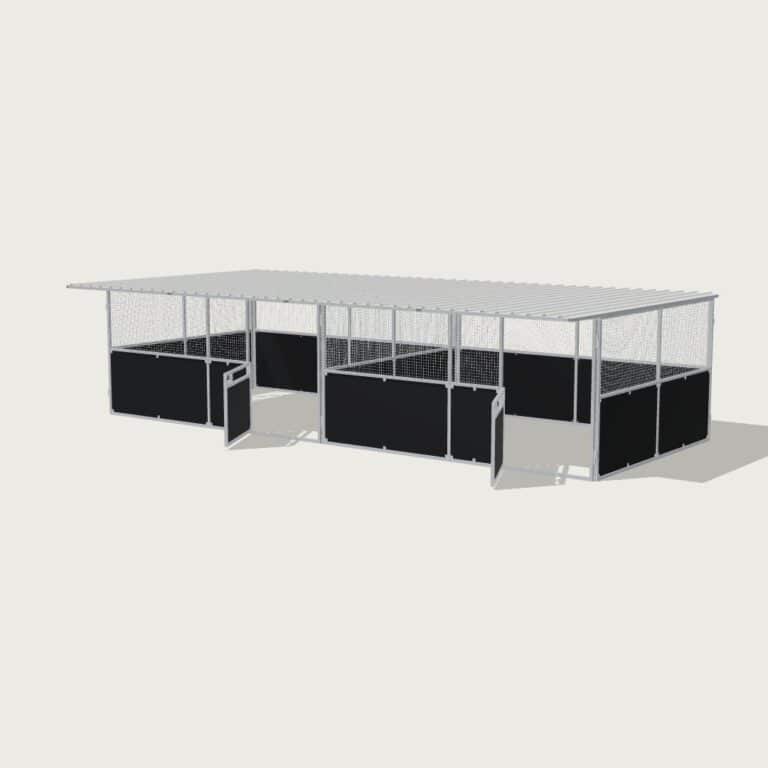

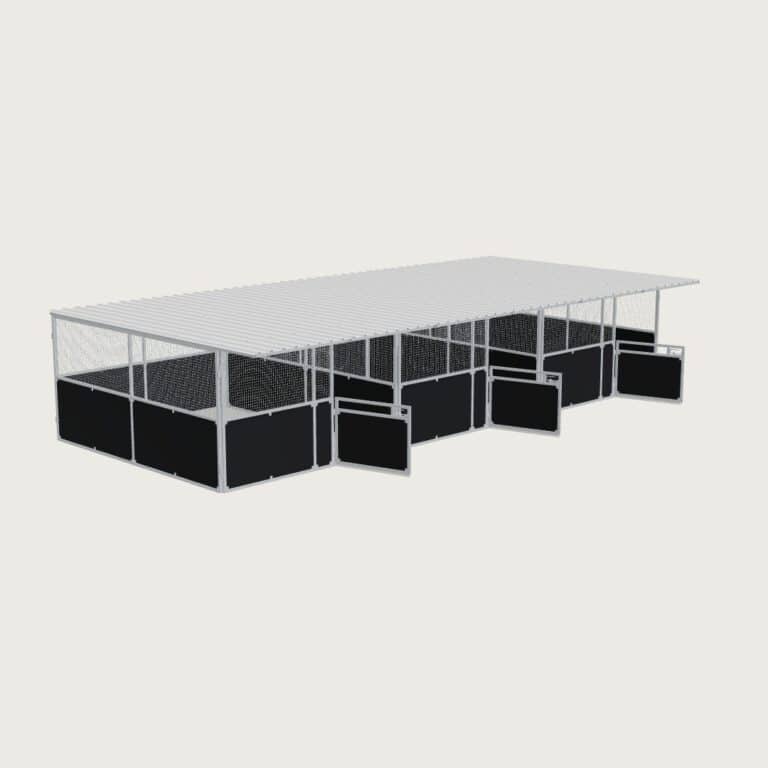

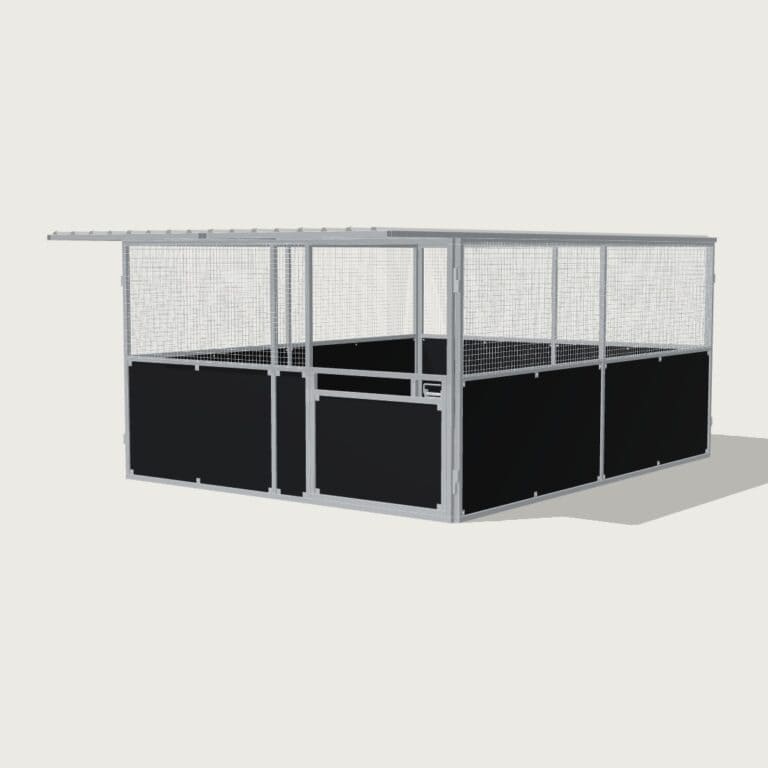

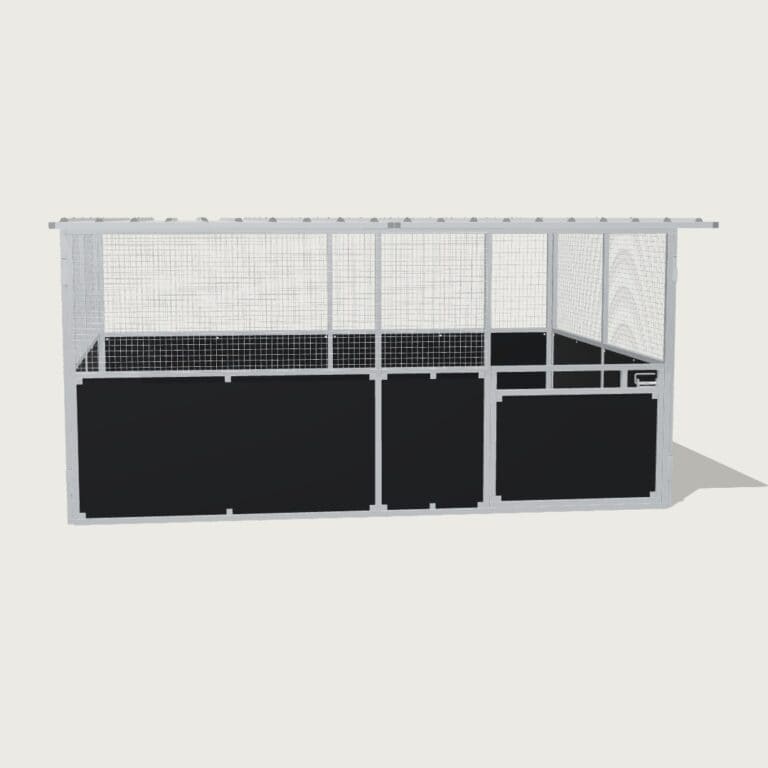

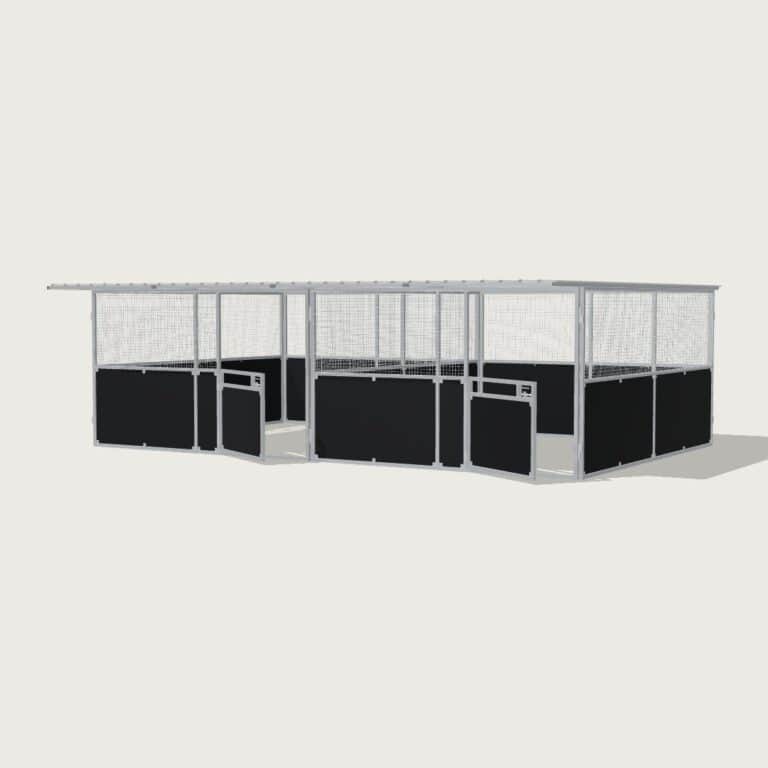

- Large Stall Size
4m x 5m x 2.4m

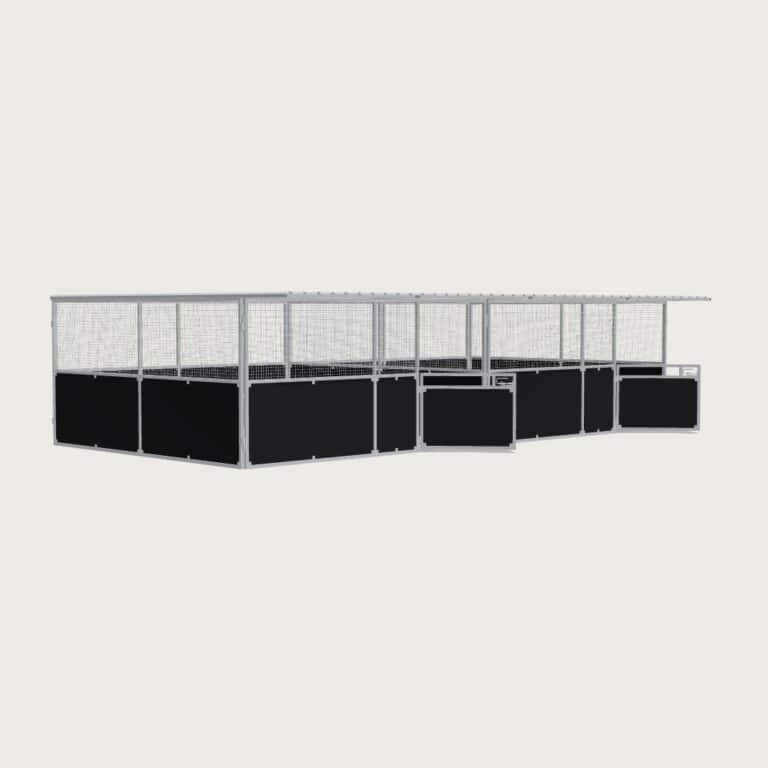

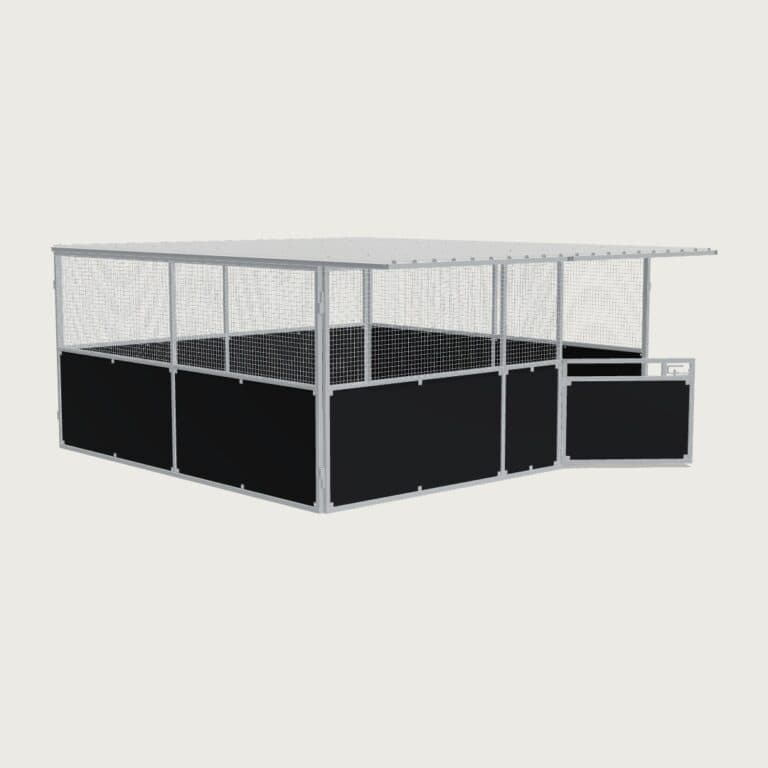

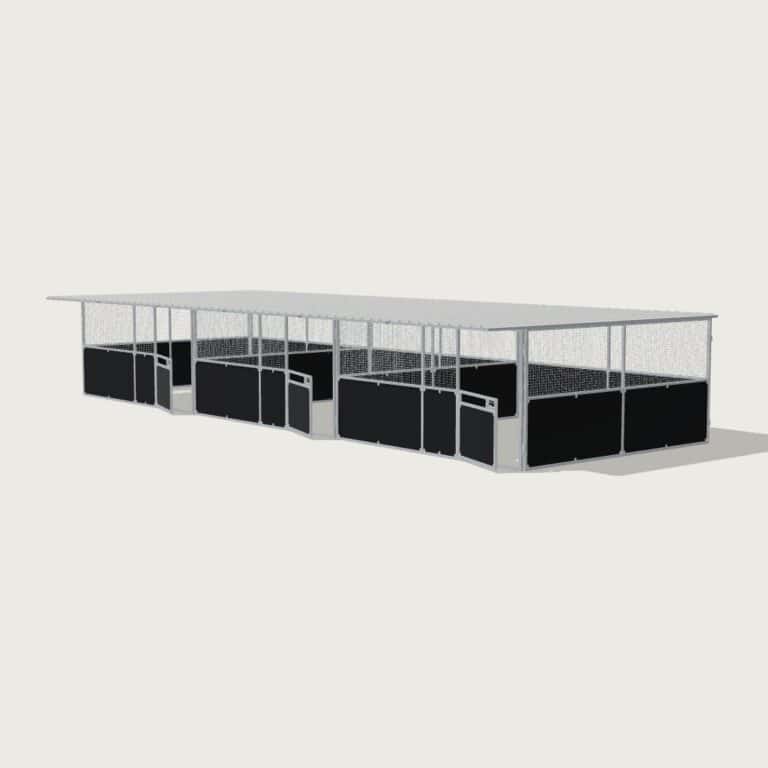

- X Large Stall Size
5m x 5m x 2.4m

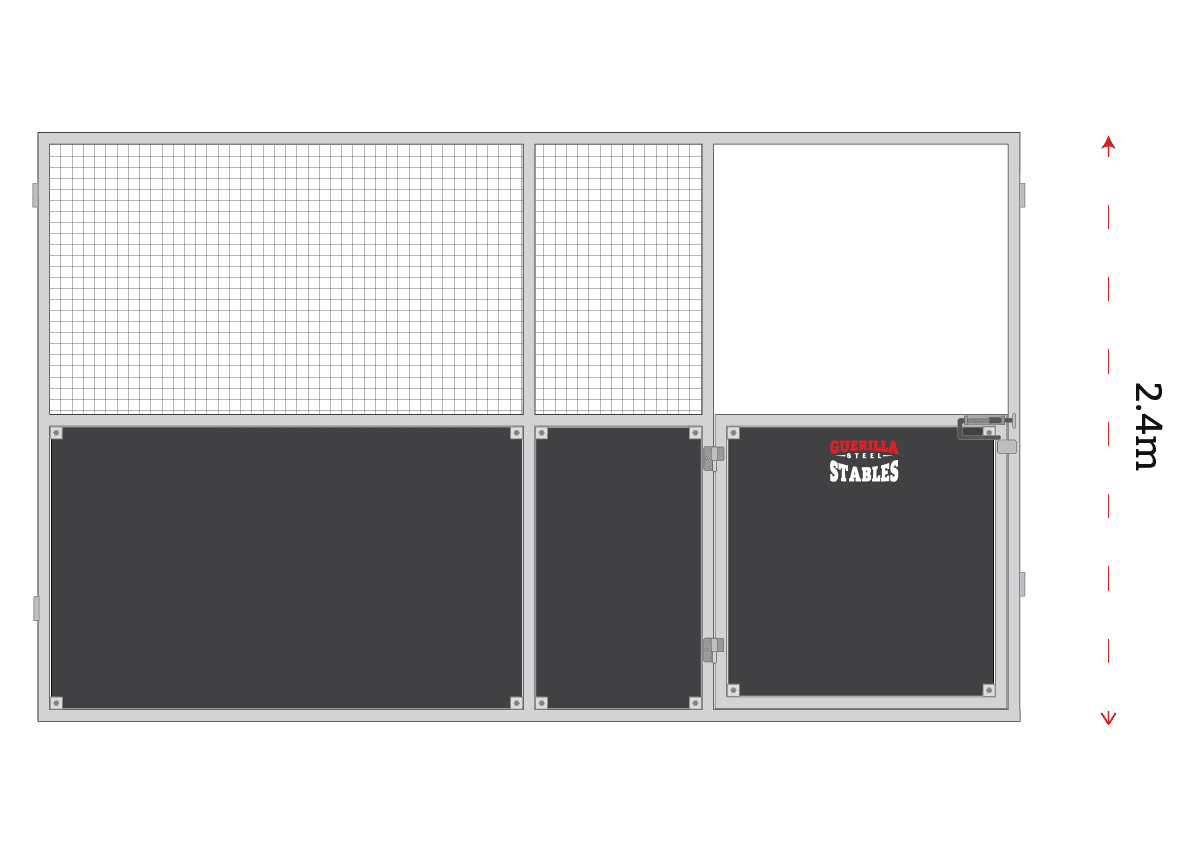

- Large Panel Size
5m x 2.4m (upgrade to 5m)
- Frame 50x50mm RHS Galvanized Steel Tube

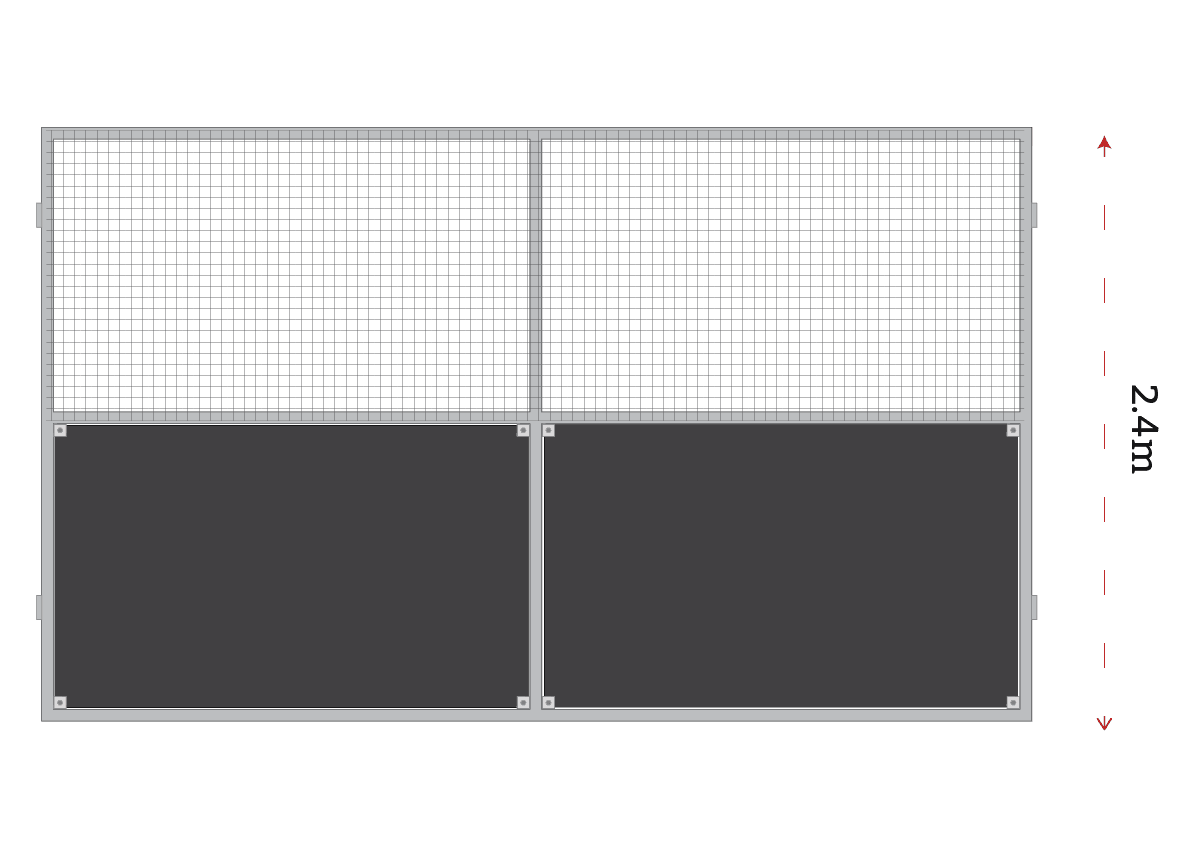

- Panel & Internal
Kick Board
17mm Form Ply
- Mesh 4mm Heavy-duty Galvanized Mesh
- Gate 1200mm W x 1290mm H
- Roof
Flat Monoclad® Roof Sheeting – 900mm front overhang, 100mm rear overhang
- Stall Fittings
Robust fittings and supports
- Stall Fittings
- Detailed Specificaitons

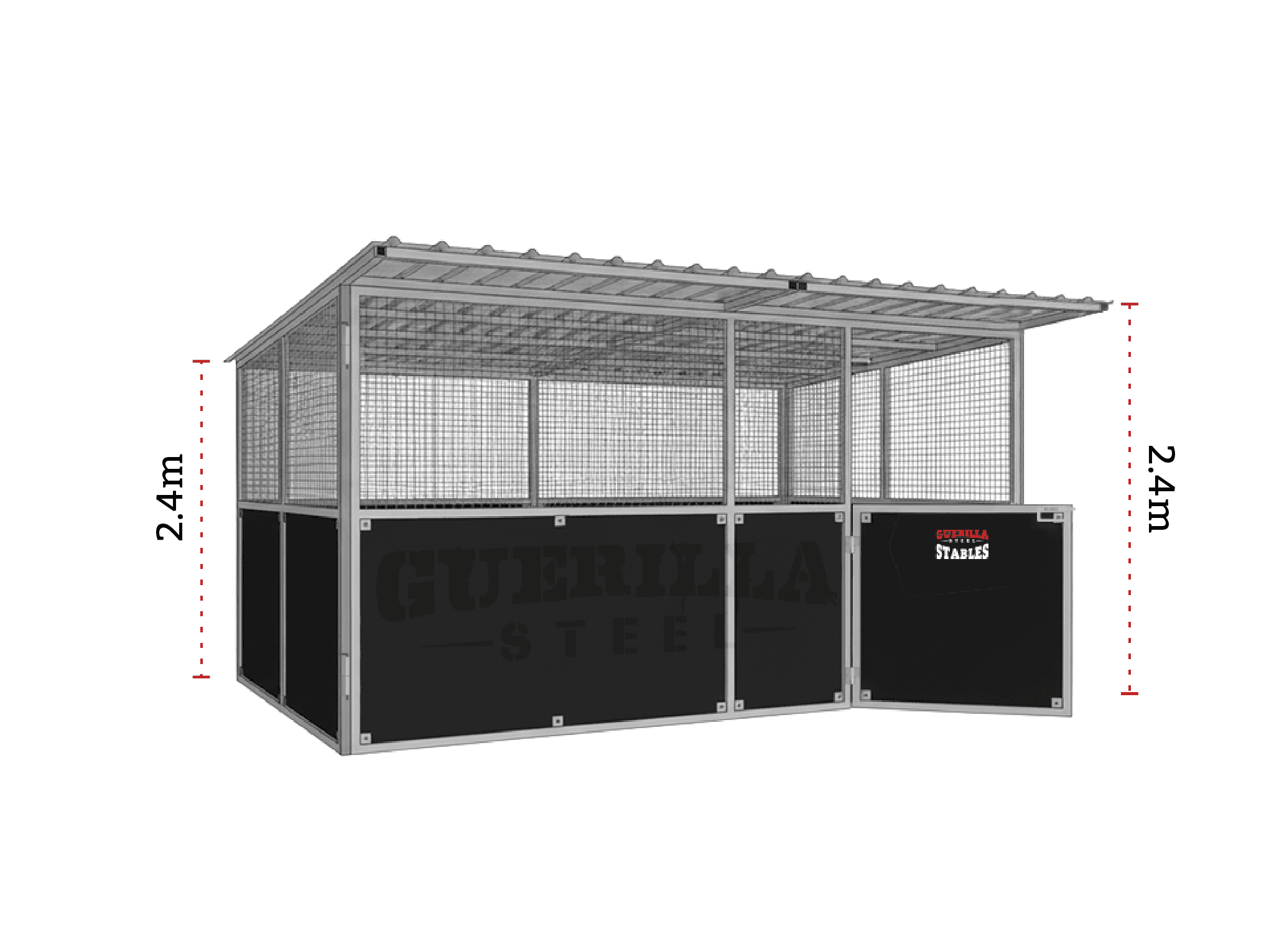

Base Model Specifications
- Detailed Specificaitons
Specifications
Straight-Edge Swing

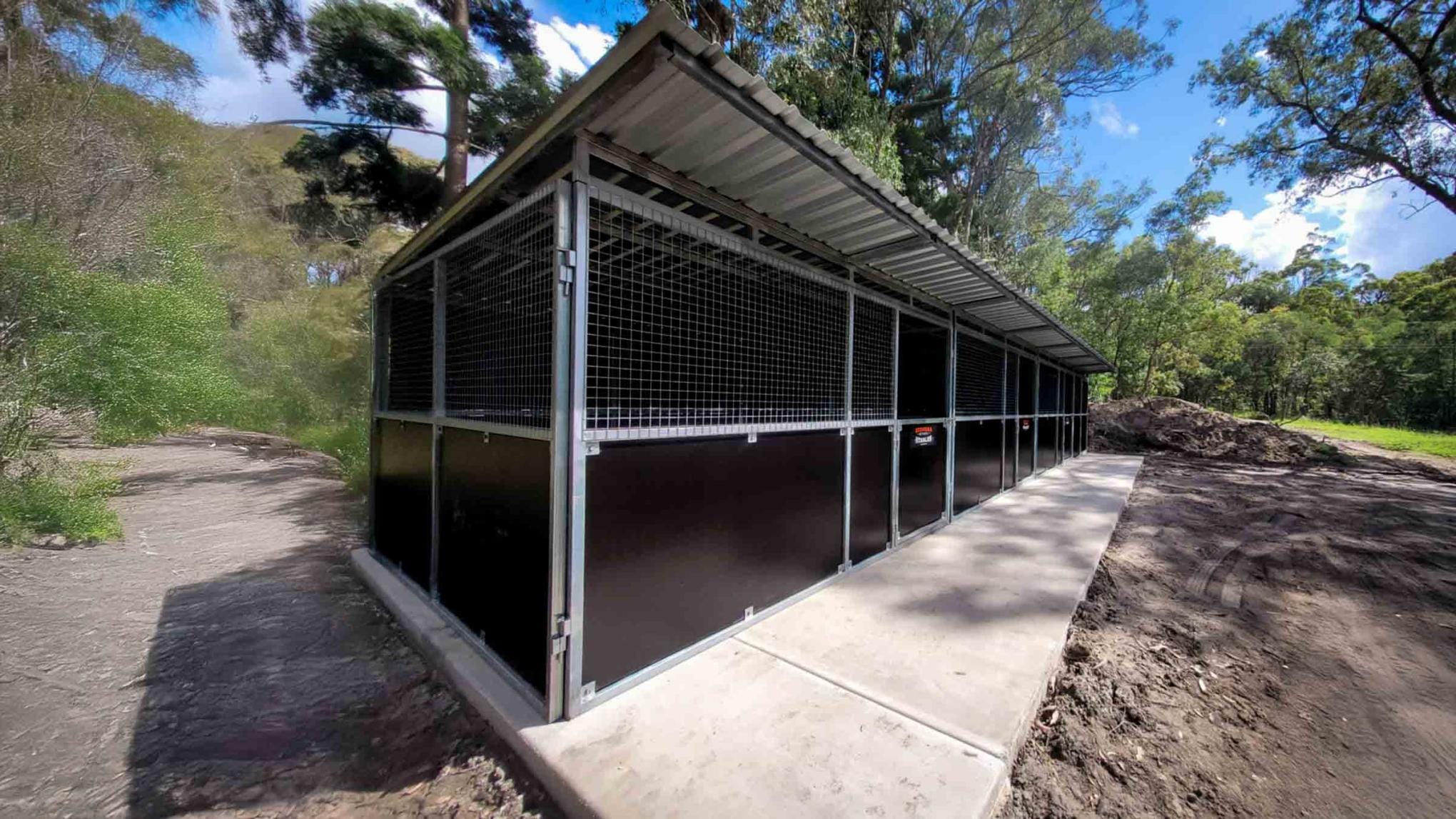

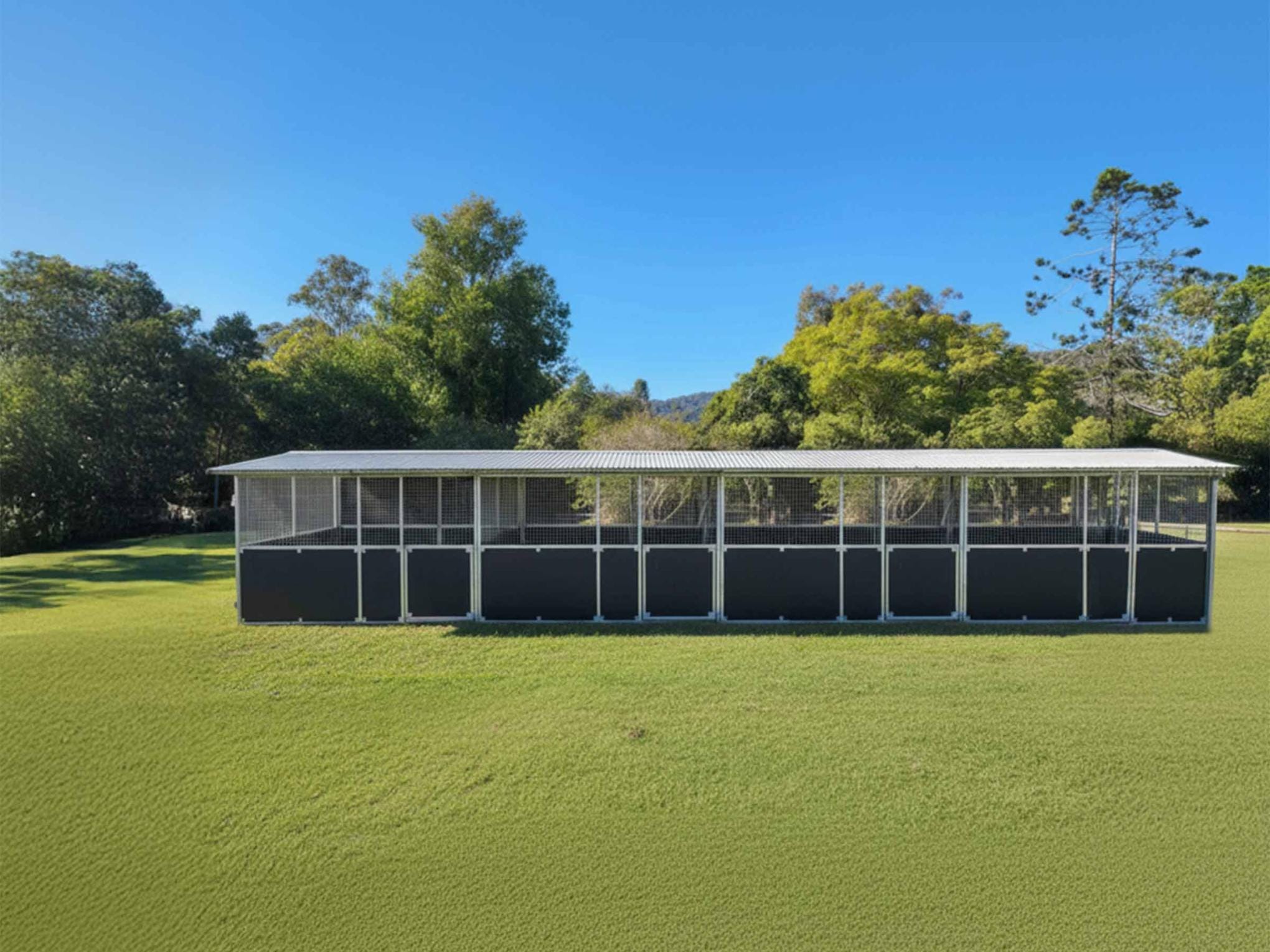

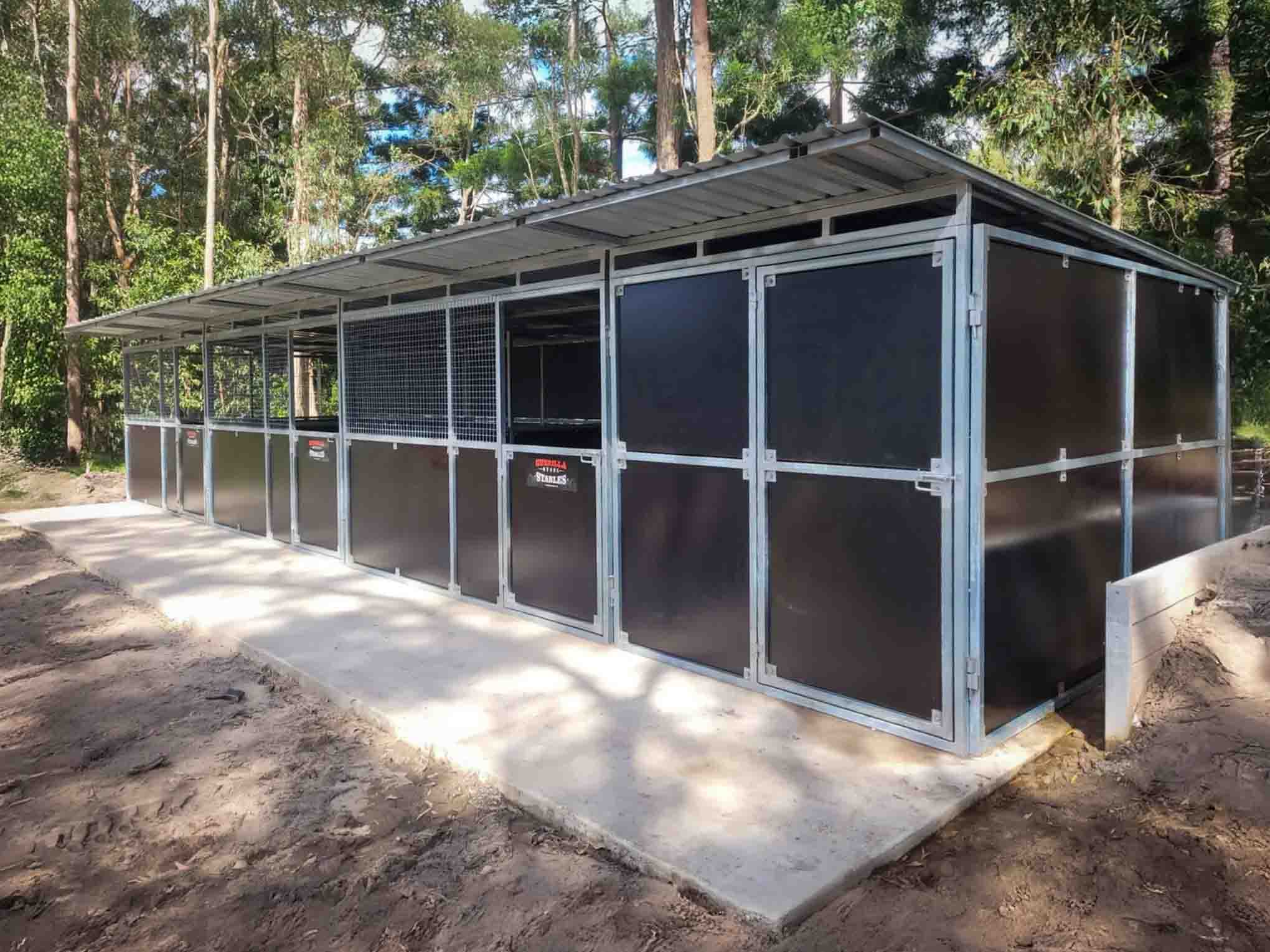

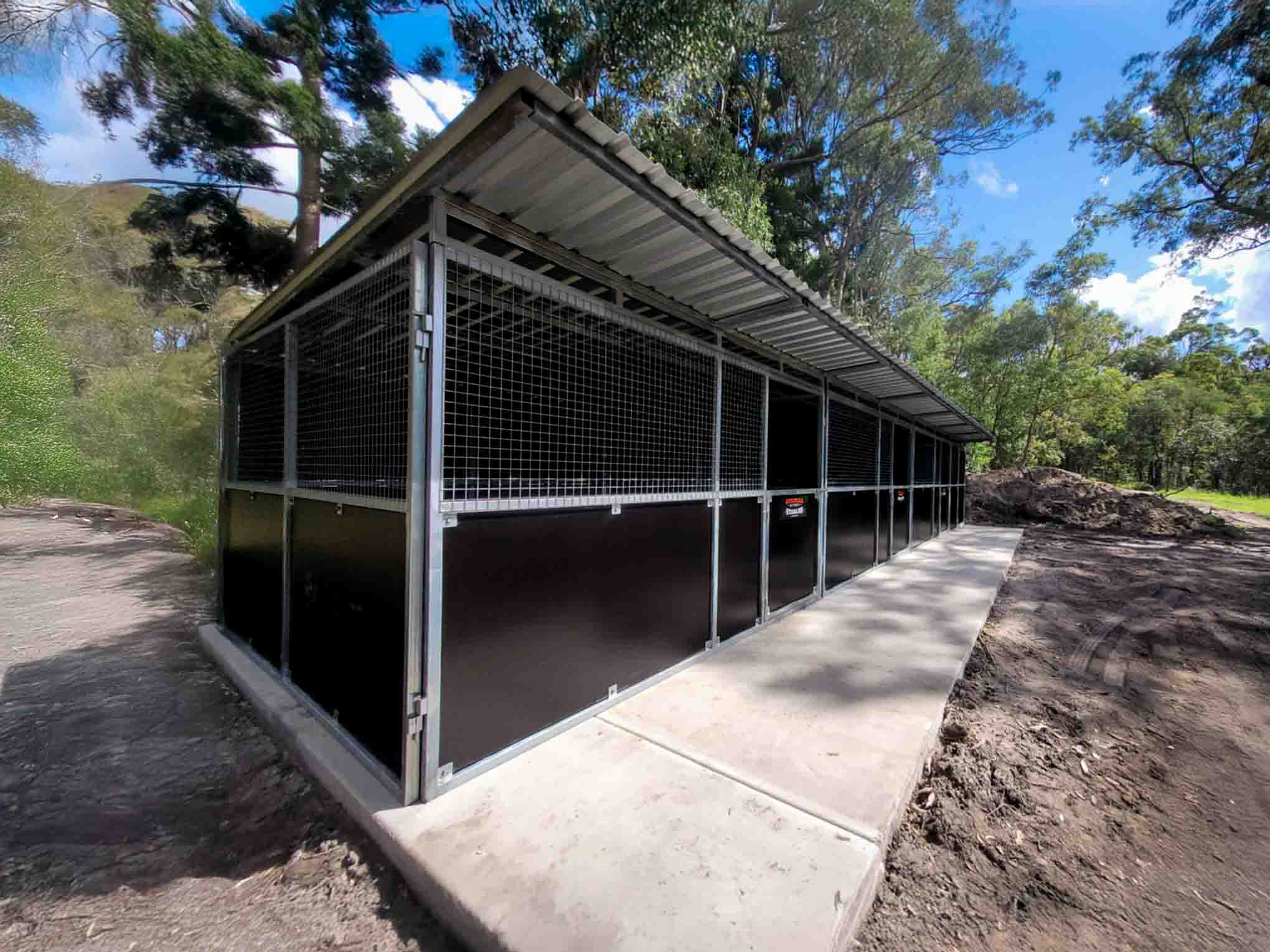

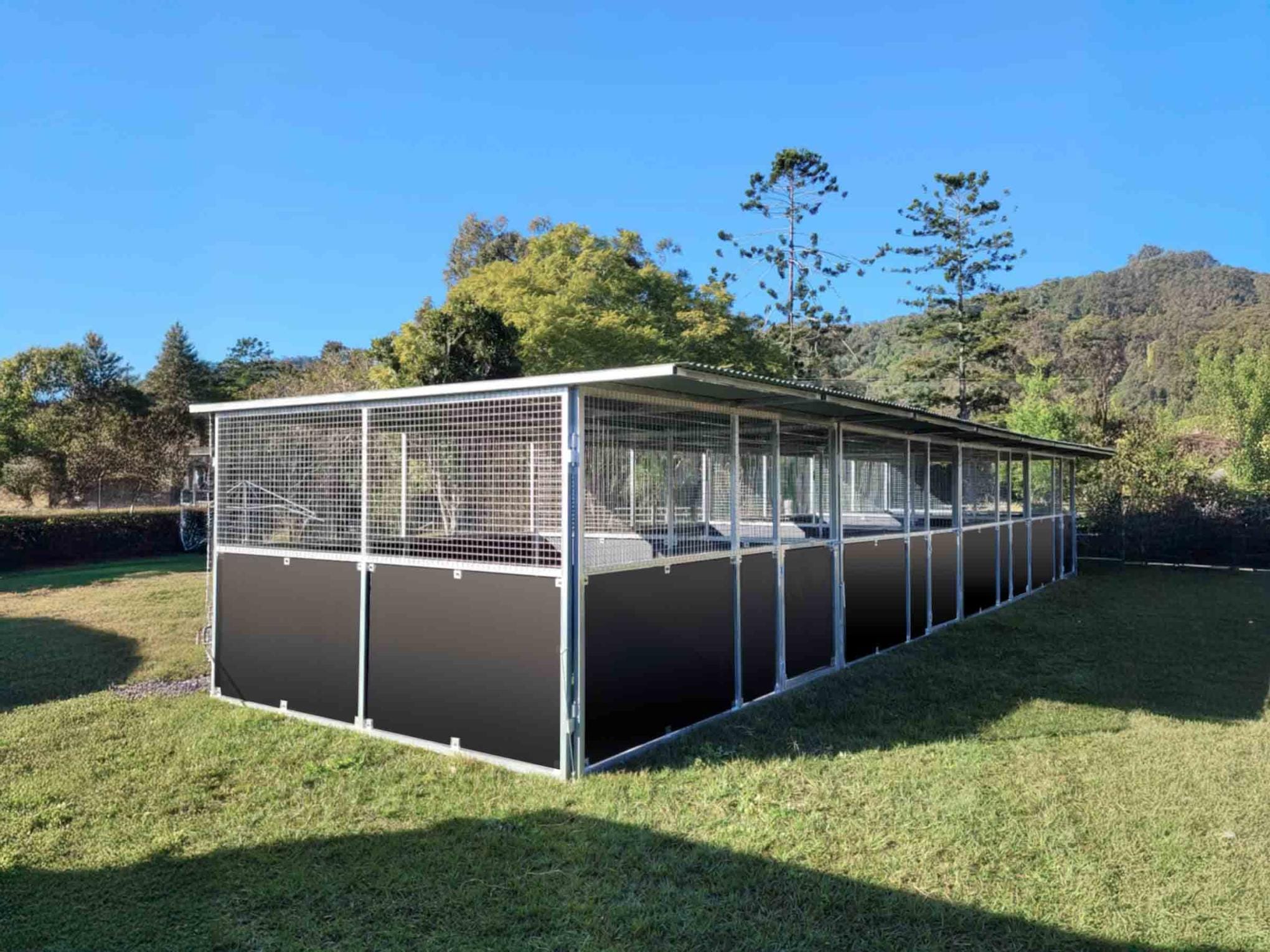

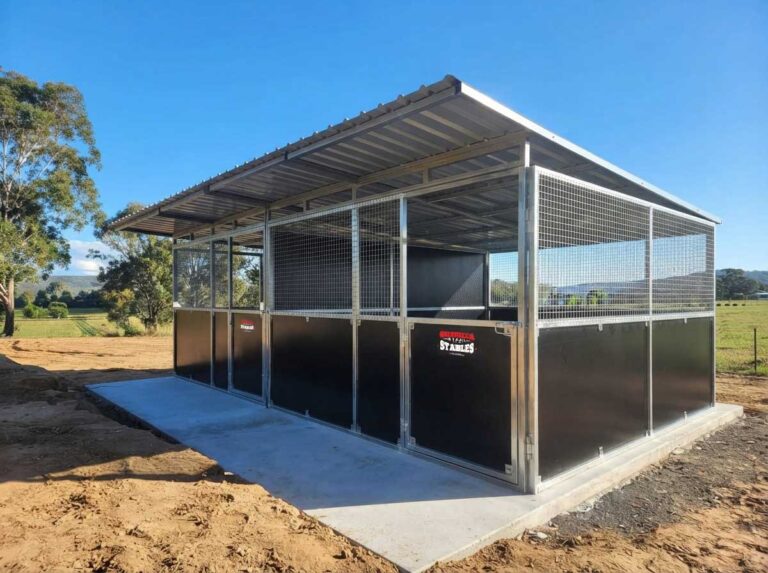

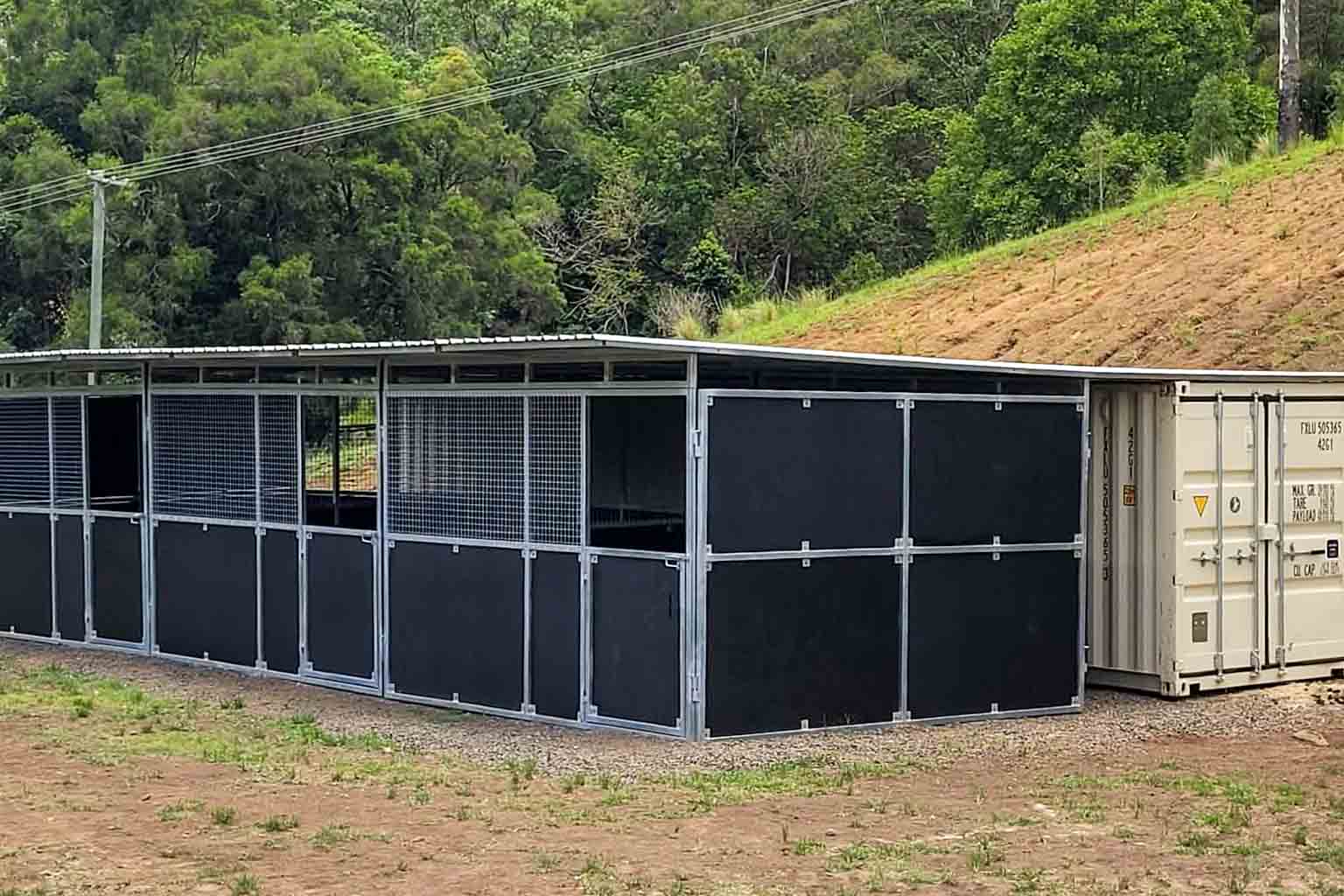

Horse Stable Configurations & Recent Projects
See how property owners across QLD, NSW & VIC configured their own custom setups.
Real Projects. Real Results.

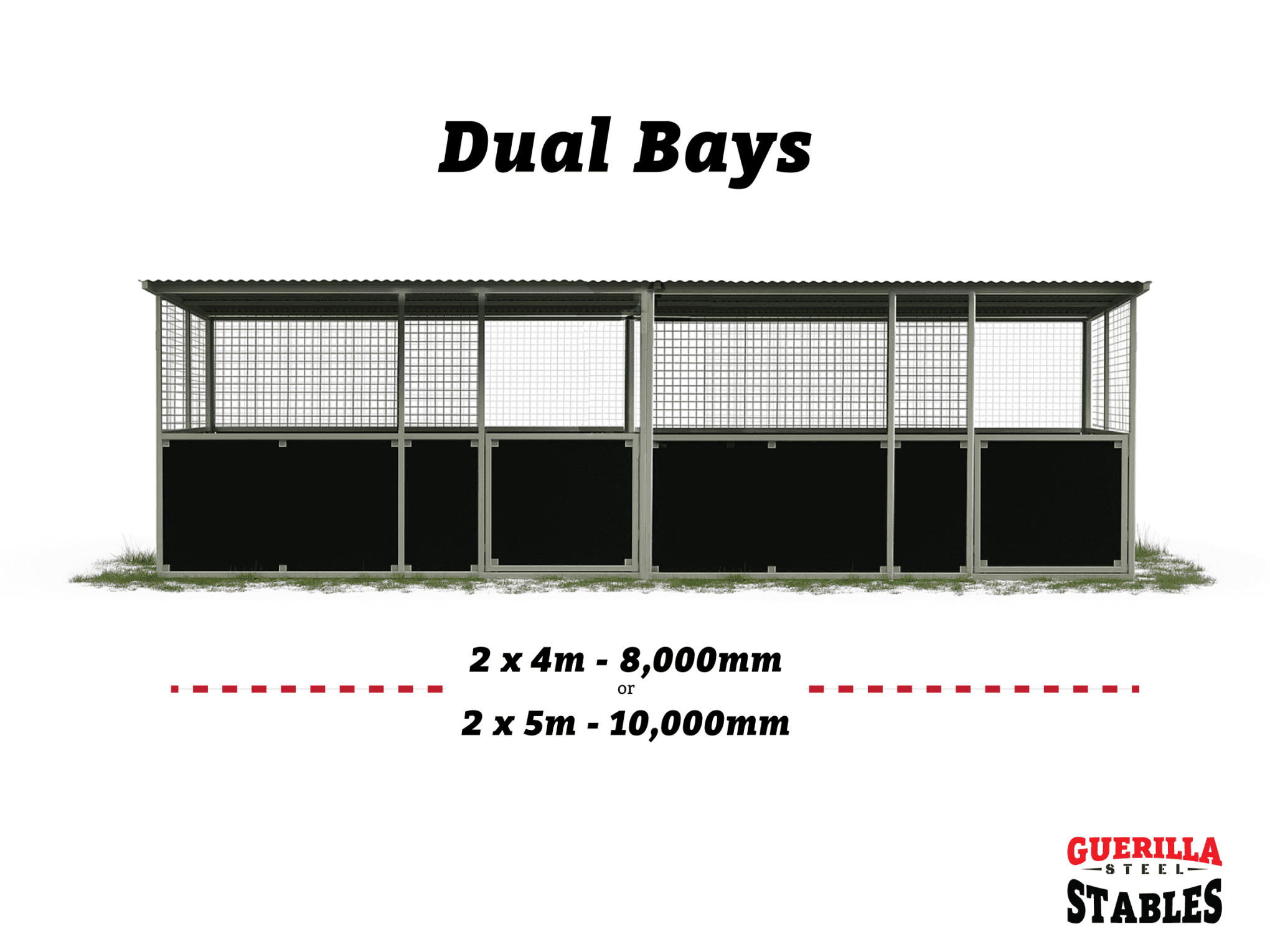

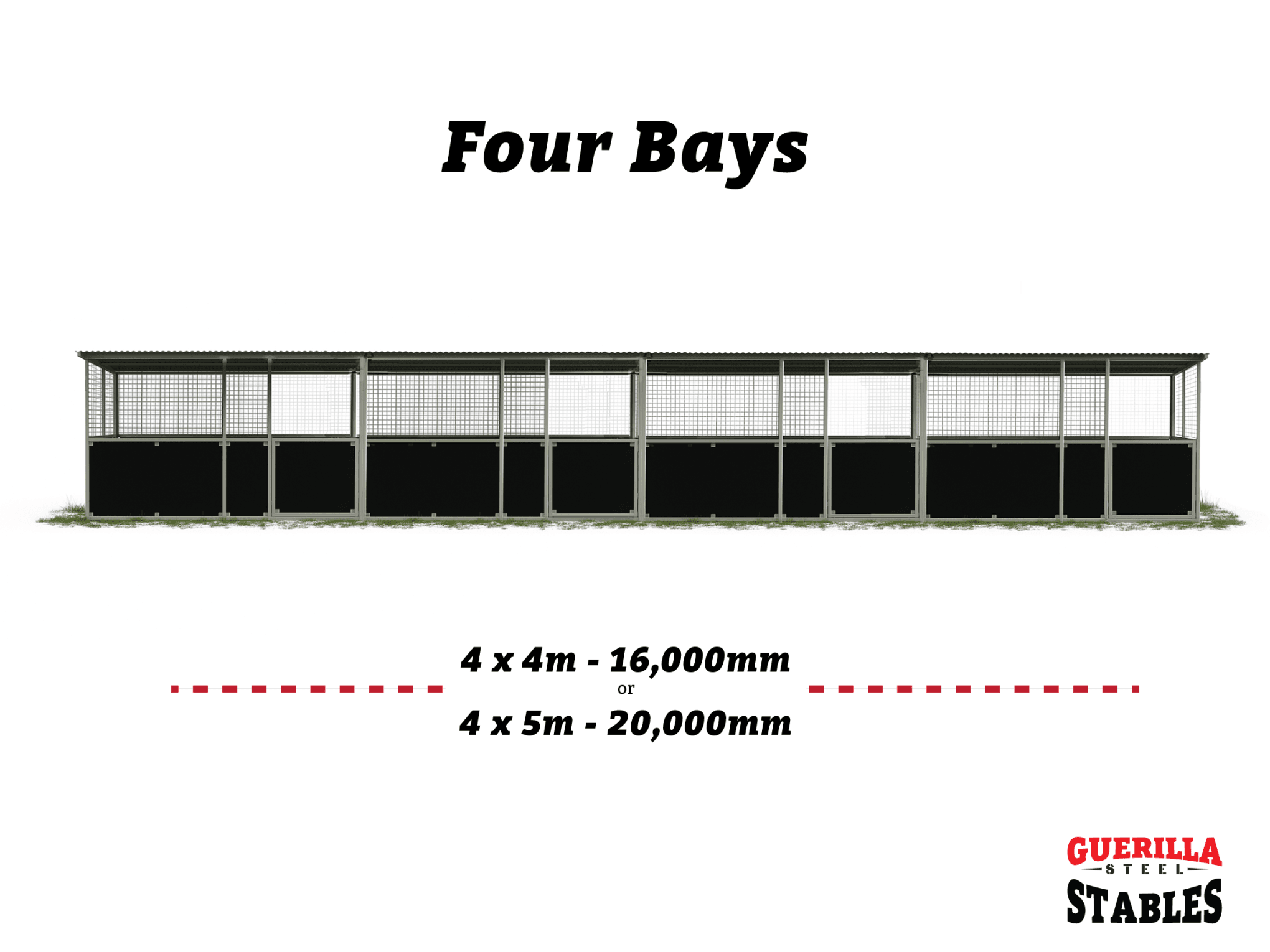

Build It Your Way
Full ply, mesh upper, or custom combo.
Configure your perfect stable in 2 minutes.
3 Stables Built This Month, Each One Different
FAQ – Straight Answers for Serious Buyers
Get answers fast - or call us on 0405 639 413
⚡ Quick Answers
Will added bays match structurally?
Yes, additional bays for stalls, tack rooms and even open cattle panels integrate seamlessly. The key is planning future expansion early so your roof pitch can remain consistent and your site can accommodate your growth
Is there a limit to how many bays I can add?
There’s no fixed limit. Modular systems are designed to expand, from a single bay to large commercial configurations, provided your site allows it.
What are the standard dimensions for a single stable or shelter unit?
Standard shelters utilize 4m x 4m or 5m x 5m configurations with a 2.4m roof height to maximize airflow and head clearance. Price Range: Stables & shelters start from $3,500 to $4,000+.
Are these suitable for all animals?
Built with a 2.5m height for airflow, these are safe for horses and all livestock. Open-front access allows free movement.
How much does a Prefabricated Horse Stable Kit cost?
It depends on size, design, and materials. A small Australian made steel framed stable kit (single horse or pony stall 16m Square footprint) with DIY Install starts around $4,000 – 4500.00.
Larger facilities, like this walk through horse barn, can cost upwards of $30,000 but may be much less if you are retrofitting an existing shed.
You can compare our base models and calculate the kit cost on our stable specs page
How long does it take to setup a Guerilla Steel Stable kit?
A 1 or 2 bay setup can be installed in a day by two people. Larger multi-bay stables may take a weekend. Our flat-pack kits come pre-welded and labelled for a no-fuss build, and every part is designed to align correctly the first time.
📖 More Details
Q: What panel and gate upgrades are available?
A:
Standard setups are ply/mesh. Upgrades include Yoke-style (Dutch) gates ($350/bay) and full weather-protection ply panels.
Q: Can you build high-end or luxury horse stables?
A:
Yes. We design full equine facilities and complete complexes tailored to your property, workflow, and long-term plans. Stable Builds can include tack rooms, breezeways, wash bays, feed rooms, and upgraded finishes.

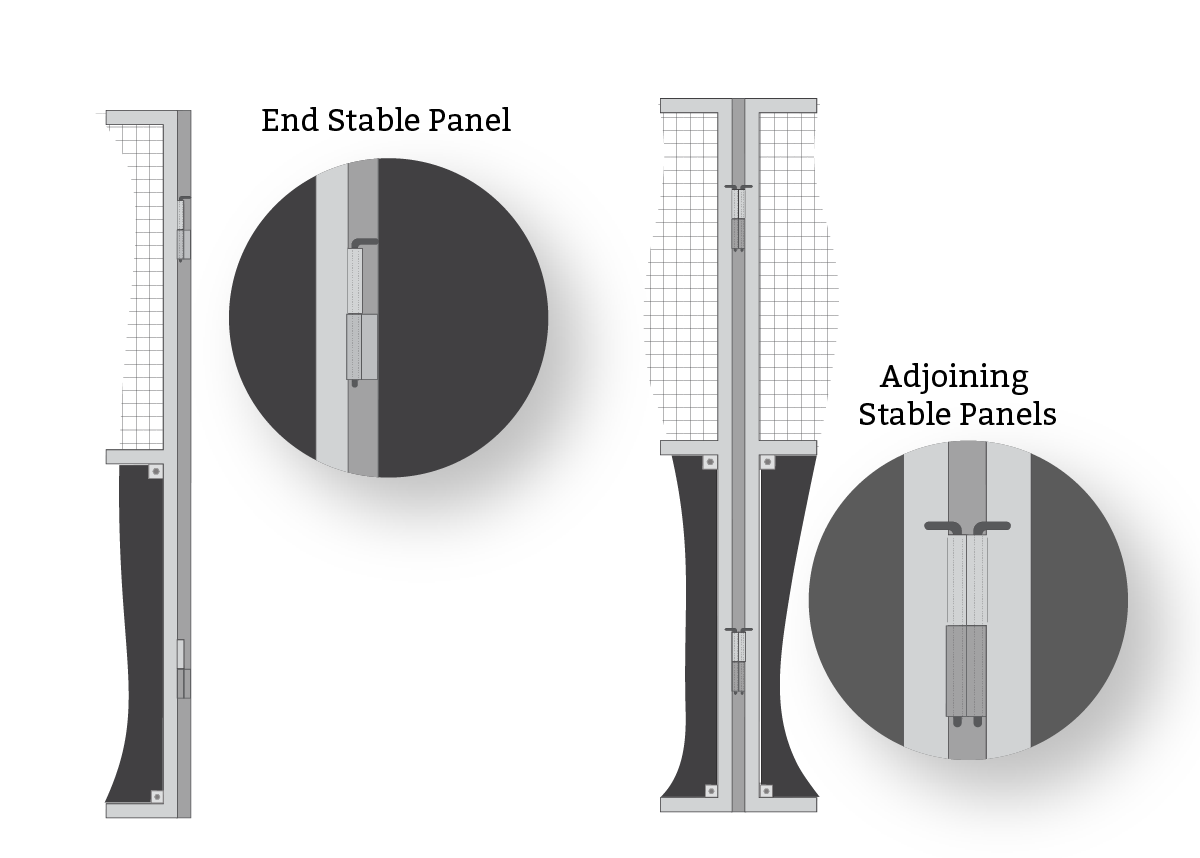

Q: Can I add more bays, tack rooms, or breezeways later?
A:
Every Guerilla Steel system is modular. You can start with 2 bays and add tack rooms, wash bays, or breezeways years later with matching welds and roofing lines.
Q: Do I need council approval for my stables?
A:
Requirements depend on your local council and the structure type. We provide full engineering spec sheets, drawings, and material details to make your application process straightforward and stress-free.
Q: What foundation do I need for my structure?
A:
A concrete slab is the gold standard for stability. However, our systems are designed to work on compacted road base, crusher dust, or level grass using specialised ground anchors ($100/bay).
Learn more in our Comprehensive Guide about stable Site Preparation
Q: Do I need council approval for my stables?
A:
Requirements depend on your local council and the structure type. We provide full engineering spec sheets, drawings, and material details to make your application process straightforward and stress-free.
Q: Can I DIY a retrofit into an existing shed?
A:
Yep. We offer flat-pack retrofit kits with everything included, easy to assemble with basic tools.
Just talk to us about the mounting options specific to your space to securing your stable panels to the existing structures.
Q: Is it possible to do a hybrid Install option
A:
A “half-DIY” path gives you the savings of a kit with the reliability of professional assembly. You purchase the flat-pack stable kit directly from the manufacturer (like Guerilla Steel), then hire a local builder or shed erector to put it together.
Because the frame and panels arrive pre-welded and pre-drilled, local tradespeople can complete the install quickly, often within a day or two for a small setup. You’ll typically save 20–40% compared to a full turnkey service, since you avoid contractor markups and project management fees.
The builder provides their own tools, lifting gear, and insurance coverage, which means you’re protected if something goes wrong during installation. You maintain control over timing, budget, and site preparation, while still getting a professionally aligned result.
Q: Is a DIY Stable build really that simple?
A:
If you’ve got basic tools and a level base, yes, but it’s not for everyone.
Building a stable means more than bolting panels together. Besides picking the right size and layout, prepare your site – manage drainage, airflow, and alignment. That’s why we include clear plans, photo guides, and phone support, and why many choose to bring in a builder.
Q: How long are your quotes valid?
A:
All quotes are firm for 30 days. Because steel prices fluctuate, we cannot hold pricing indefinitely, but we aim to honor original quotes whenever reasonable.
Q: Can I pick up my order instead of delivery?
A:
Yes. You can collect your order in kit form from our workshop. Just let us know in advance.
Q: What are your payment terms?
A:
A 50% deposit starts fabrication, with the balance due before delivery. Larger projects can use milestone payments.
Q: Where does Guerilla Steel deliver and install?
A:
We offer professional installation across South East Queensland and Northern NSW. For remote areas or interstate clients, we provide Australia-wide delivery of flat-pack kits with comprehensive phone support.
Q: What is the current lead time for a build?
A:
4–6 week lead time. Most custom and modular projects are completed within this window. We provide a definitive timeline at the quote stage based on current fabrication schedules and complexity.
