GS-RET-PACK-FIT1-3-2

Twin Shed Stable Retrofit 3 Panel 2 Bay Starter Kit

Indoor Retrofit Stable

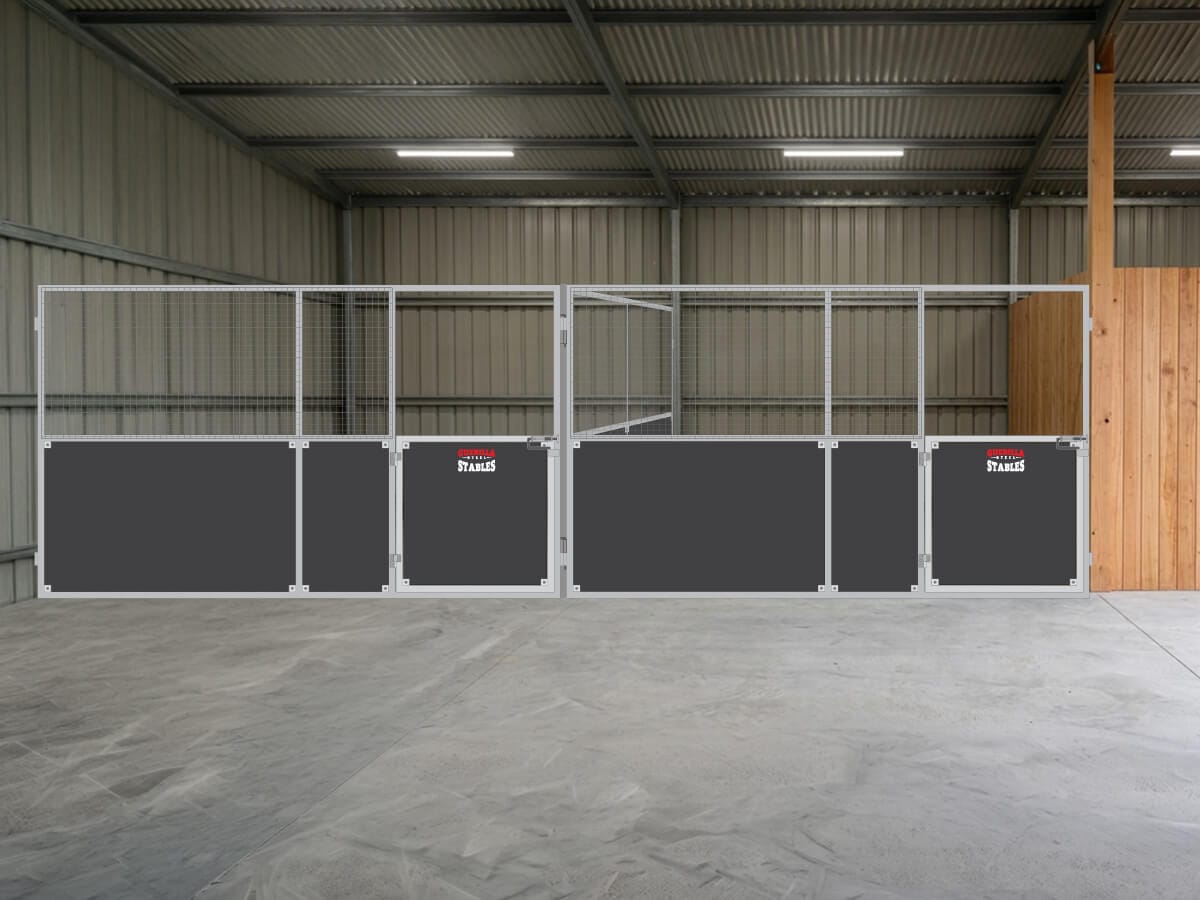

Twin bay retrofit kit for a shed 8.15 m wide wall to wall, making two 4 m × 4 m horse stables side by side. Two gated fronts and a centre divider run across the shed, with the shed walls closing off the rear and sides.

Australian made by Guerilla Steel: each panel is a single welded frame of 50 × 50 mm galvanised RHS. Panels can be freestanding, bolted down or fixed to the shed frame, and custom lengths can be made where the shed is a different width.

  • Panels included: 3 (2 fronts with gates, 1 divider)
  • Bays: 2 × 4 m × 4 m, side by side
  • Internal floor area: 32 m² (2 × 16 m²)
  • Suits: shed 8.15 m wide wall to wall, walls on three sides
  • Panel height: 2.4 m
  • Panels: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gates: 1500 × 1200 mm straight swing gate, one per bay
  • Frame: 50 × 50 mm galvanised RHS, prefabricated welded panels
Standard
Dimensions
4000mm L
×
4000mm D
×
2400mm H
STALL Count
2-bay
Inside
16m²
Installation
550/per bay

$4,290.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

Twin Bay Shed Conversion - 3-Panel Fit

DIY Install

Guerilla Steel Twin 3-Panel Retrofit Kit (32m²) – 8.15m Shed, Two Stable Bays

Indoor Retrofit Stable Specs

SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Professional polite and punctual Professional polite and punctual

Kate D

Verify review

Morgan and his team very skilled and knowledgeable in fabrication

Geoff Mills

Verify review

Retrofit 4 stables for me into my large farm shed. The work was excellent 100% Aussie steel and hand made wow

Sherelle French

Verify review

Morgan and his team went above and beyond for our work

Leanne Baker

Verify review
↳ More Info

Building Buying & Owning - Indoor Retrofit Stable

Indoor Retrofit Stable FAQs

It depends on how much of the existing shed you are using. With a complete four panel bay, the stable can usually be fixed directly to a concrete slab with Dynabolts. For two or three panel bays, where the shed wall forms part of the stable, we recommend reinforcing the wall with ply where needed. Panels can be fixed to existing posts or walls. Attachment options include steel plates, angle brackets and tek screws or attached with welds. For securing windows and other openings we offer custom fabricated bars or bracing.

Panels can be set up as standalone, self-supporting frames. Each Standard kit stable Panel is 4000mm or 5000mm Long x 50mm Wide. We can modify panels to join perfectly between your existing shed columns.

Yes. Sliding doors are useful for shed conversions and narrow aisles because they don’t swing out into your breezeway or driveway. They do need enough clear space beside the opening for the door to slide back.

The track assembly includes an anti-lift bracket to keep the door securely on track, plus a welded structural steel stop to handle repeated opening and closing. The latch can be operated with one hand, handy when you’re holding a horse.

Yes. Swing-out feeders and waterer brackets can be integrated into front or end panels, keeping feed tubs and fittings off the aisle floor.

The feeder’s supporting frame is fully welded to the main panel. The feed tub swings out for access and can be removed from its frame for washing, so you can refill and clean it without entering the stable.

Yes. We can make custom-sized, welded steel grillesprotect existing shed windows from inside the stable. Fixing points and bar spacing are selected to suit the opening, supporting structure and horses using the space.

For low windows, a standard stable panel may cross the opening. We can discuss a panel with a cut-out or a lower rear panel that fits around the window, preserving light and ventilation without putting pressure on the window frame.

Optional sloped steel flashing can cover an exposed sill to discourage chewing and reduce the ledge available for a hoof. Send us the window measurements, sill height and photos of the surrounding shed wall so we can recommend a suitable fit.
