GS-RET-PACK-CNR1-2-1

Corner Bay Shed Stable Retrofit Starter Kit

Indoor Retrofit Stable

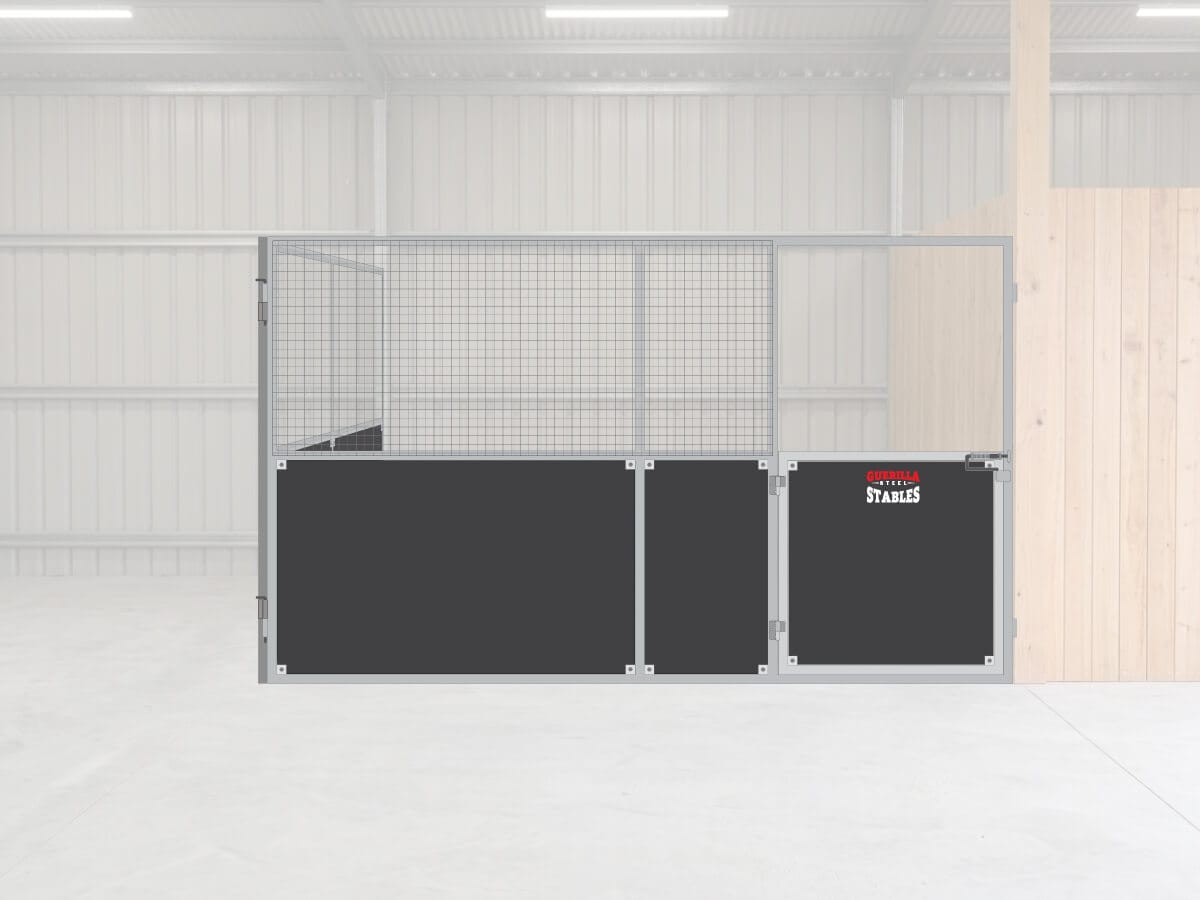

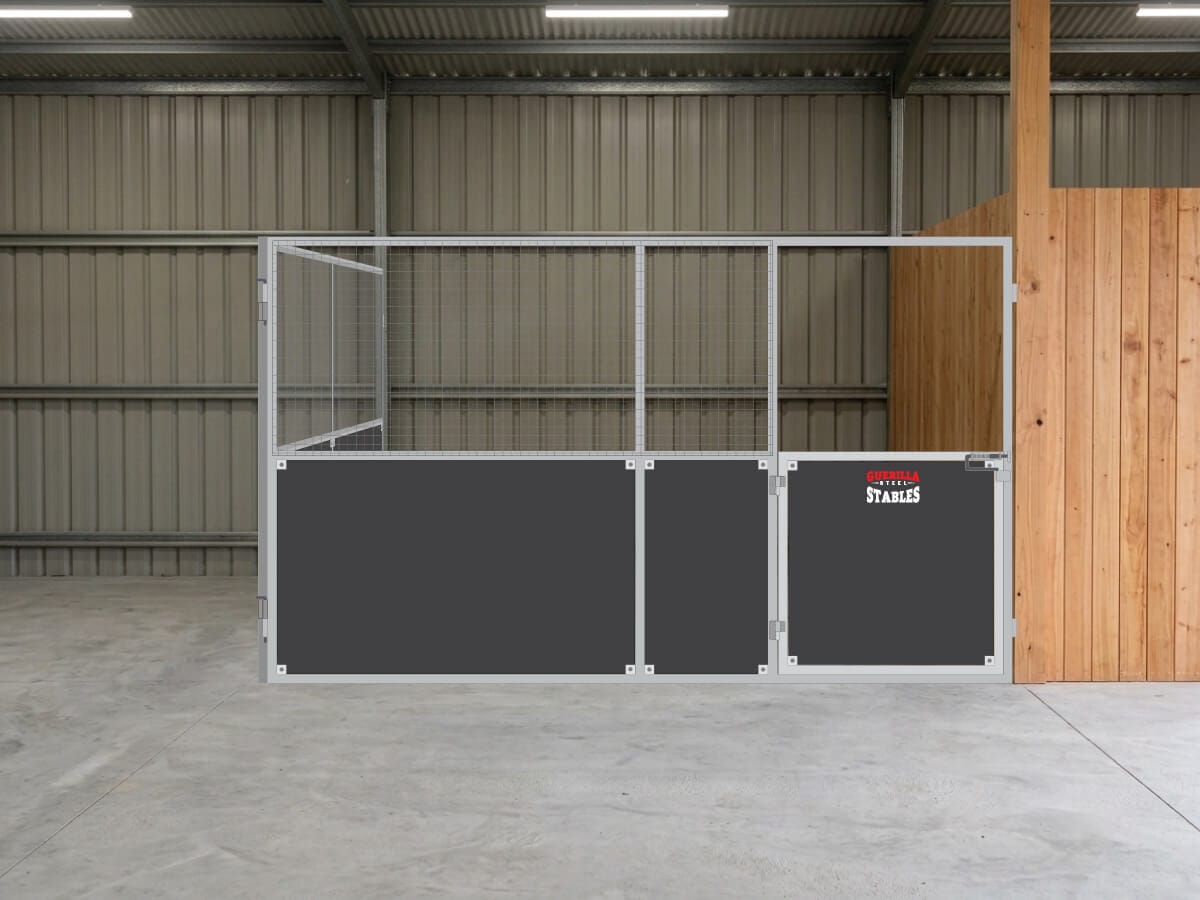

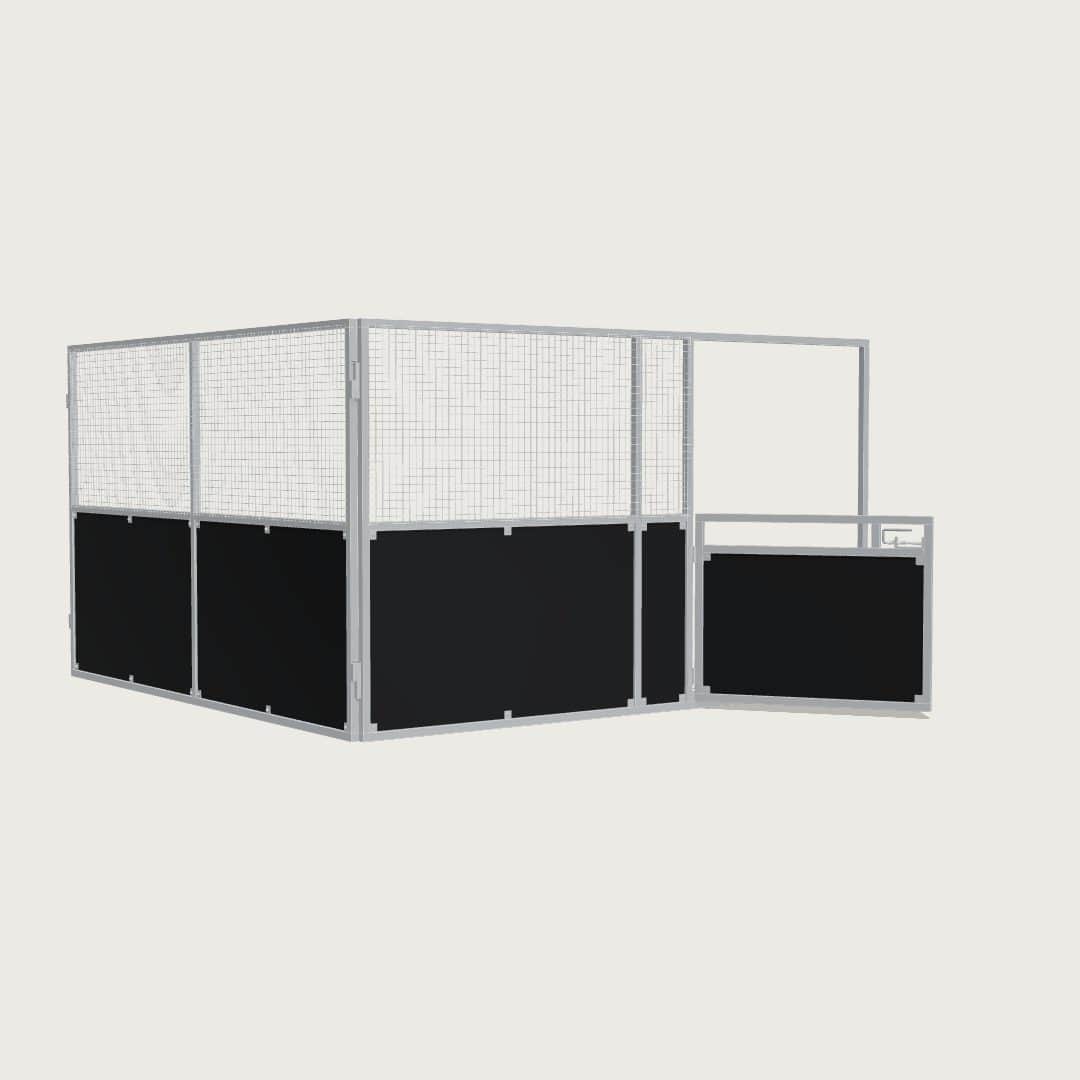

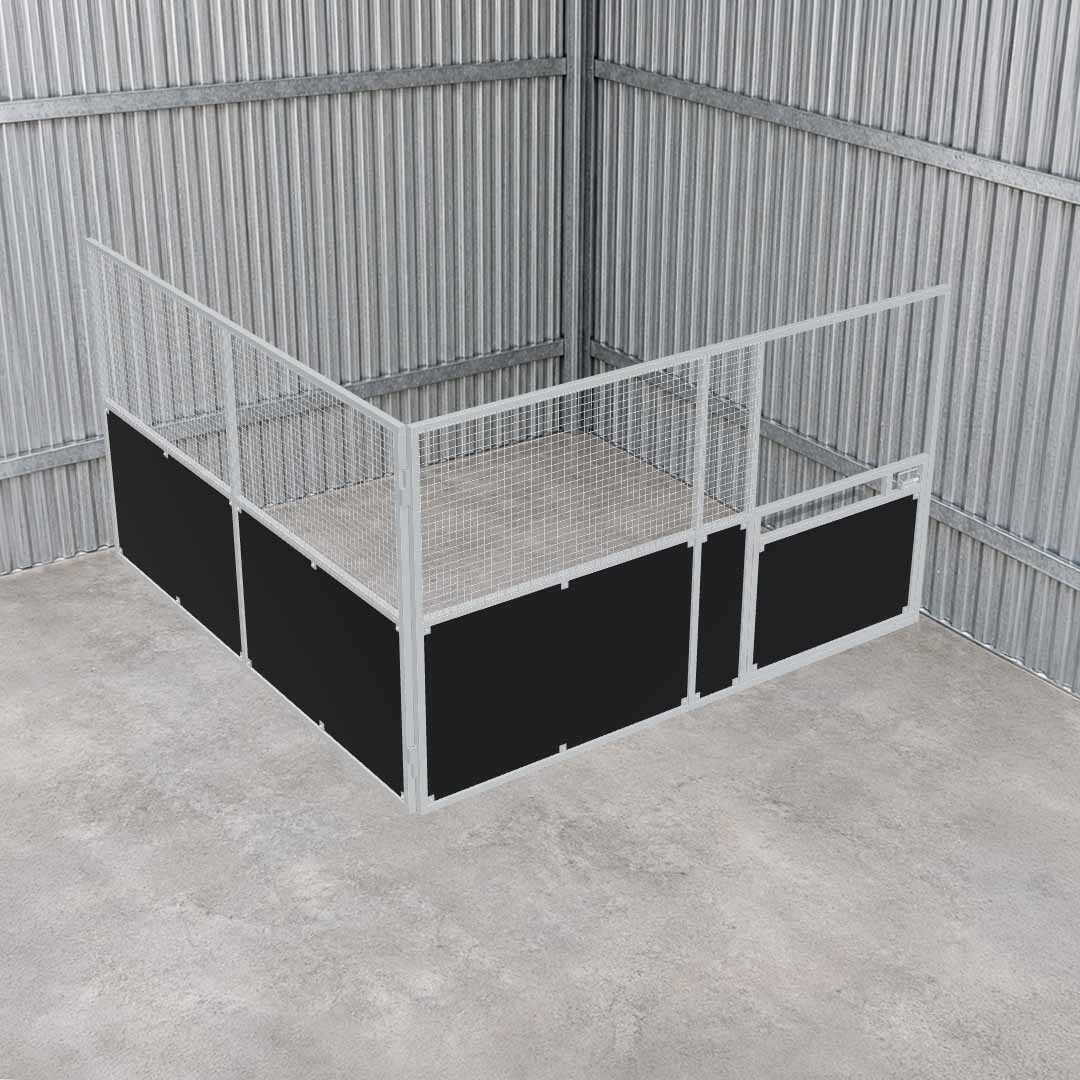

Corner bay retrofit kit that turns one corner of an existing shed into a 4 m × 4 m horse stable. A gated front panel and a side panel close off the corner, and the shed walls form the other two sides.

Panels are cut and welded in our Yatala, QLD workshop from 50 × 50 mm galvanised RHS. They can stand free, bolt to the slab, or screw or weld to the shed frame. The shed needs a roof over the bay and walls suitable for a horse, and more panels can be added later.

  • Panels included: 2 (1 front with gate, 1 side)
  • Bay: 1 × 4 m × 4 m, set into a shed corner
  • Internal floor area: 16 m²
  • Panel height: 2.4 m
  • Panels: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gate: 1500 × 1200 mm straight swing gate
  • Frame: 50 × 50 mm galvanised RHS, welded panels
Standard
Dimensions
4000mm L
×
4000mm D
×
2400mm H
STALL Count
1-bay
Inside
16m²
Installation
550/per bay

$2,750.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

Convert a Shed Corner into a Horse Stable

DIY Install, First-Time Horse Owners

Guerilla Steel Corner Bay Retrofit Kit (16m²) – Shed to Stable

Indoor Retrofit Stable Specs

SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

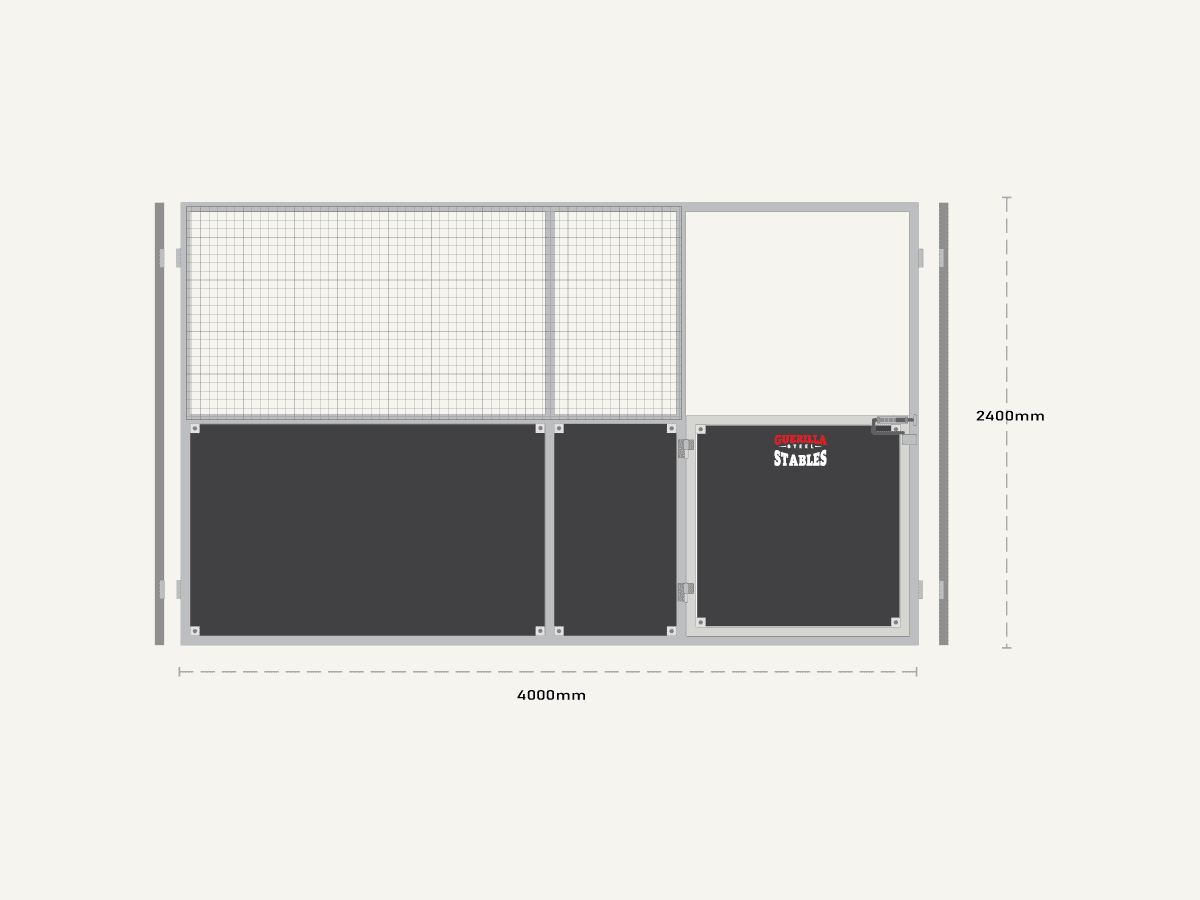

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
freestanding steel horse stall with mesh panels retrofitted inside an existing shed bay GS-140 / November 2025
Sunshine Coast
QLD

Emergency Indoor Stable Retrofit

Size
1 Bays
4m x 4m (16m²)
MODEL / Type
Base Model
Indoor Retrofit Stable
Built
1 days
Guerilla Crew

When a client’s horse faced $2,500-a-night veterinary boarding, we transformed their existing shed into a secure recovery stable in just three days. Custom steel panels were fabricated and installed without demolition, creating a safe, ventilated space. The modular design now serves as permanent, adaptable stabling long after the emergency ended.

★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Excellent quality smooth communication and fast service Morgan is obviously knowledgeable

Michelle Marshall

Verify review

Great quality stables and affordable price Great customer service

Connor Scowcroft

Verify review

Epic fire pit Morgan didn’t hesitate to make a modification for us

JP H (JP)

Verify review

Professional polite and punctual Professional polite and punctual

Kate D

Verify review
↳ More Info

Building Buying & Owning - Indoor Retrofit Stable

Indoor Retrofit Stable FAQs

It depends on how much of the existing shed you are using. With a complete four panel bay, the stable can usually be fixed directly to a concrete slab with Dynabolts. For two or three panel bays, where the shed wall forms part of the stable, we recommend reinforcing the wall with ply where needed. Panels can be fixed to existing posts or walls. Attachment options include steel plates, angle brackets and tek screws or attached with welds. For securing windows and other openings we offer custom fabricated bars or bracing.

Panels can be set up as standalone, self-supporting frames. Each Standard kit stable Panel is 4000mm or 5000mm Long x 50mm Wide. We can modify panels to join perfectly between your existing shed columns.

Yes. Sliding doors are useful for shed conversions and narrow aisles because they don’t swing out into your breezeway or driveway. They do need enough clear space beside the opening for the door to slide back.

The track assembly includes an anti-lift bracket to keep the door securely on track, plus a welded structural steel stop to handle repeated opening and closing. The latch can be operated with one hand, handy when you’re holding a horse.

Yes. Swing-out feeders and waterer brackets can be integrated into front or end panels, keeping feed tubs and fittings off the aisle floor.

The feeder’s supporting frame is fully welded to the main panel. The feed tub swings out for access and can be removed from its frame for washing, so you can refill and clean it without entering the stable.

Yes. We can make custom-sized, welded steel grillesprotect existing shed windows from inside the stable. Fixing points and bar spacing are selected to suit the opening, supporting structure and horses using the space.

For low windows, a standard stable panel may cross the opening. We can discuss a panel with a cut-out or a lower rear panel that fits around the window, preserving light and ventilation without putting pressure on the window frame.

Optional sloped steel flashing can cover an exposed sill to discourage chewing and reduce the ledge available for a hoof. Send us the window measurements, sill height and photos of the surrounding shed wall so we can recommend a suitable fit.
