3-Bay Modular Shed-to-Stable

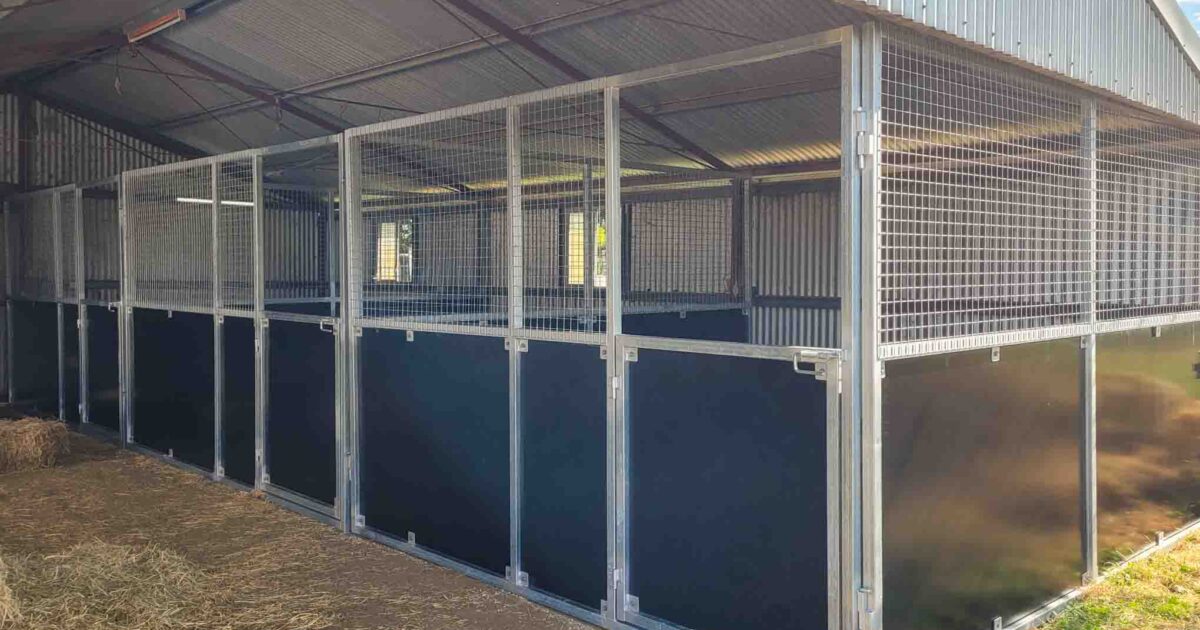

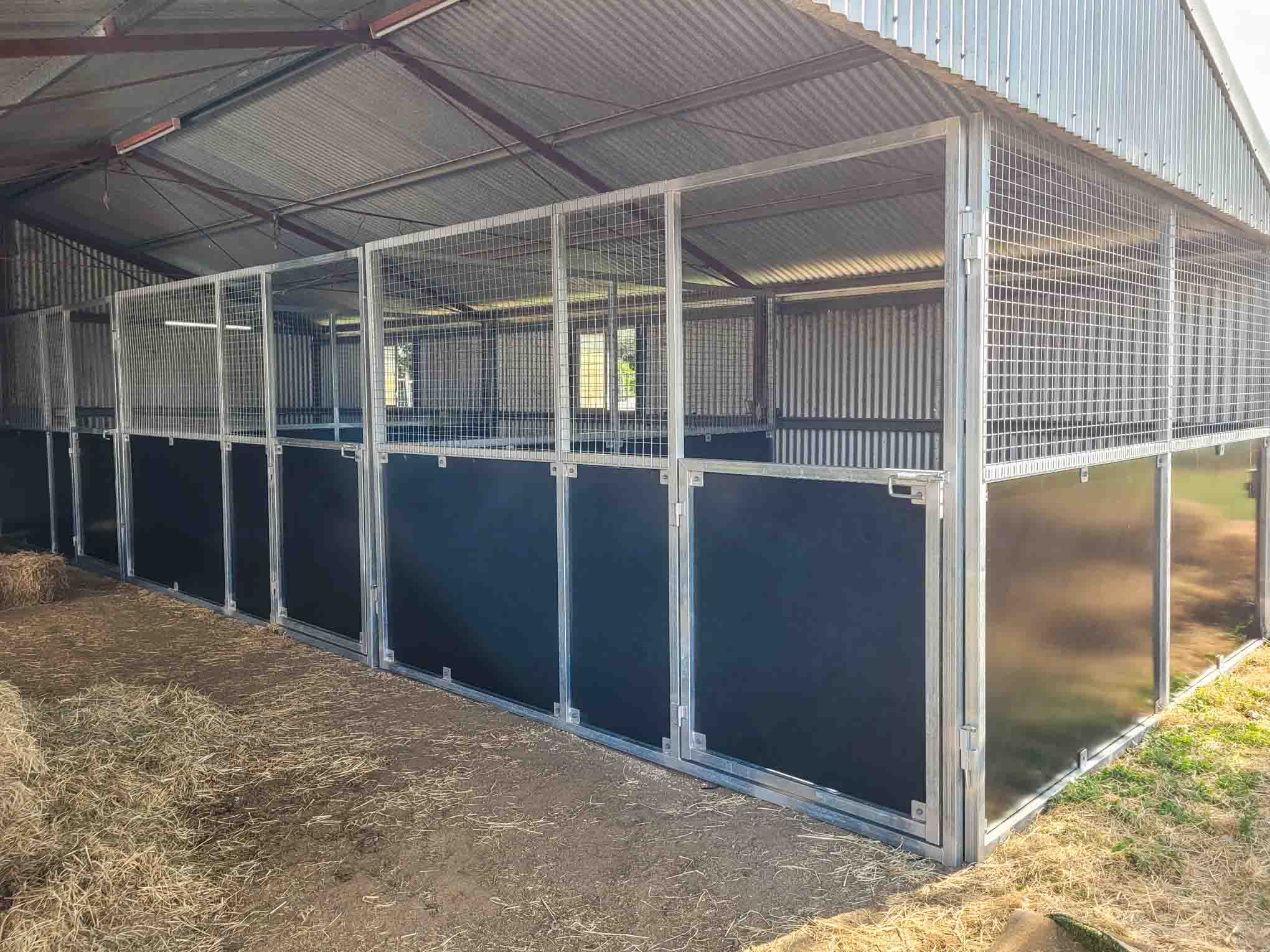

Our Northern Rivers customer needed an existing farm shed turned into a practical stable line without building a completely new structure. They already had a large machinery shed with unused space along one wall. Rather than constructing a separate stable block, the decision was made to retrofit three full-size indoor boxes using Guerilla Steel modular stable panels.

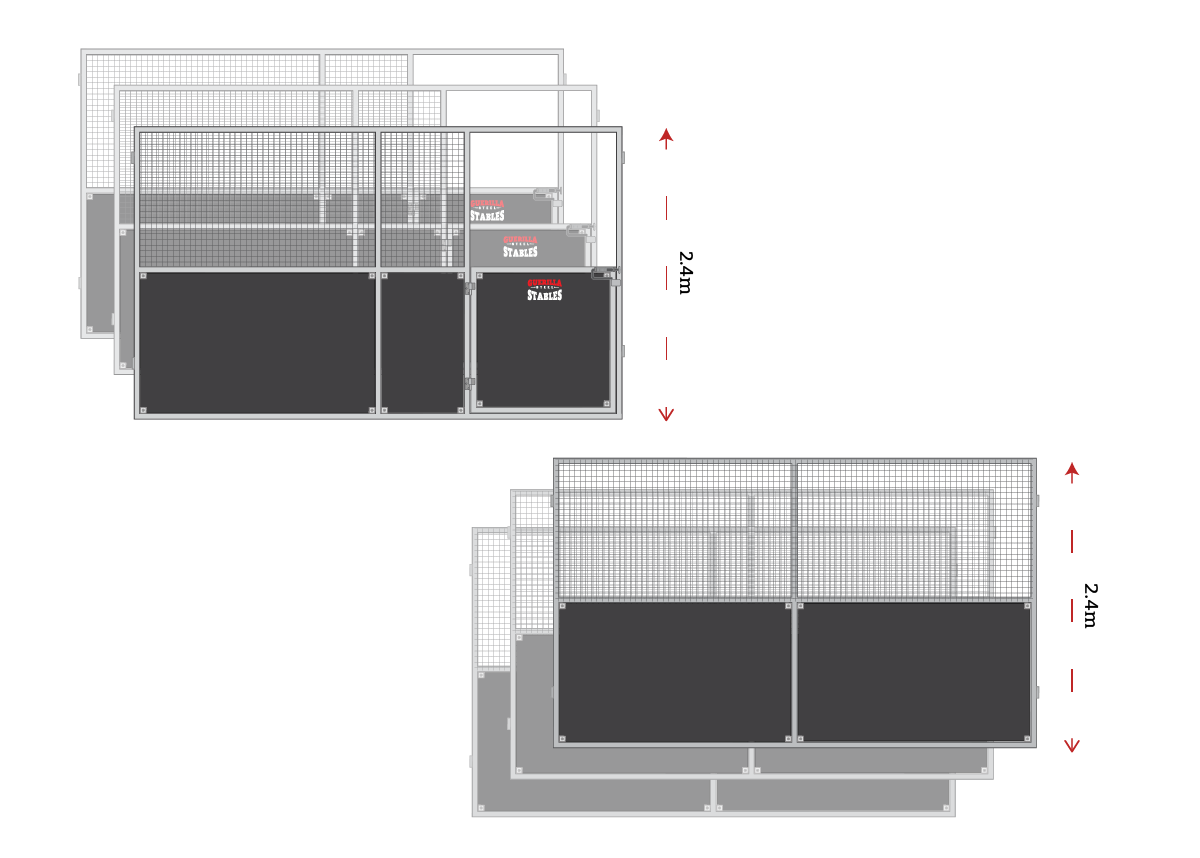

Each stall measures 4 m by 4 m with a 2.4 m height, giving horses enough space to stand comfortably, turn, and lie down. The stables are fixed directly to the shed structure and floor, using the existing building as the roof and rear wall. This approach significantly reduces build cost while still creating proper horse boxes suitable for daily use.

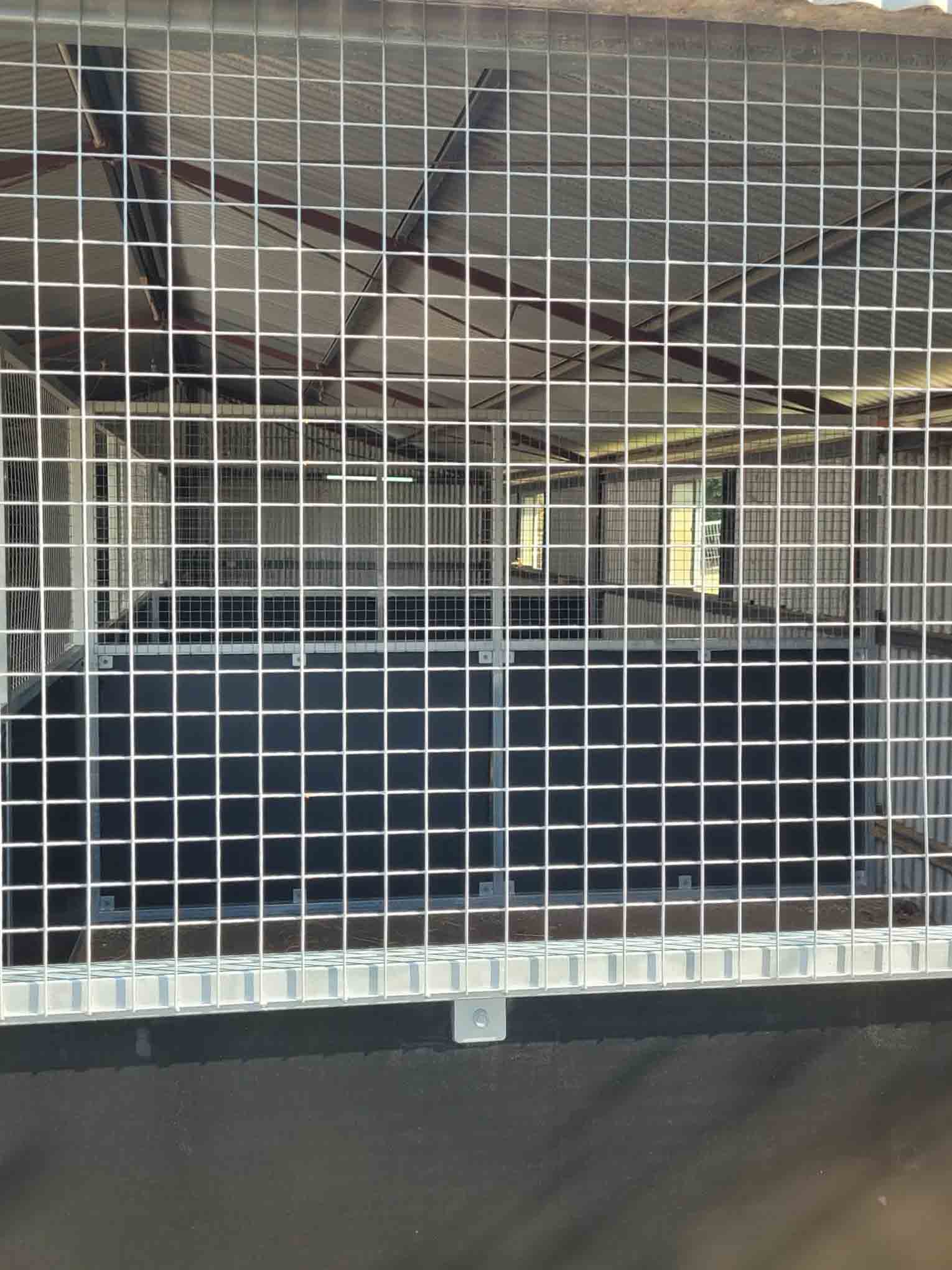

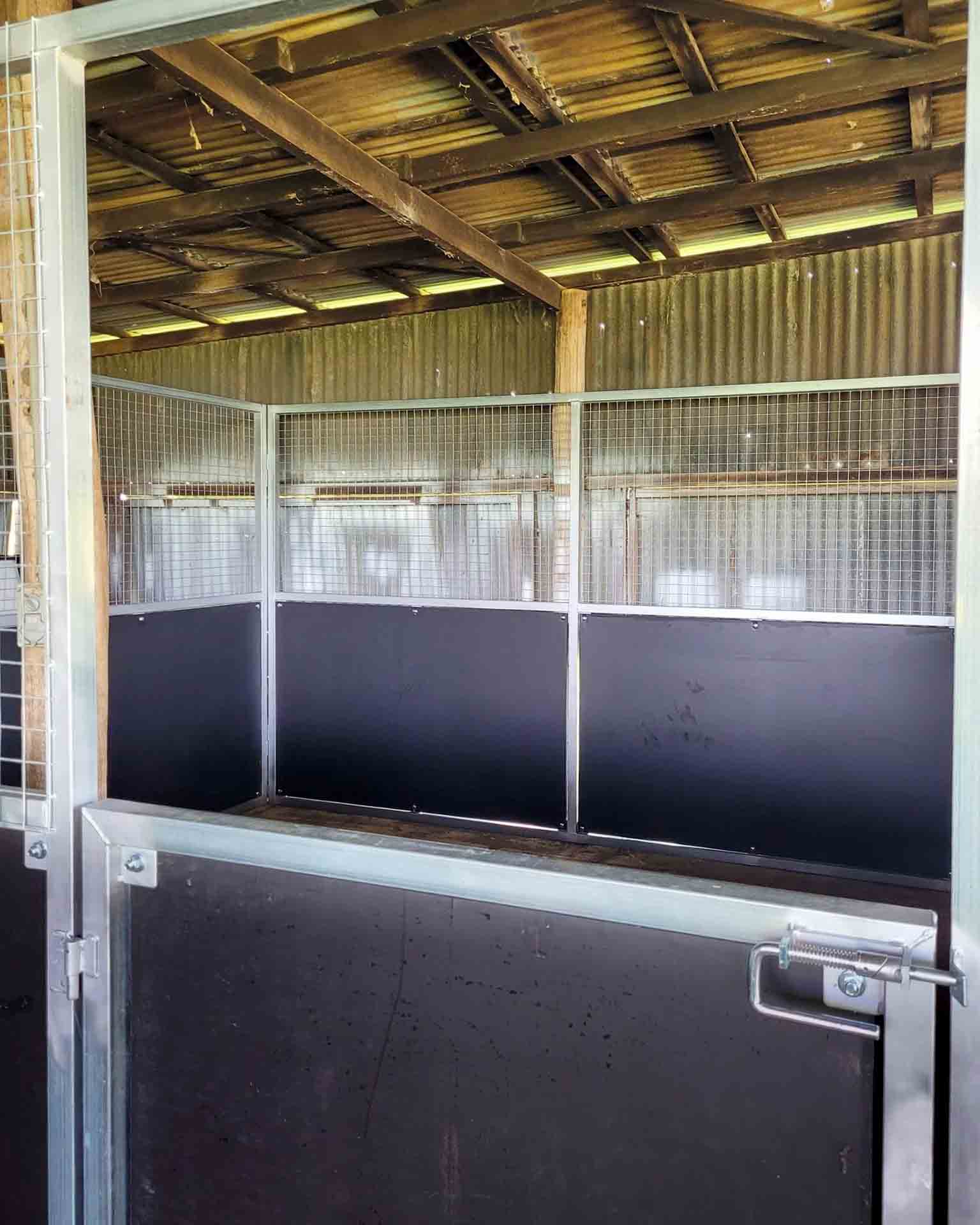

The panels use a proven ply-and-mesh combination design. Solid form ply kickboards protect the lower half of the stall from kicks and wear, while heavy galvanised mesh above allows air and light to move freely between boxes and through the shed. Horses can see each other and the wider shed space, which typically reduces stress compared with fully enclosed stalls.

By converting part of the shed into a stable line, the owner now has three dry, undercover stalls positioned close to feed storage, tack and yard access. The layout also leaves room to extend the stable run later if more boxes or a tack room are required.

Efficient Shed Retrofit Installation

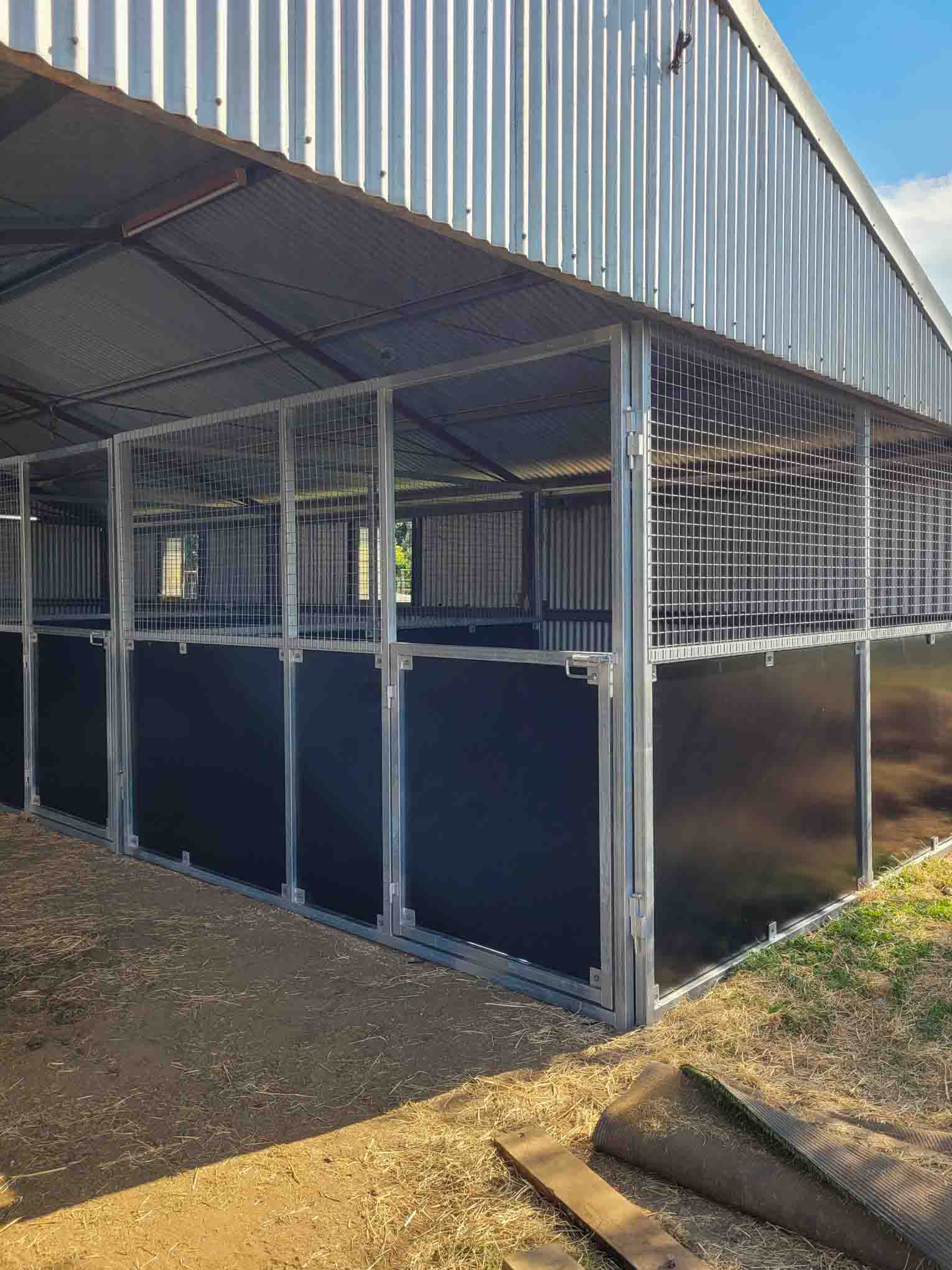

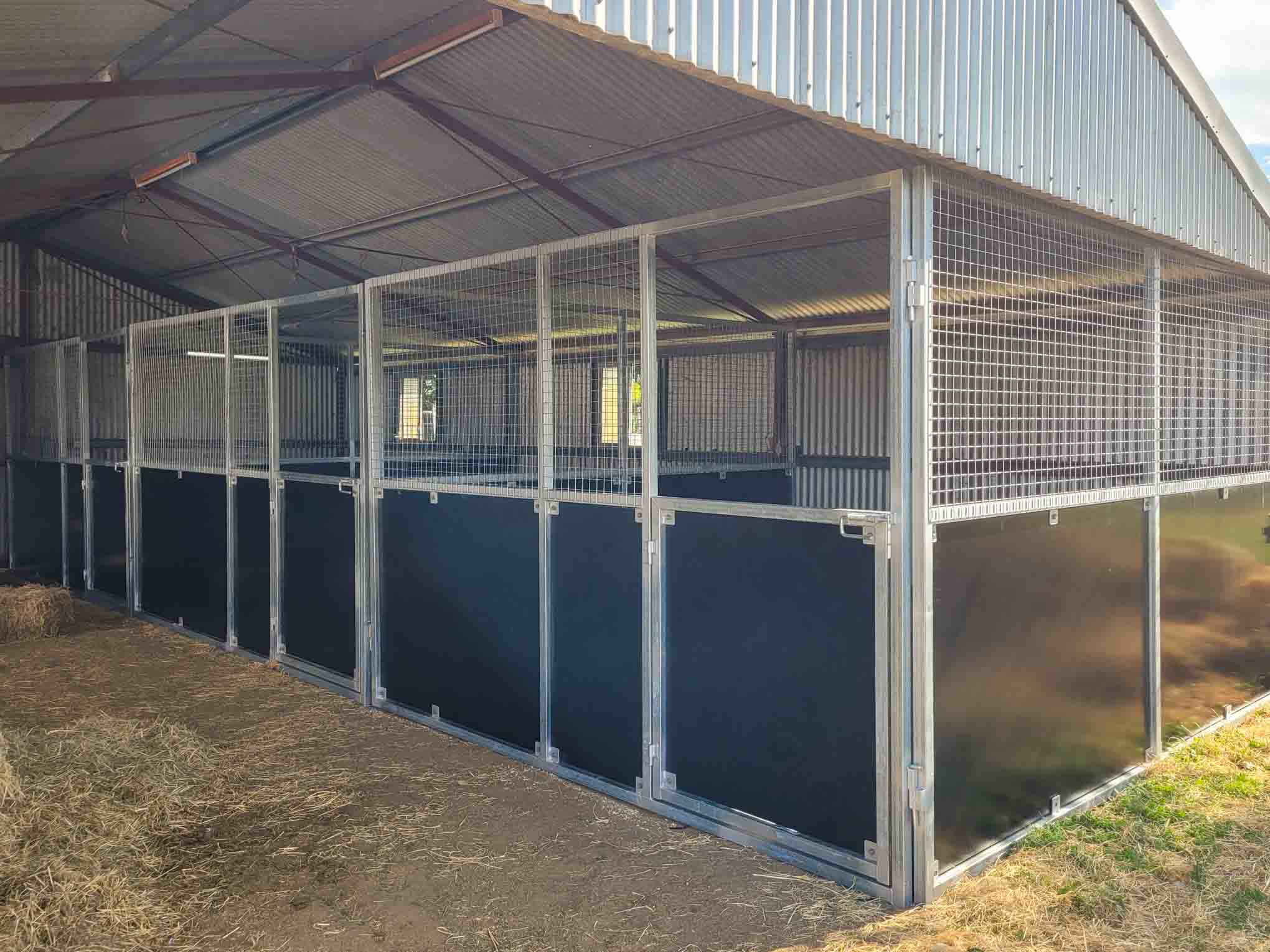

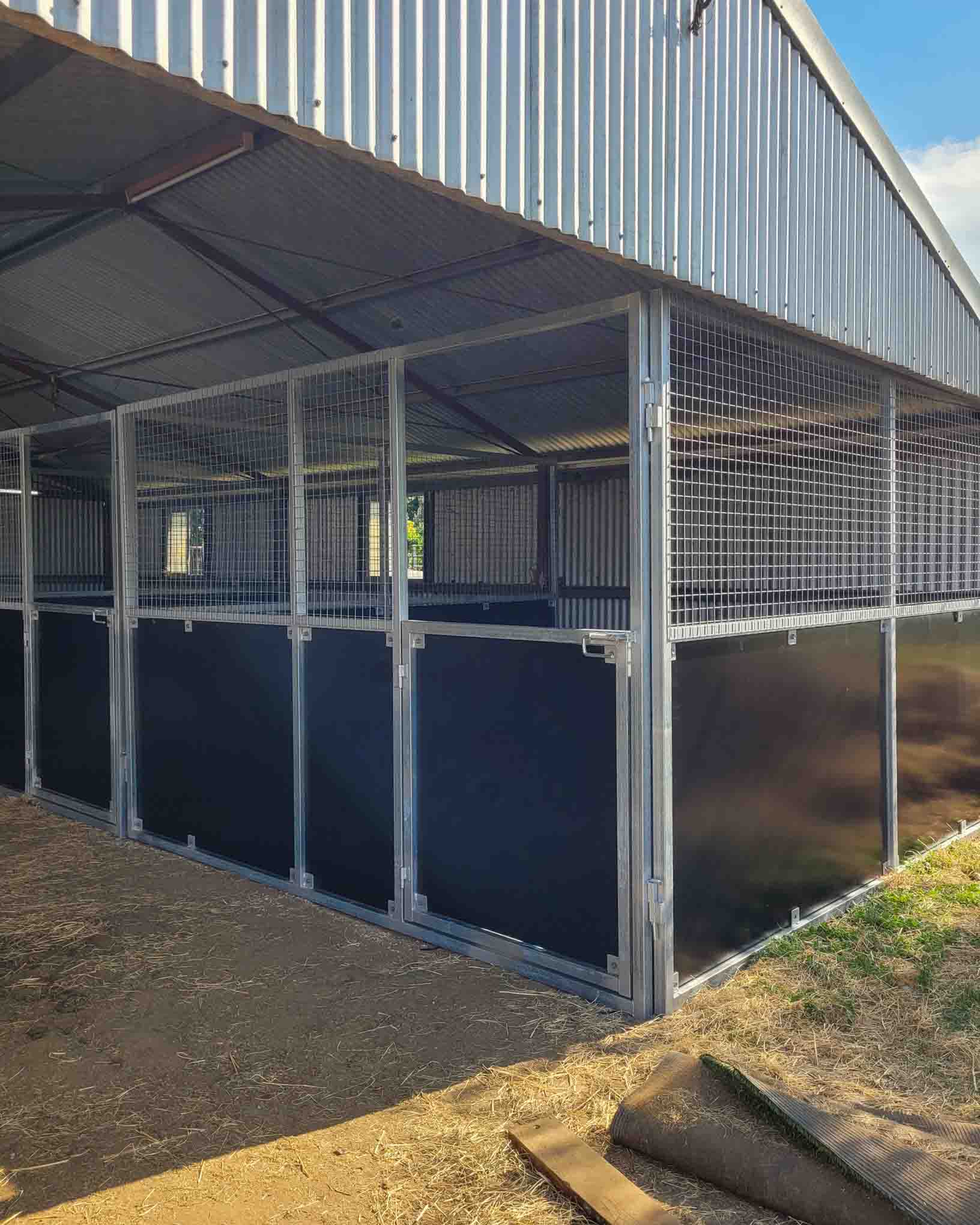

The stable panels are mounted directly onto the existing shed wall and slab, using the shed structure for roof cover and rear enclosure. This avoids the cost of roofing, all rear panels and one end panel – while still delivering permanent-grade horse boxes.

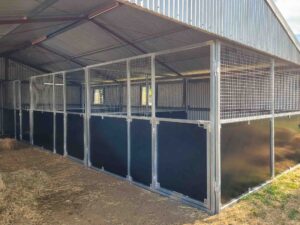

Full-Size 4×4 m Stalls Ply and Mesh Panel Construction

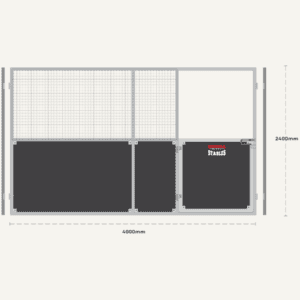

Each stall measures 4 m by 4 m with a 2.4 m height, providing generous space for most saddle horses to stand, turn, and lie down comfortably while maintaining good ventilation. The stables use Guerilla Steel’s combination wall panels featuring 17 mm form ply kickboards and heavy-duty galvanised mesh uppers. This design balances strength, horse safety, airflow and visibility between stalls.

Undercover Stable Workflow with ride in access

Because the stables sit inside the shed, horses can be handled, fed and mucked out under cover. This improves daily workflow during heavy rain or extreme sun while keeping footing drier and easier to maintain.
