Stable design & Layouts: planning your horse stable for easy Workflow

Picking a stable layout isn’t just about stalls, it’s about how you’ll live with it every day. Build smart today so you’re not fighting your build tomorrow. Face breezeways north for QLD airflow, centre tack near arenas, and keep aisles wide enough so wheelbarrows don’t jam. Go modular so you can add wash bays or yards later without tearing anything down. Site high, drain well, and plan your cleaning flow before pouring concrete. Narrow aisles, low roofs, or fixed walls will lock you in.

Match the Layout to Your Life

Start with how you actually work, not how a brochure looks.
For example – A hobby breeder needs space to muck out alone; a commercial yard needs tractor access and vehicle flow.

• Row layouts suit smaller properties with limited frontage and clear boundaries. They’re simple, functional, and easy to expand linearly.
• U-shape layouts make sense when efficiency matters, feed, tack, and wash bays can form a natural triangle, cutting walking time between daily tasks.
• Central breezeways, common in Queensland and Northern NSW, suit hot climates where airflow beats walls.

Each layout type changes how you move. If you plan to grow, pick the system that matches your next stage, not just the current one. Owners who plan for later expansion will always save more in the long run.

Site and Climate Calls That Stick

The best layout on paper still fails if the site fights it.
Orientation, drainage, and local climate dictate daily comfort and structural longevity.

In Queensland, face doors northeast to catch the summer breeze and avoid the direct afternoon sun.
Put wash bays on the low side so water drains away naturally, ideally over compacted gravel, not onto concrete where it pools.
If you’re on clay soil, build up with at least 150 millimetres of road base to prevent bogging.
Keep 1 metre clearance around the structure for gutter drainage and access.

Good design in this phase doesn’t just prevent issues, it stops them from being permanent. Once the slab’s down, you’ve locked in your airflow, your drainage, and your daily workflow. And in high humidity regions, poor ventilation doesn’t just smell bad; it breeds respiratory problems fast.

Workflow Hacks That Save Hours

Every decision you make before build day affects how much time you spend on chores afterward.

• Aisles should be no less than three metres wide. That’s enough for a wheelbarrow and a horse to pass comfortably. Any less, and you’ll be dodging handles for years.
• Place your tack room close to the arena, every saved trip across the paddock in the rain adds up.
• Align feed zones with waste zones to keep pathways straight and prevent cross-traffic.
• Mesh tops above doors or gaps between panels create natural cross-ventilation and reduce ammonia build-up.

Well-planned layouts cut cleaning time by up to 30 percent. Over a year, that’s hundreds of hours saved and far less fatigue.

Future-Proof Versus Locked-In

What you build today will decide how easy it is to adapt tomorrow.

Modular steel systems let you expand bay by bay without waste. Start with two stalls and a tack room, then bolt on a wash bay or feed room when needed. Each section can unbolt cleanly, no grinding, no demolition.

That flexibility holds real resale value too. Buyers see modular systems as moveable assets, not fixed costs.

But some choices do limit you. A central concrete drain locks you into one layout forever. Low roofs restrict ventilation and make upgrades for larger breeds impossible.

Plan for the horse you’ll own in five years, not just the one in your paddock today.

Design Choices That Make Chores Easier

Workflow efficiency isn’t just about movement, it’s about daily comfort.

• Smooth interior surfaces and sealed joints hose down faster.
• Rubber mats over gravel bases provide both cushioning and drainage.
• Automatic waterers on a shared line remove one of the most time-consuming chores.
• Tool racks or storage hooks beside each bay reduce backtracking and clutter.

Every minute saved here adds up. Owners often tell us their new stables “run themselves, and that’s the goal. Design the workflow so the structure supports you, not the other way around.

2 Bay Shelter High Airflow Split-Mesh Ply

See the Guerilla Steel Build

GS-632 / June 2026 ✦ Customised

QLD

Size

2 Bays

8m x 4m (32m²)

MODEL / Type

High Airflow

Shelter

Built

1 day

Guerilla Team

1 Horse Stable DIY Build

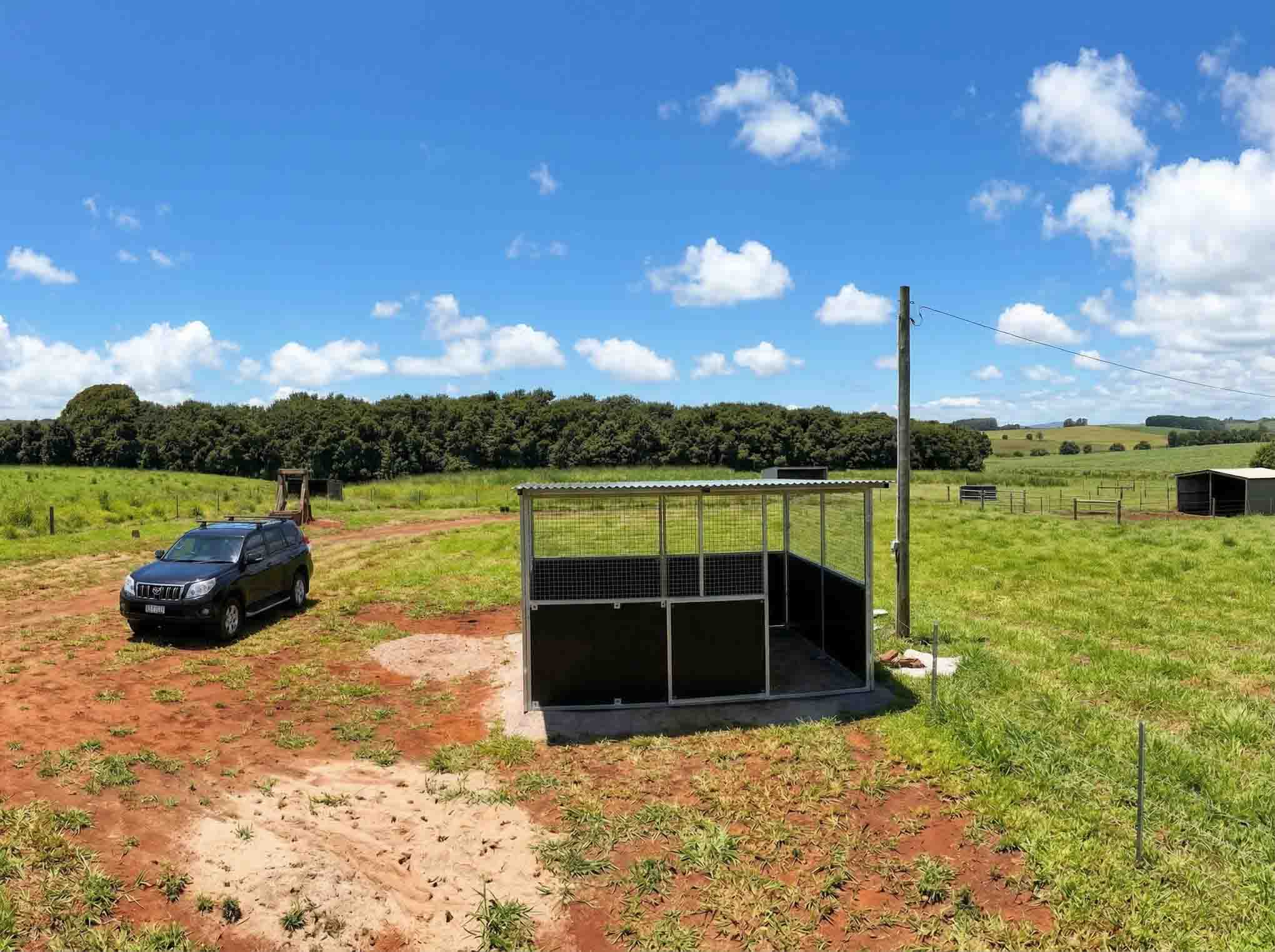

A DIY 4×4 metre single bay horse stable installed in Nerang, Gold Coast, using the Guerilla Steel modular system. Featuring a galvanised steel frame, mesh upper panels, and solid kick panels, this paddock stable offers durable, easy-to-assemble shelter with good airflow, ideal for private horse owners seeking a simple, strong setup.

See the Guerilla Steel Build

GS-132 / December 2025

Nerang

QLD

Size

1 Bays

4m x 4m (16m²)

MODEL / Type

Base Model

Horse Stable

Built

1 Day

DIY

See all our recent Builds

Get the workflow engineering right

Layout isn’t about looks; it’s workflow design and engineering to suit. Get it right and every routine becomes smoother for decades. Build for airflow, movement, and future change.
Cut labour, protect resale, and make your structure work as hard as you do.

Guerilla Steel Stables builds for the owners who think ahead, because the best design is the one that keeps paying you back every single day.
