RHS Galvanised Steel
Standard 1 Bay Stable Kit

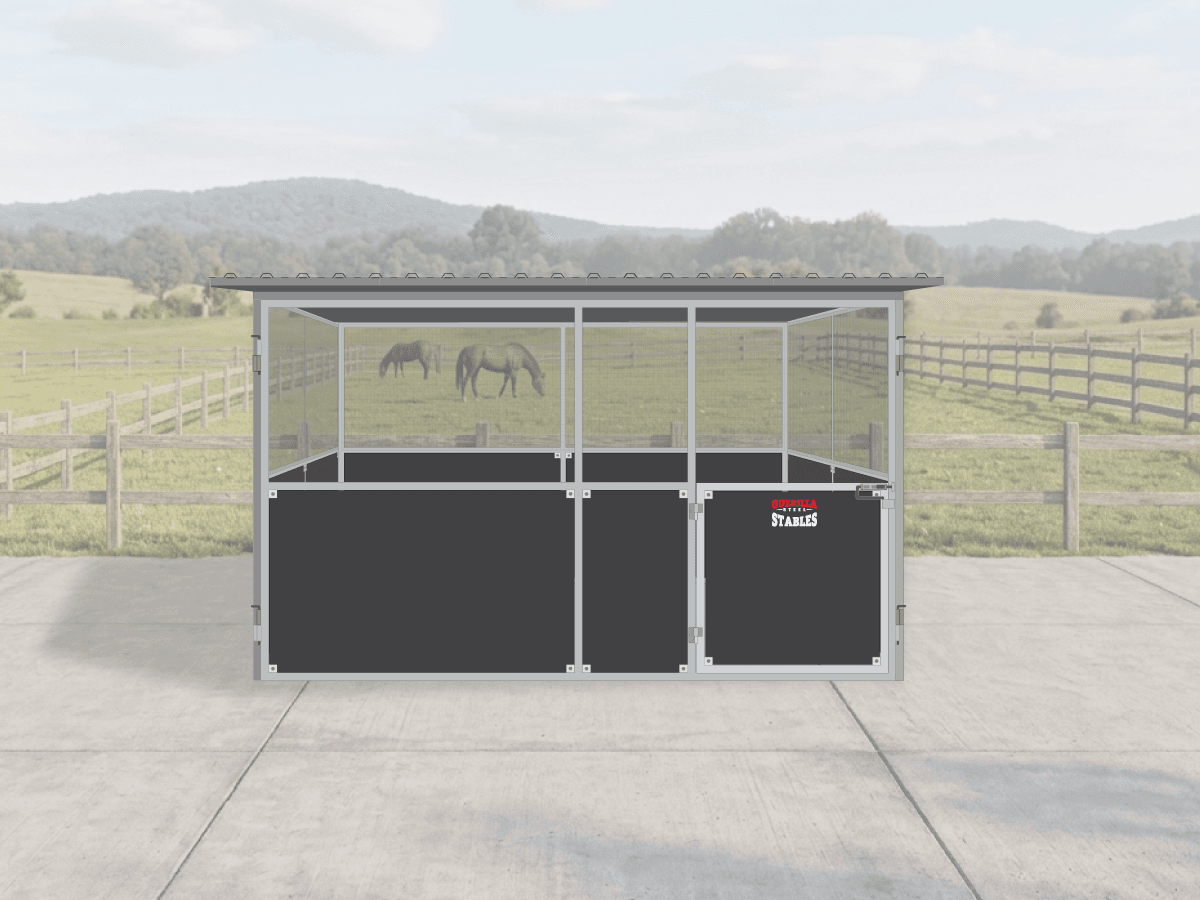

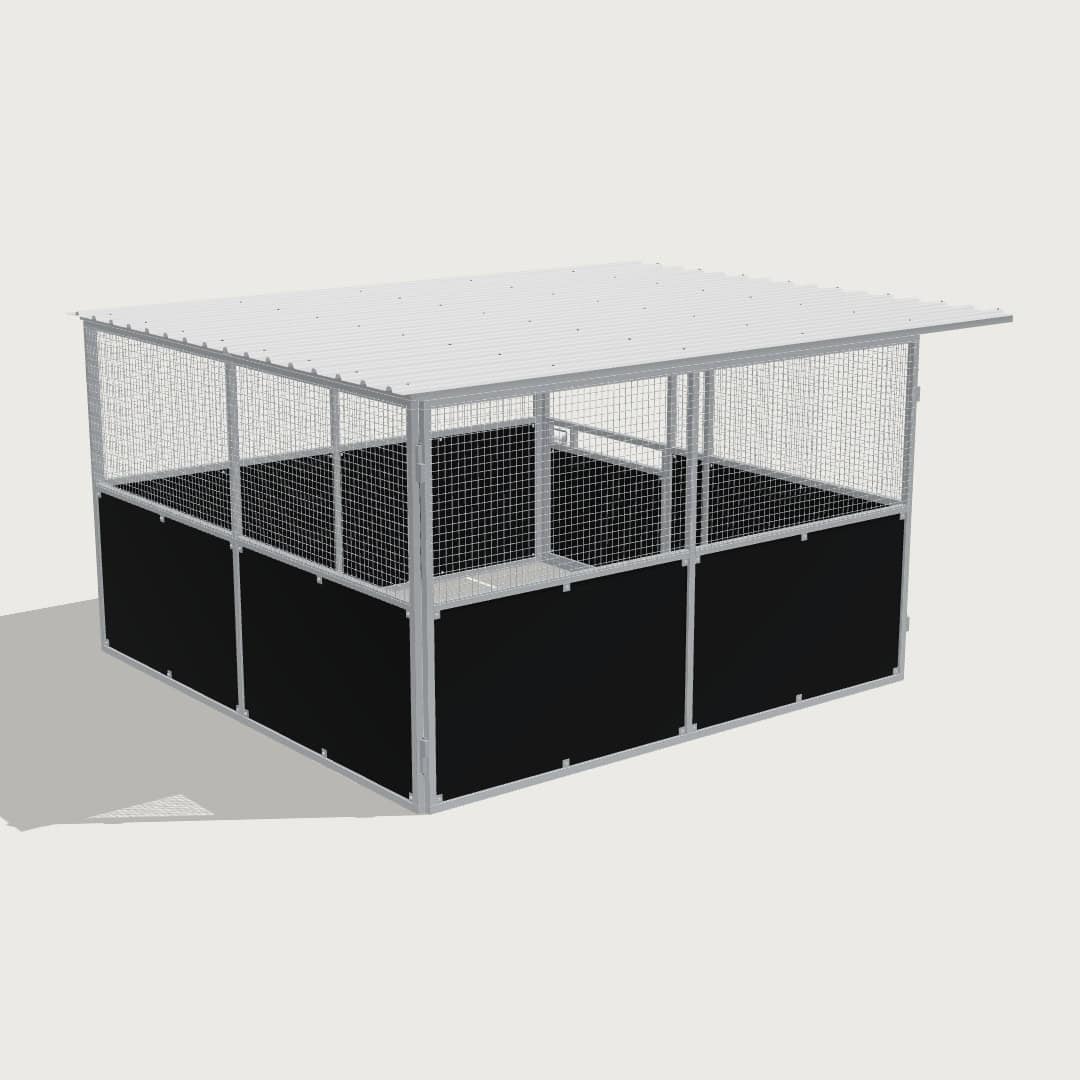

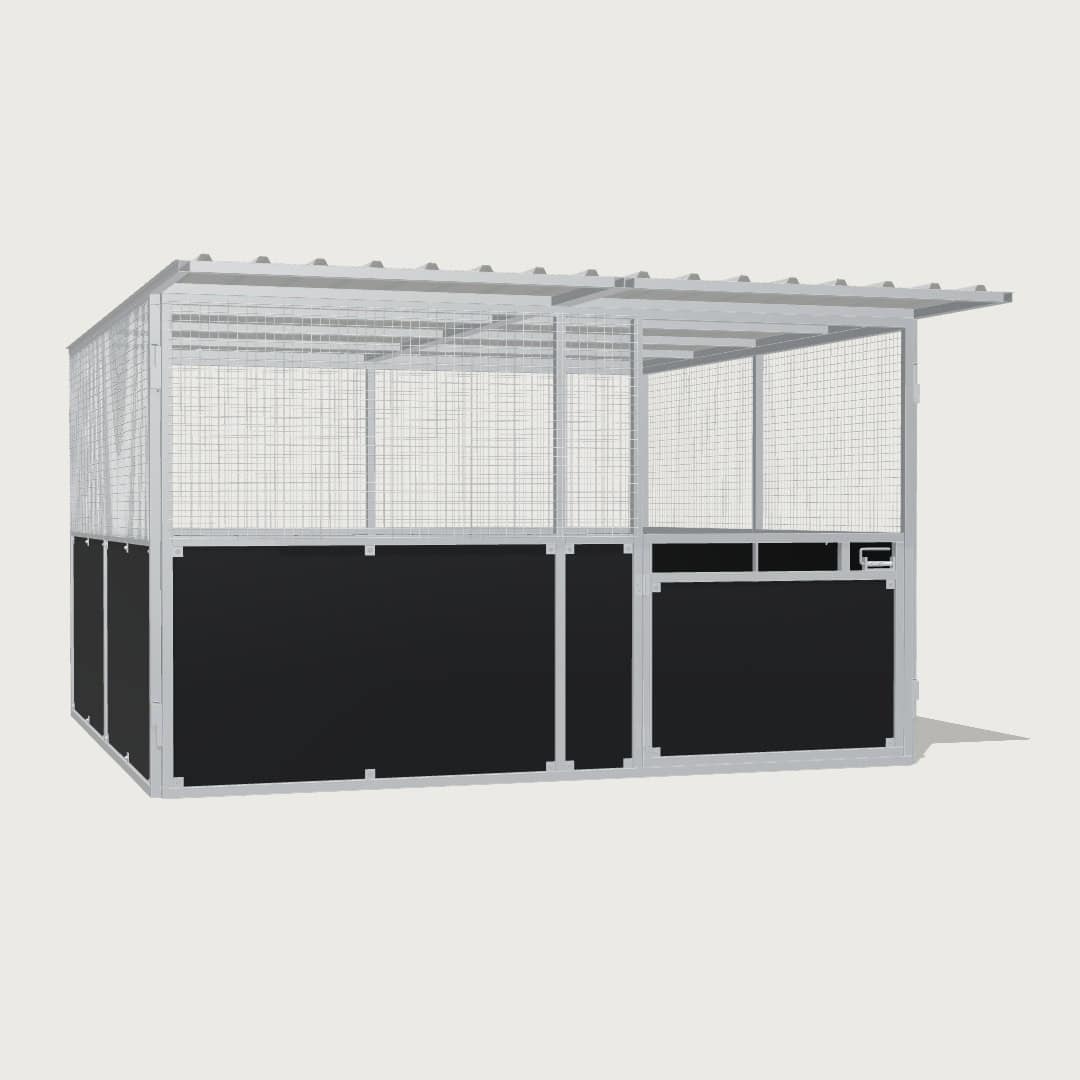

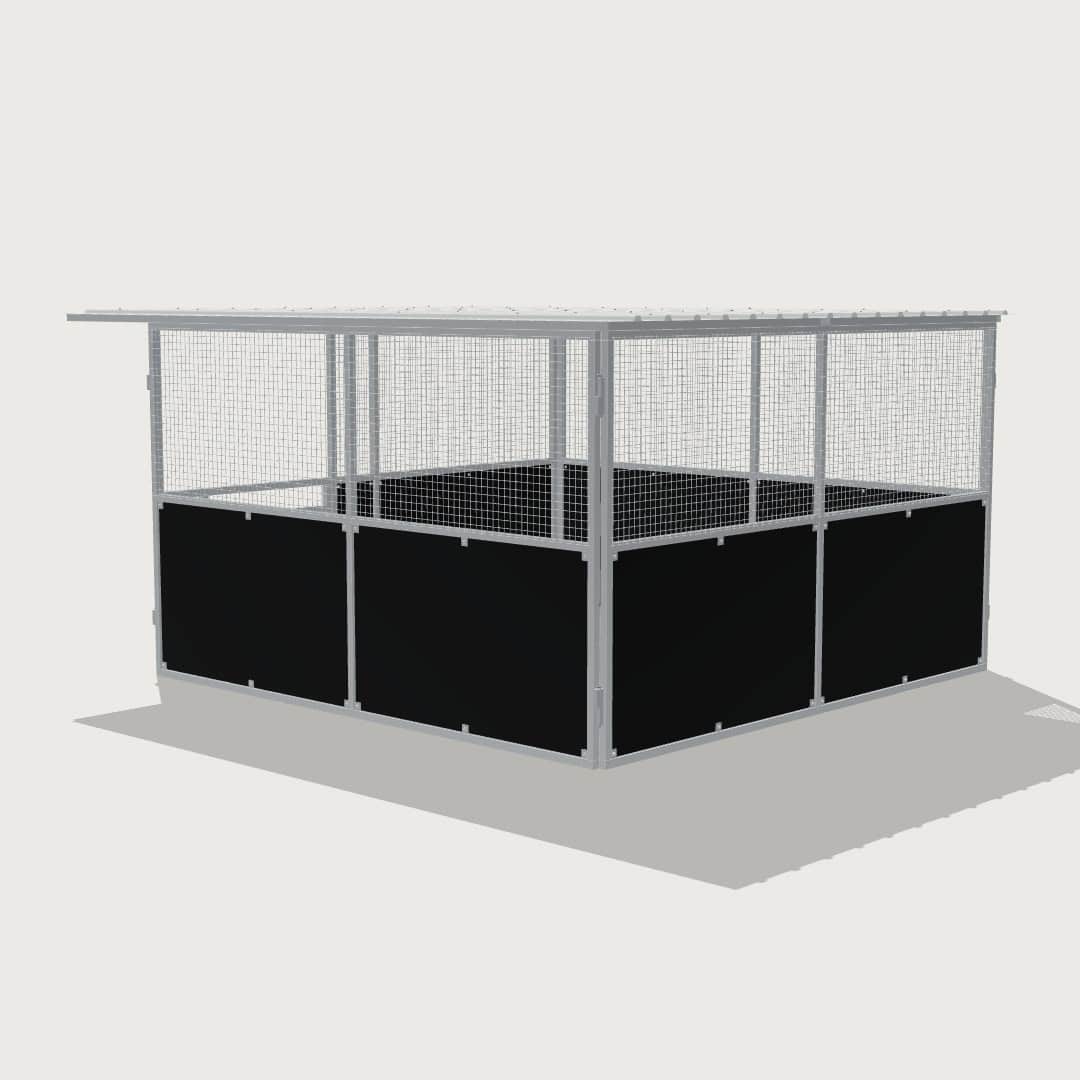

Single-bay horse stable kit with a 4 m × 4 m bay, sized for one horse, a pony or miniatures on a small property. A flat 2.4 m roof sits over ply lower panels and galvanised mesh above, so the bay stays shaded with air moving through.

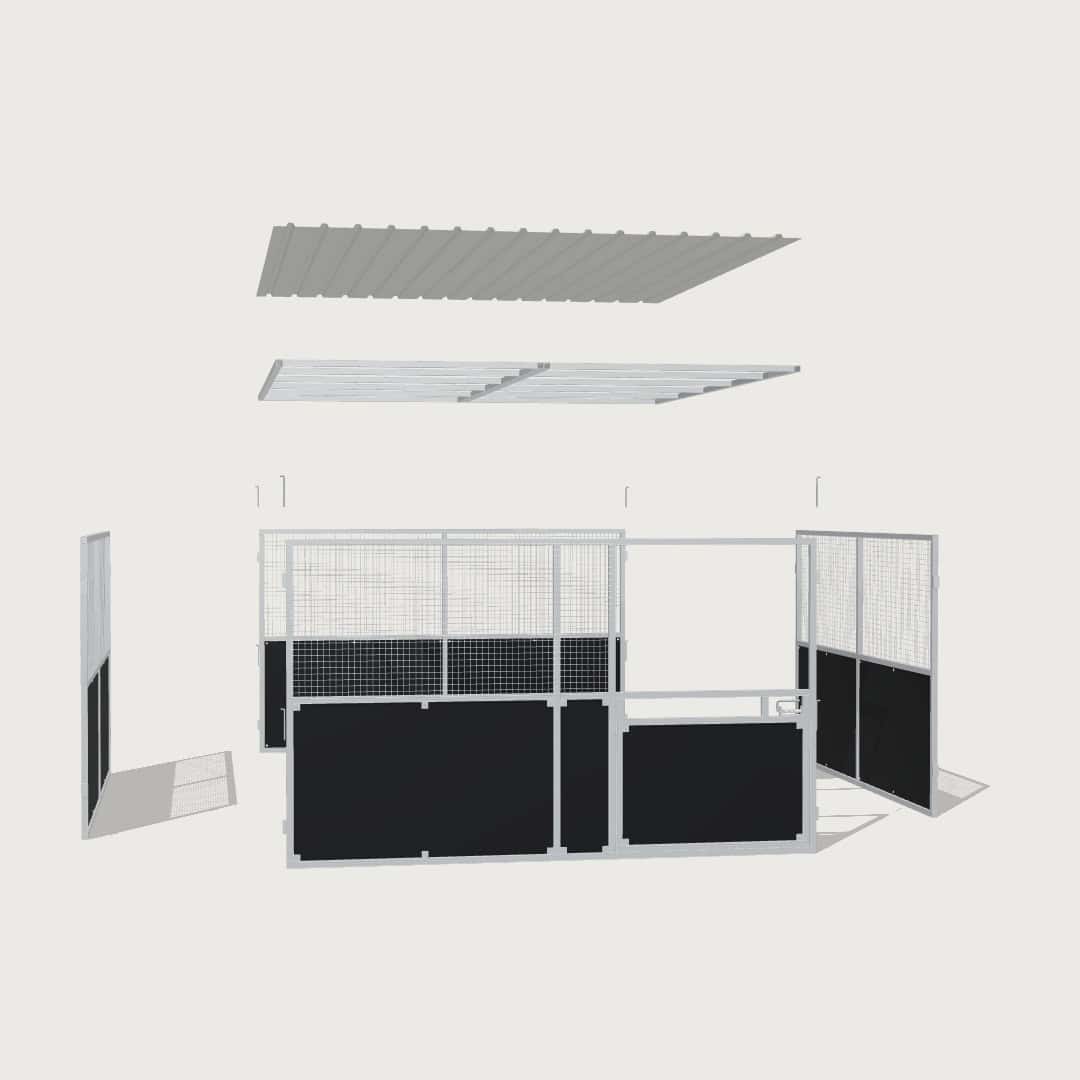

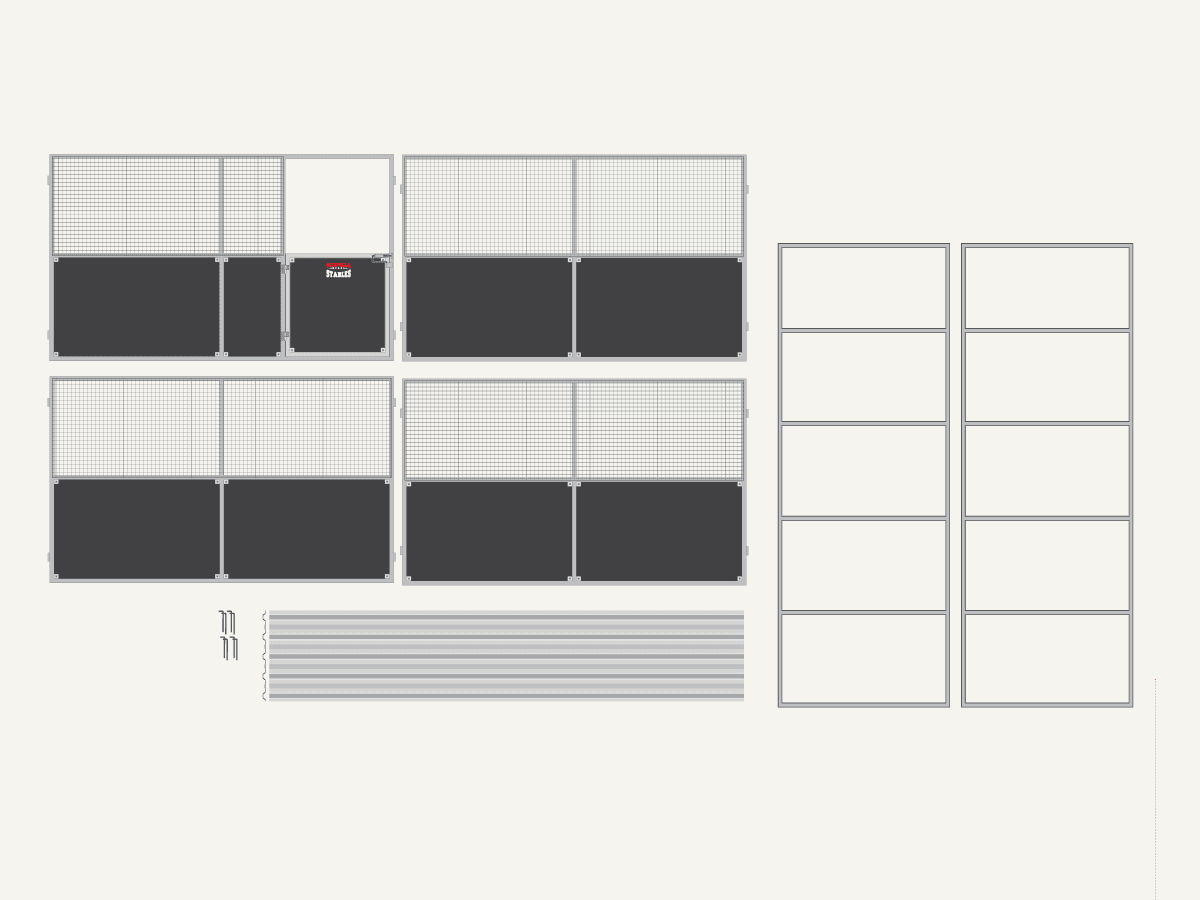

Each wall is a single welded panel of 50 × 50 mm galvanised RHS, made in our Yatala, QLD workshop. Panels join with cattle drop pins and sleeves, so the stable can be extended, moved or reconfigured later. Supplied as a flat-pack kit for DIY assembly, or installed by our team in South East QLD and Northern NSW.
- Bays: 1 × 4 m front
- Internal floor area: 16 m² (4 × 4 m)

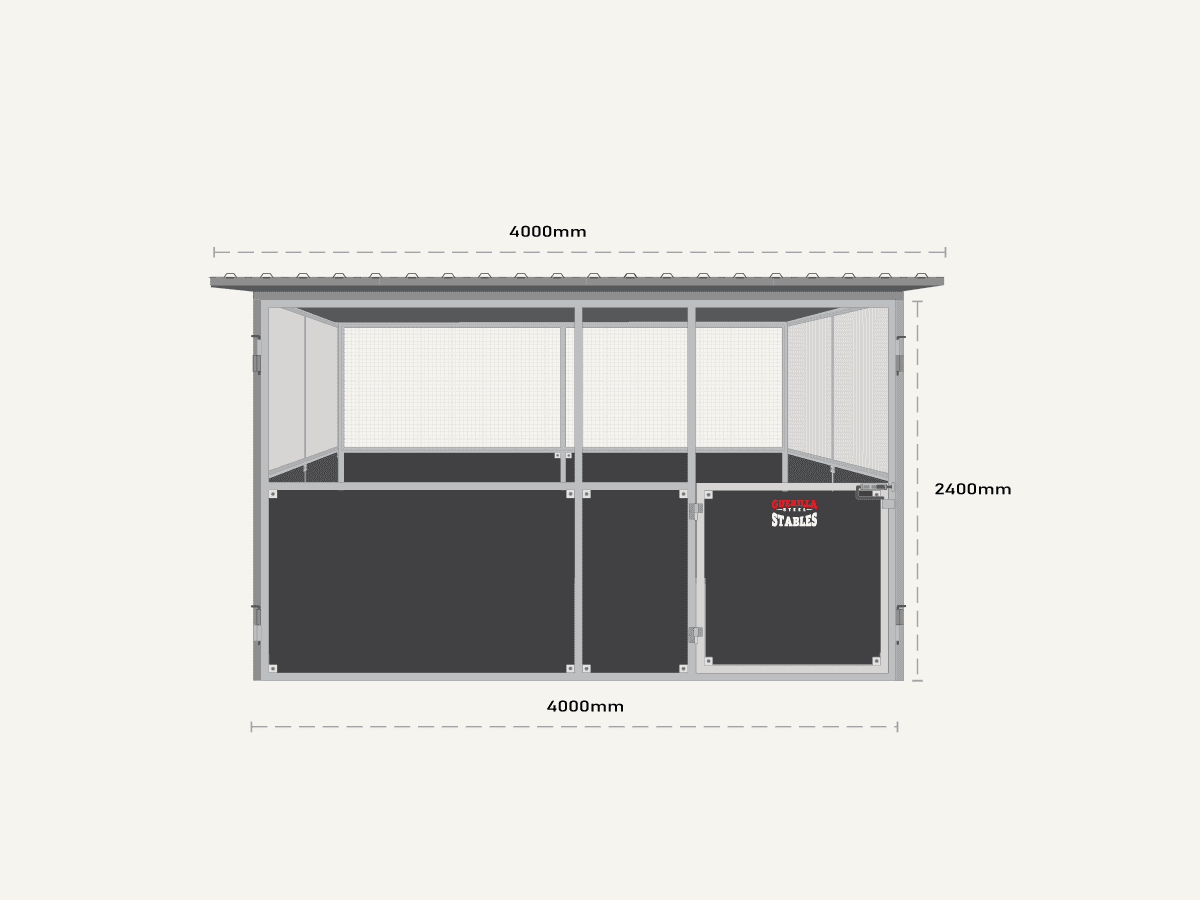

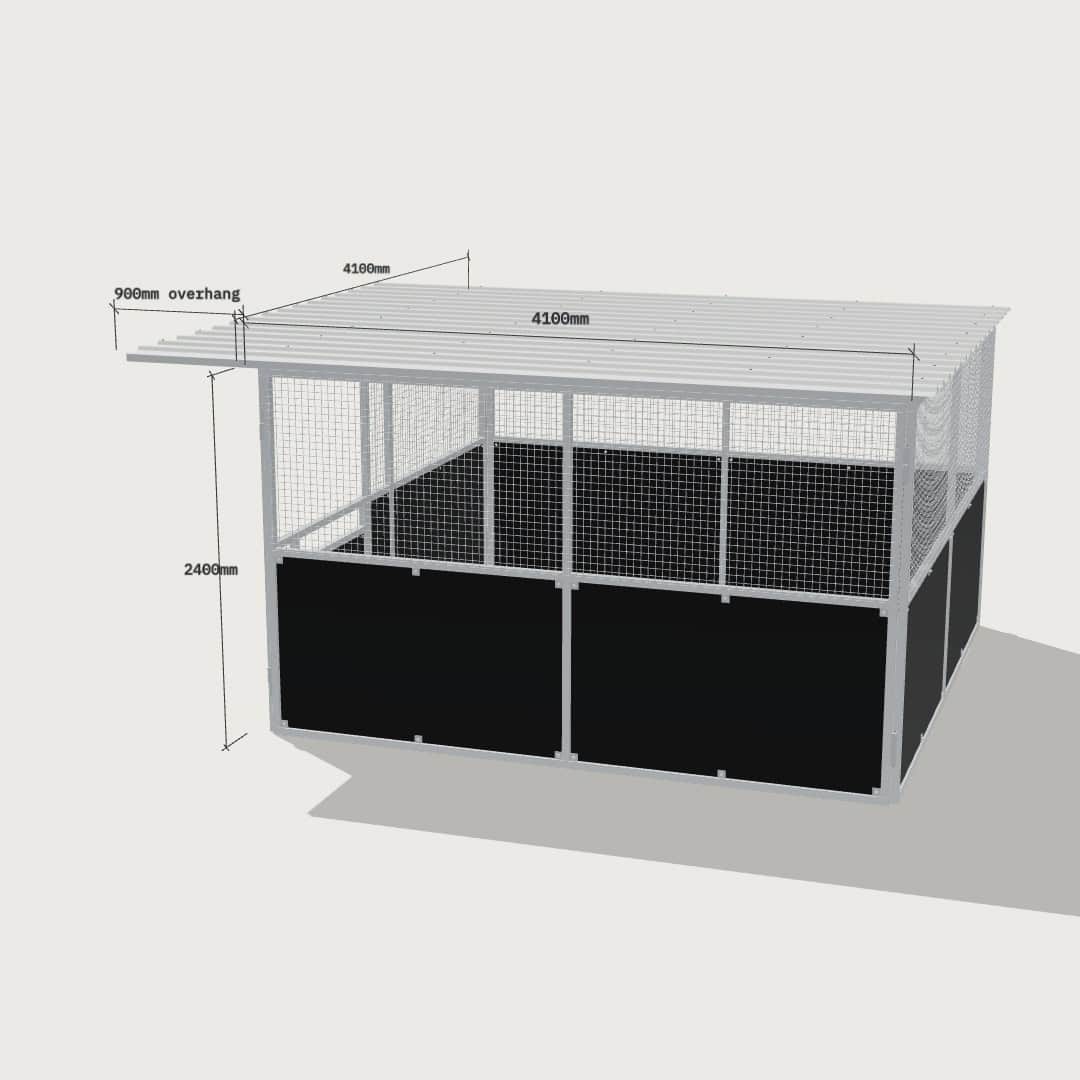

- Frame footprint: 4.1 m × 4.1 m (roof overhang extra)
- Height: 2.4 m
- Roof: trapezoidal ribbed steel sheeting (Trimdek® or Monoclad® profile), 900 mm front and 100 mm rear overhang
- Panels: 17 mm form ply lower, 4 mm galvanised mesh upper

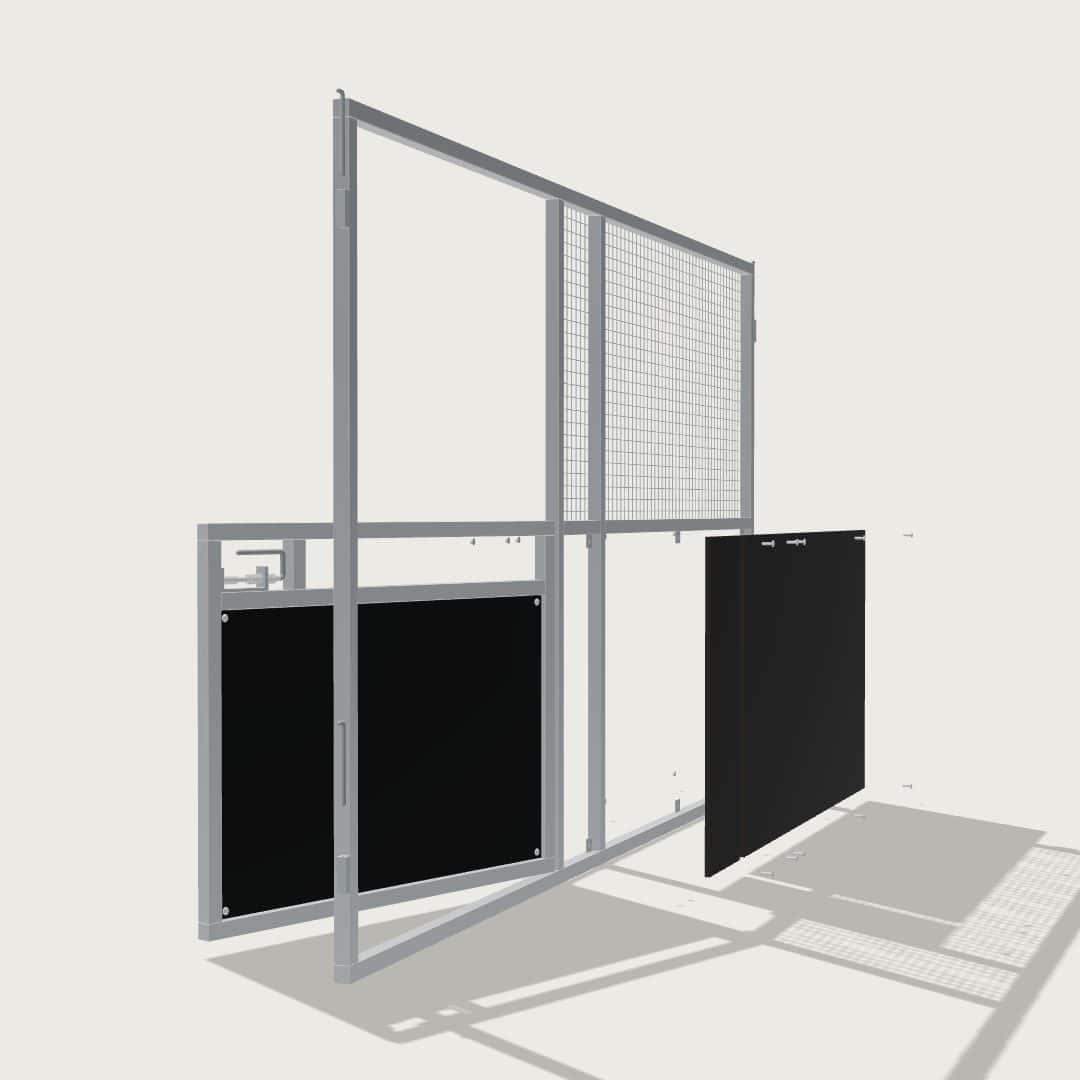

- Gate: 1500 × 1200 mm straight swing gate

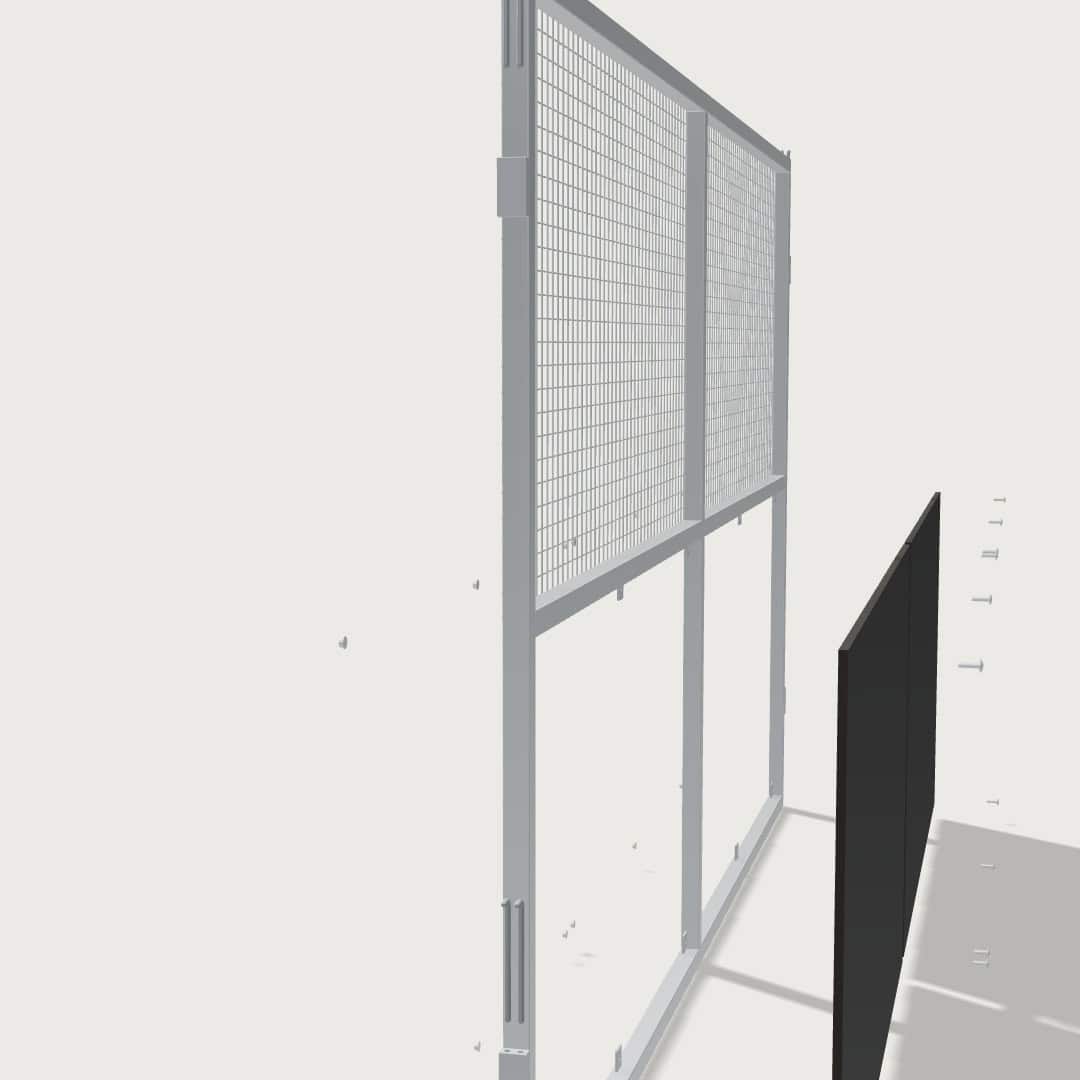

- Frame: 50 × 50 mm galvanised RHS, welded wall panels joined with cattle drop pins and sleeves
$4,950.00
Compact, Tough, and Built for Everyday Use
Guerilla Steel 4m x 4m (16m²) Modular Horse Stable – Compact, Strong, Built to Last
Horse Stable Specs
17mm form ply · 4mm galvanised mesh

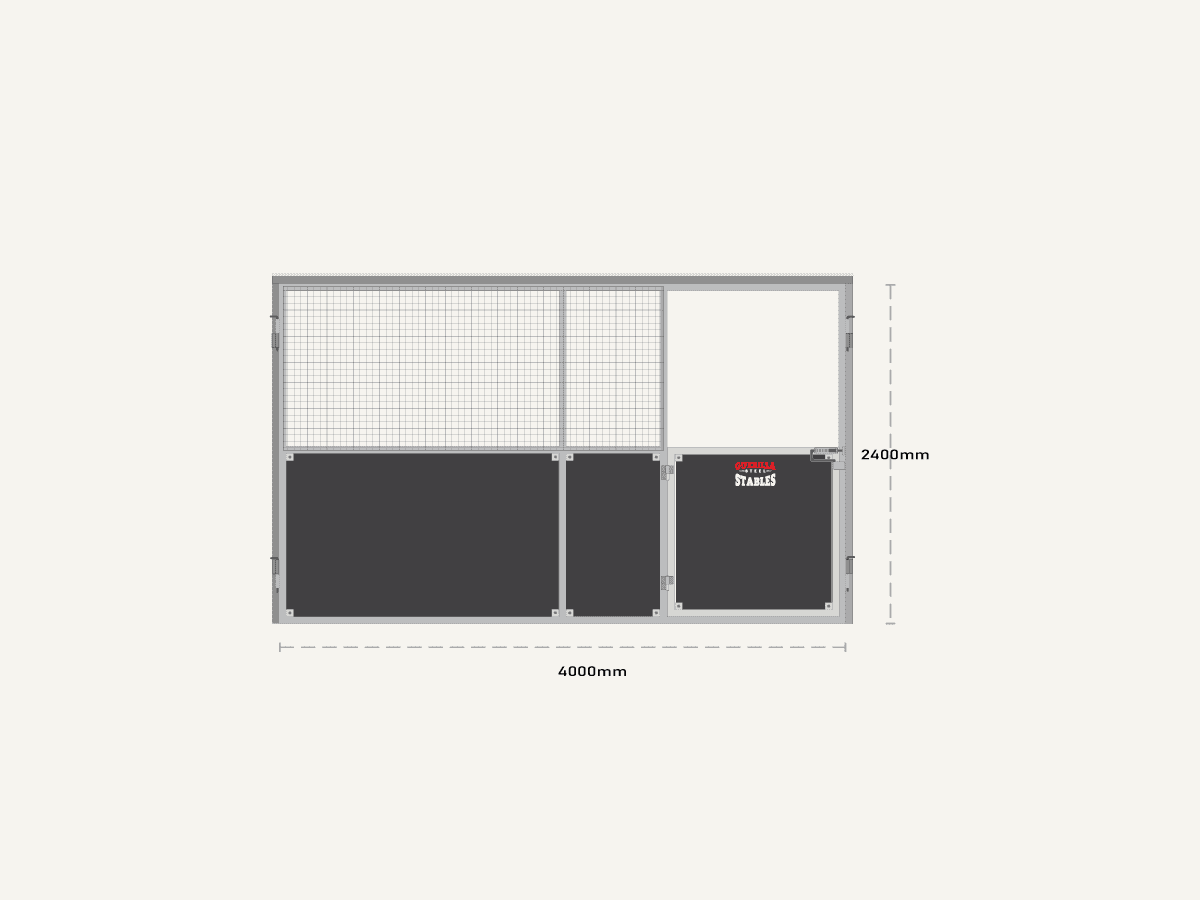

1500mm W x 1200mm H Straight Gate with recessed slam latch

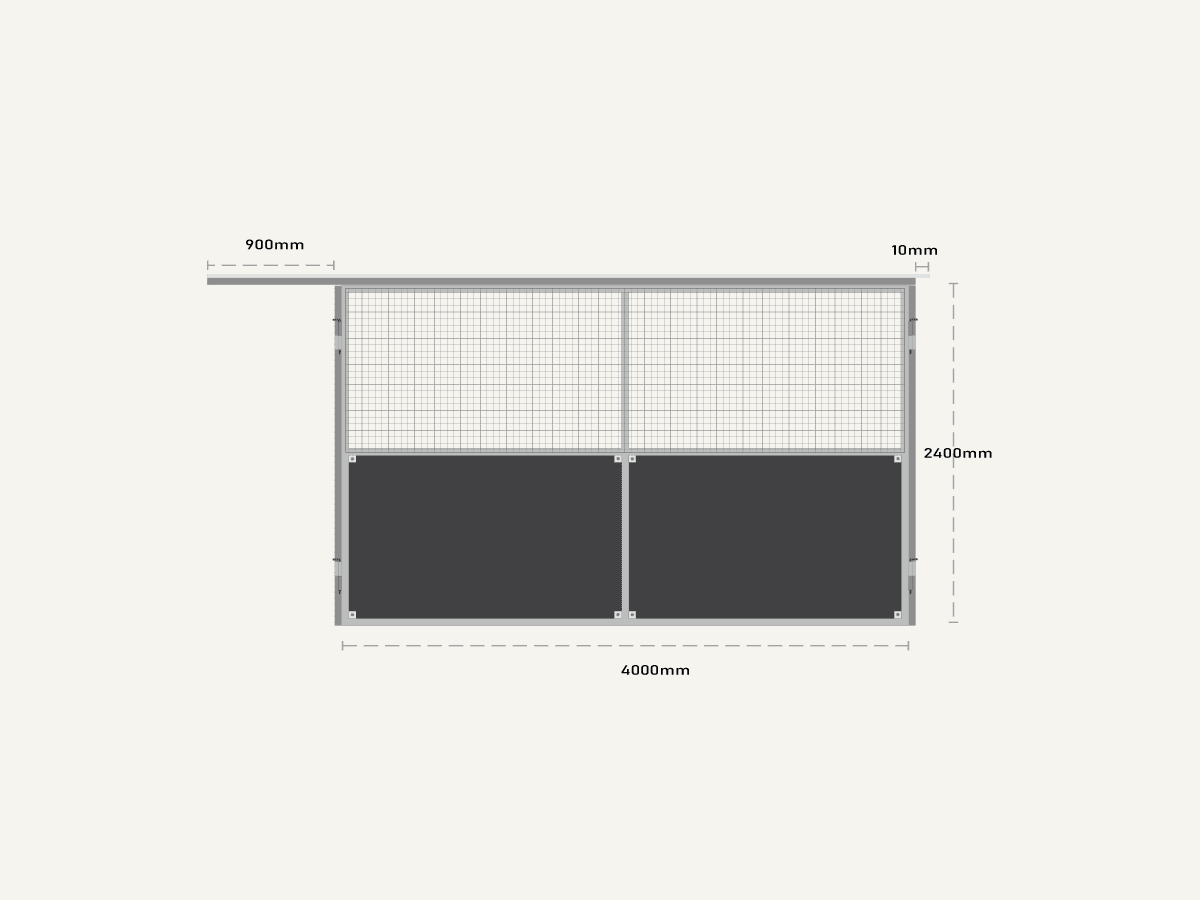

900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative”
Options
GS-146 / May 2025
Standard Horse Stable
A single 4m × 4m horse stable built for Queensland conditions, designed for a retired mare with room to grow. Featuring fully welded Australian steel, ply kickboards, mesh panels and a 2.5m roof height, it delivers durable weather protection, ventilation and stability, while its modular design allows easy future expansion with extra bays or tack rooms.
What Guerilla Steel Stable Owners Say
Building Buying & Owning - Horse Stable
Horse Stable FAQs
A concrete slab is not required for every stable installation. The system can also be installed on compacted road base, crusher dust, gravel or level grass, provided the site is level and drains properly. Concrete is a good option for high traffic areas and gives you a very stable, low movement base. For grass or gravel installations, specialised ground anchors can be used to secure the stable. The biggest priority is good site preparation. A level base with effective drainage will make installation easier and help prevent movement, pooling water and ongoing maintenance issues.
It depends on your base. For grass, road base, gravel or crusher dust, use a ground anchor kit. Concrete footings at anchor points can add support without requiring a full slab.
For a concrete slab, use suitable concrete anchors such as Dynabolts instead. Shed conversions may also need fixings to existing posts or walls, depending on the panel layout.
Guerilla Steel stables are built from Australian steel and fabricated in our Yatala workshop. The stable frames use 50mm RHS steel tube, with 4mm galvanised steel mesh used across gates and upper panel sections. Lower wall sections are fitted with black ply inserts, with options for full ply or different ply and mesh combinations depending on the setup. Roofing is supplied in Australian steel Monoclad sheeting, cut to suit the stable configuration. For detailed dimensions, panel combinations and upgrade options, see our base model comparison page.
Yes. The modular panel system means larger stable setups can be dismantled, transported and reassembled at another property. Even when the stable has been anchored to a slab, the fixings can be removed so the panels can be relocated. This makes the system more flexible than a permanently built structure and can also help retain resale or relocation value if your property needs change
No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide
Have these tools ready:
- Cordless drill or impact driver
- Socket and spanner set
- Spirit level and tape measure
- Rotary hammer drill if anchoring into concrete
- Ladder, clamps and appropriate safety gear
Info For Customers

Building Your Own Horse Stable? DIY Flat Pack Kit’s are Easier Than You Think.

Planning your Horse stable? Get the Stable Building Site Prep Checklist

Horse Stable Design Planning Guide: Best Sizes, Setup Tips, Planning Advice

Steel Horse Stable Maintenance, A Practical Guide for Long-Term Strength and Safety
Upgrade & Customise
Configure with different modular addons, and upgrades available. Change mesh tops, swap form ply panels, upgrade gates, or roofing options. Add a tack room, wash bay or day yard. See the full range for all options.
