GS-BASE-LG-4F-1

Large Horse Stable Kit Single Bay 4m Front

Horse Stable

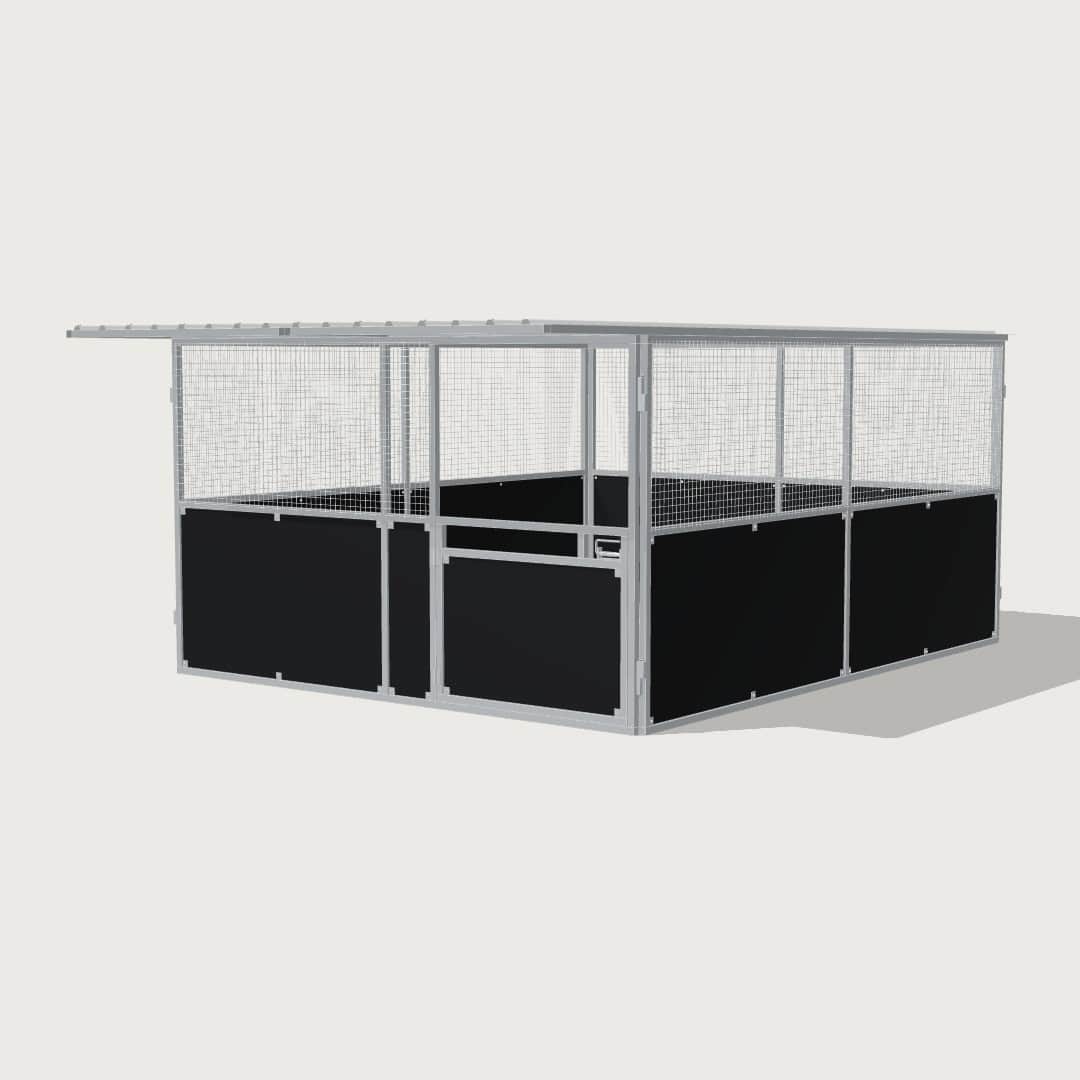

Large single-bay horse stable kit with a 4 m front and 5 m depth, giving 20 m² for a warmblood, a larger breed or a horse that needs more room to turn. The 4 m front keeps the footprint narrow where width is limited.

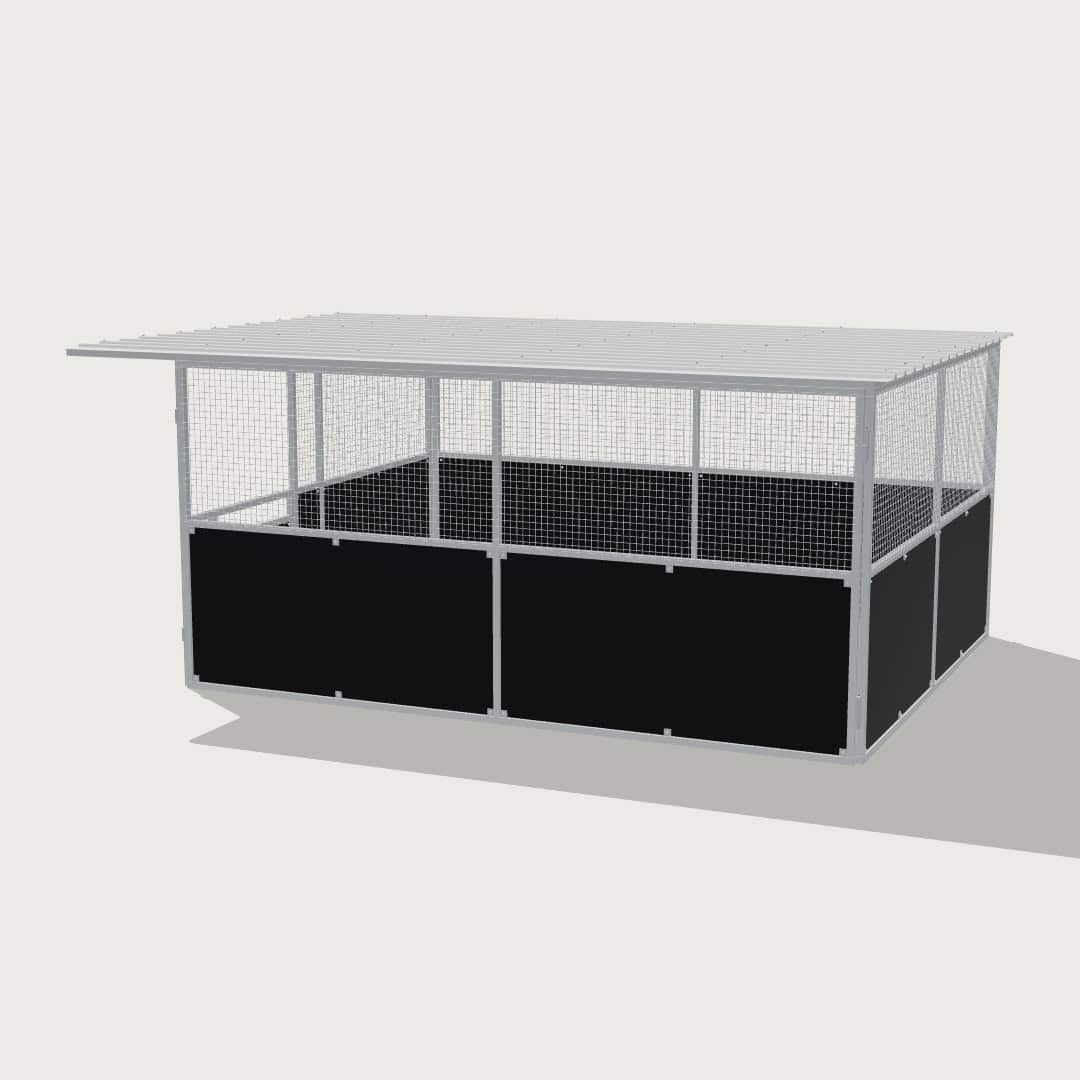

Each wall is a single welded panel of 50 × 50 mm galvanised RHS, made in our Yatala, QLD workshop. A flat 2.4 m roof, ply lower panels and galvanised mesh above keep the bay shaded and ventilated. Supplied as a flat-pack kit for DIY assembly, or installed by our team in South East QLD and Northern NSW.

  • Bays: 1 × 4 m front, 5 m deep
  • Internal floor area: 20 m² (4 × 5 m)

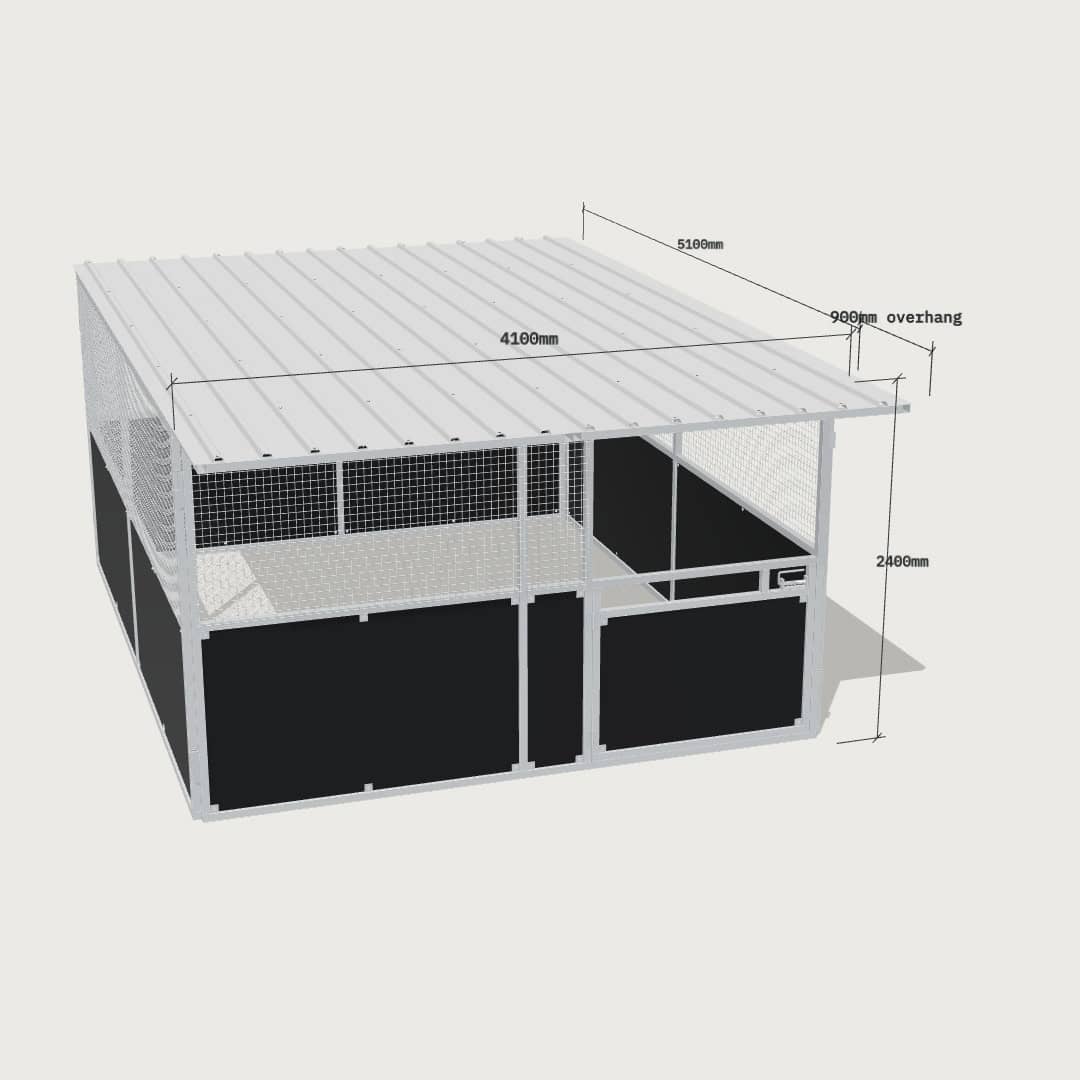

  • Frame footprint: 4.1 m × 5.1 m (roof overhang extra)
  • Height: 2.4 m
  • Roof: trapezoidal ribbed steel sheeting (Trimdek® or Monoclad® profile), 900 mm front and 100 mm rear overhang
  • Panels: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gate: 1500 × 1200 mm straight swing gate

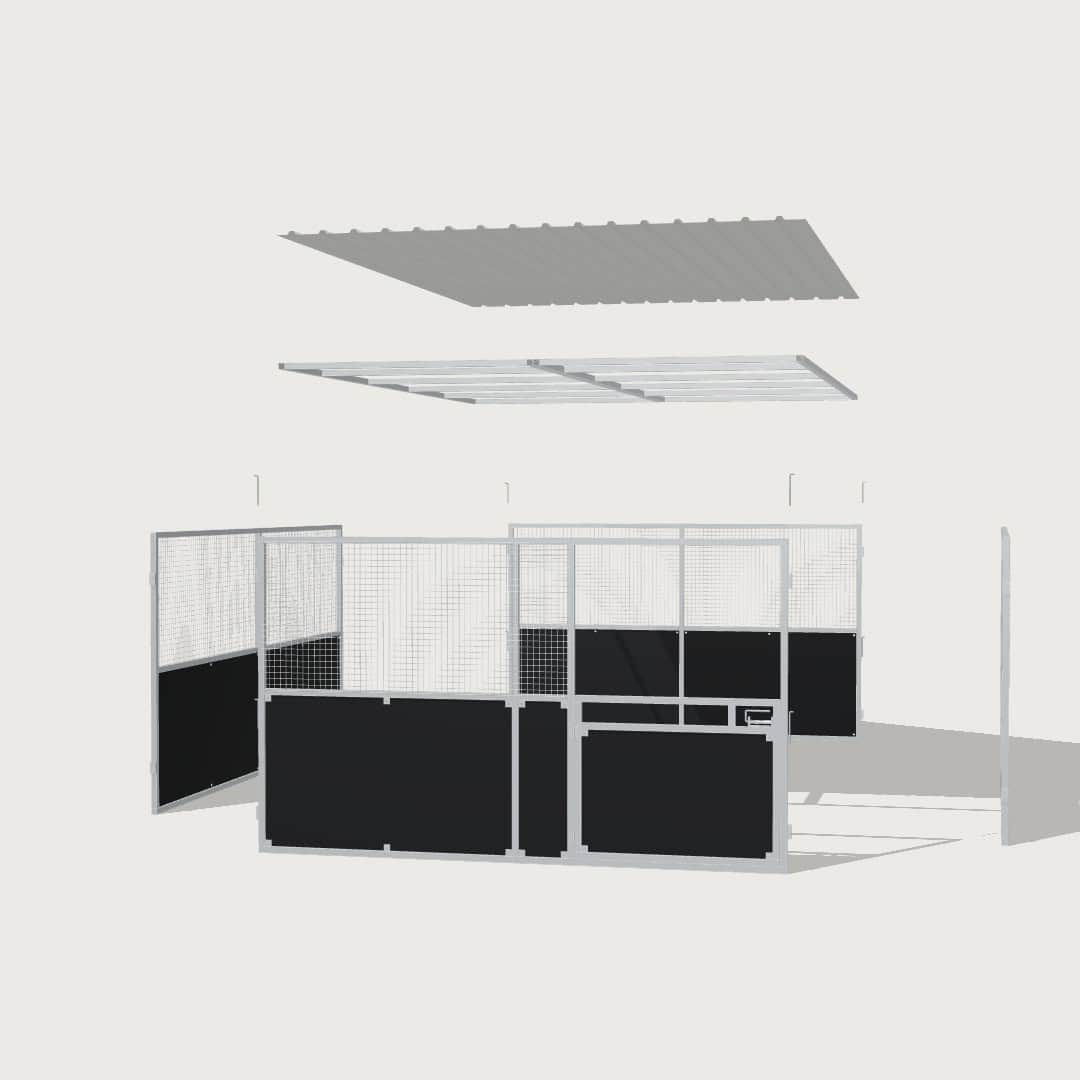

  • Frame: 50 × 50 mm galvanised RHS, welded wall panels joined with cattle drop pins and sleeves
Base Model
Large

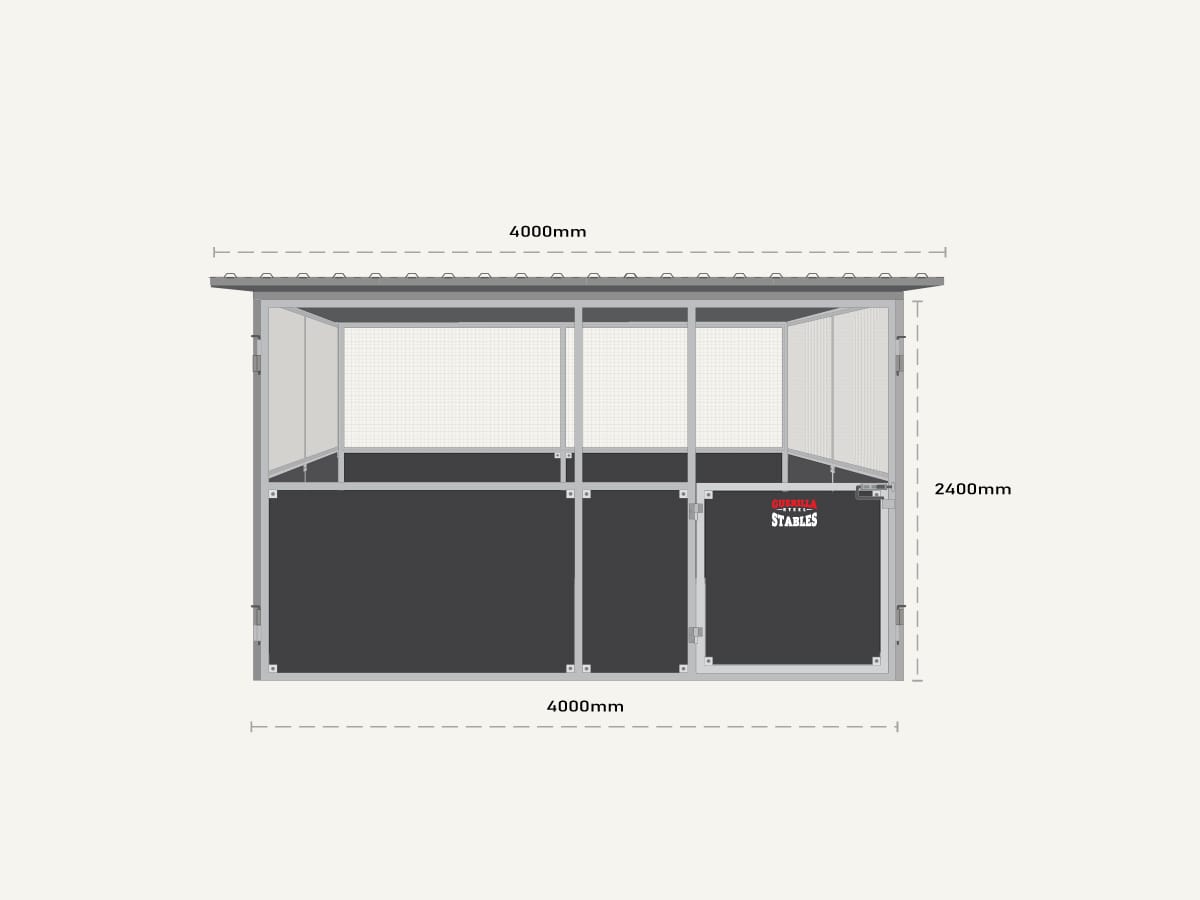

Dimensions
4000mm L
×
5000mm D
×
2400mm H
STALL Count
1-bay
Inside
20m²
Model
Guerilla Steel
Base Model
Installation
700/per bay

$7,480.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

More Room for Larger Breeds and Handlers

Large Breeds, First-Time Horse Owners, Small Property

Guerilla Steel Large Stable 4m x 5m (20m²) – Extra Depth, 4m Front Orientation

Horse Stable Specs

SingLE Bay SIze
4×5m, 5×4m
Large
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Roof
Flat Monoclad® Roof

900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative”

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
700/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Retrofit 4 stables for me into my large farm shed. The work was excellent 100% Aussie steel and hand made wow

Sherelle French

Verify review

Great price, service and quality. Highly recommended!

Alison Maree

Verify review

Made us up a pair of stables fantastic job Great work

Clare F

Verify review

Highly recommend morgan and his boys they did a awesome job

Lisa Jeffs

Verify review
↳ More Info

Building Buying & Owning - Horse Stable

Horse Stable FAQs

A concrete slab is not required for every stable installation. The system can also be installed on compacted road base, crusher dust, gravel or level grass, provided the site is level and drains properly. Concrete is a good option for high traffic areas and gives you a very stable, low movement base. For grass or gravel installations, specialised ground anchors can be used to secure the stable. The biggest priority is good site preparation. A level base with effective drainage will make installation easier and help prevent movement, pooling water and ongoing maintenance issues.

It depends on your base. For grass, road base, gravel or crusher dust, use a ground anchor kit. Concrete footings at anchor points can add support without requiring a full slab.

For a concrete slab, use suitable concrete anchors such as Dynabolts instead. Shed conversions may also need fixings to existing posts or walls, depending on the panel layout.

Guerilla Steel stables are built from Australian steel and fabricated in our Yatala workshop. The stable frames use 50mm RHS steel tube, with 4mm galvanised steel mesh used across gates and upper panel sections. Lower wall sections are fitted with black ply inserts, with options for full ply or different ply and mesh combinations depending on the setup. Roofing is supplied in Australian steel Monoclad sheeting, cut to suit the stable configuration. For detailed dimensions, panel combinations and upgrade options, see our base model comparison page.

Yes. The modular panel system means larger stable setups can be dismantled, transported and reassembled at another property. Even when the stable has been anchored to a slab, the fixings can be removed so the panels can be relocated. This makes the system more flexible than a permanently built structure and can also help retain resale or relocation value if your property needs change

No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide

Have these tools ready:

  • Cordless drill or impact driver
  • Socket and spanner set
  • Spirit level and tape measure
  • Rotary hammer drill if anchoring into concrete
  • Ladder, clamps and appropriate safety gear
★ Morgan ·
replies within 24 hrs

Not sure if this one's right for you?

Tell us 3 things and we'll come back with a recommendation. No quote yet — just an honest opinion from someone who builds these every day.

or just call · 0405 538 413
↳ Ready when you are

Ready to Order Your Large Stable 4m?

1-bay
Large
Base Model ·
20m² ·
4000mm
×
5000mm
×
2400mm
· DIY Flat Pack Kit | Pro 700/per bay

$7,480.00
