RHS Galvanised Steel
Stable Tack Room – Regular Adjoining

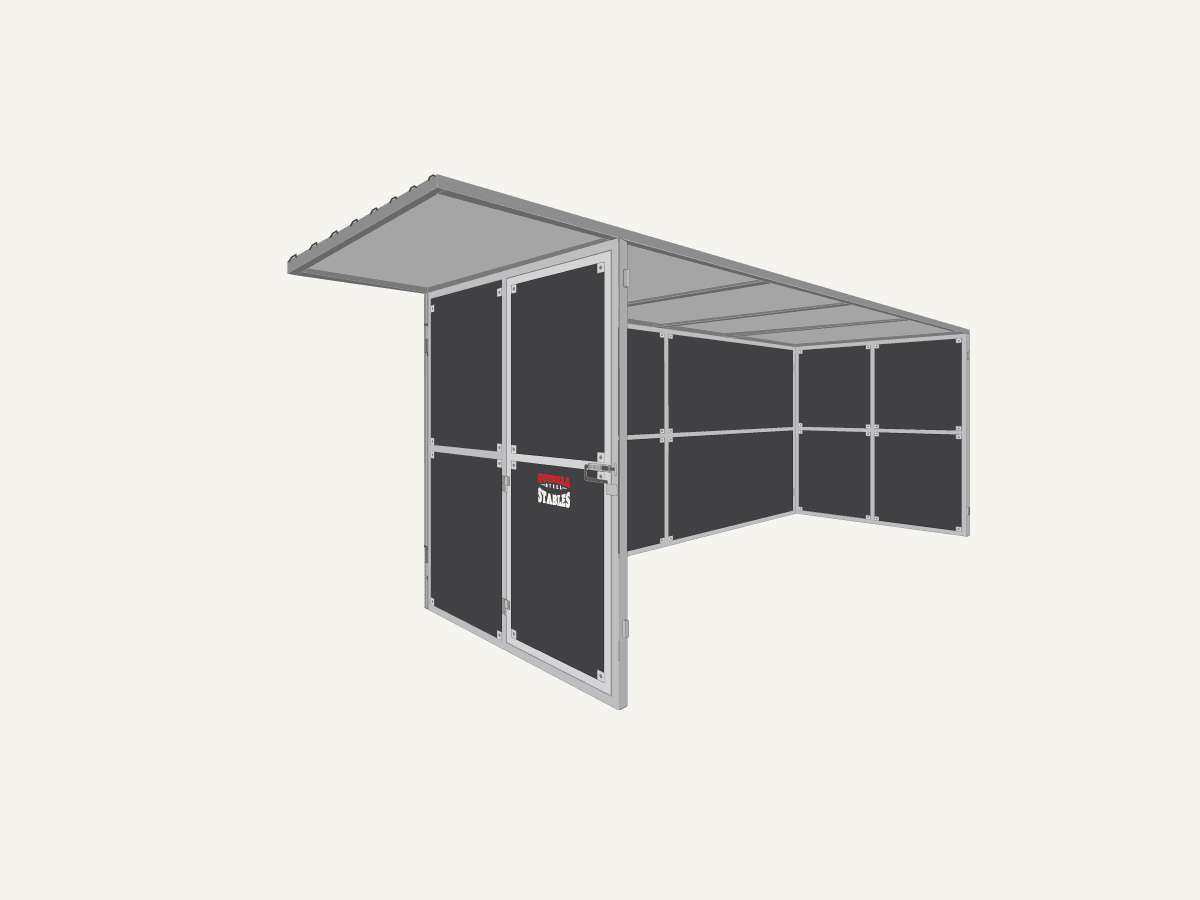

The Regular Adjoining Tack or Feed Room shares a wall with your end stable bay, reducing duplicated panels. Its depth matches a standard stable run, keeping storage within the same layout.
- Size: 2m wide × 4m deep, providing 8m² of storage
- Construction: Welded steel panel frames with full-height 17mm black ply
- Access: Lockable door, 900mm wide × 2300mm high
- Roof: Lysaght Trimdek with a 900mm front overhang
- Assembly: Drop-pin connections to the compatible Guerilla Steel panel system
Requires an adjoining stable wall to complete the room.
$3,960.00
Tack & Storage Beside Your Stables
Add 8m² of lockable tack or feed storage beside your stable. This 2m × 4m adjoining room shares an existing wall and includes full-height black ply panels and roofing.

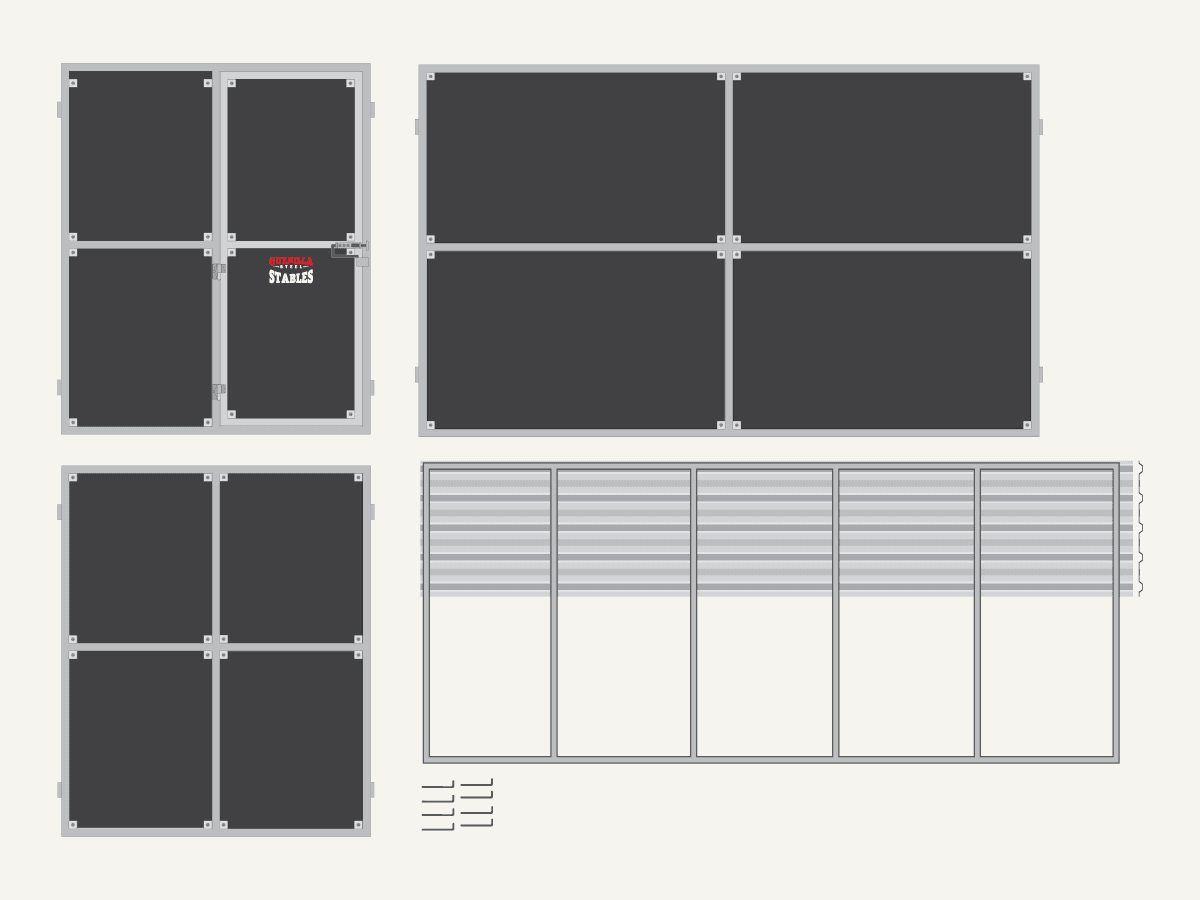

Tack & Utility Add On Specs
17mm form ply · 4mm galvanised mesh
lockable door.
900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative”
Options
GS-126 / June 2025
✦ Customised
3-Bay Stable & Tack
A three-bay modular horse stable built for a Brisbane South acreage, featuring enclosed 4m x 4m bays and an integrated 2.5m x 4m lockable tack room. Designed for Queensland’s climate with ventilated mesh fronts, sheltering ply walls and efficient rainfall drainage, the complex was fully installed on a prepared slab within two days and allows future expansion.
What Guerilla Steel Stable Owners Say
Building Buying & Owning - Tack & Utility Add On
Tack & Utility Add On FAQs
The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.
If you’re likely to expand, plan the orientation, access and available space from the start.
Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.
There is no standard maximum number of bays. The modular panel system can be configured from a single stable through to larger multi bay runs. The practical limit comes down to your available site space, access and the overall layout you need. If you are planning a larger run, it is worth thinking through future expansion from the beginning so additional bays can be added in the right direction.
Info For Customers

Planning your Horse stable? Get the Stable Building Site Prep Checklist

Horse Stable Design Planning Guide: Best Sizes, Setup Tips, Planning Advice

Building Your Own Horse Stable? DIY Flat Pack Kit’s are Easier Than You Think.

Steel Horse Stable Maintenance, A Practical Guide for Long-Term Strength and Safety
Upgrade & Customise
Configure with different modular addons, and upgrades available. Change mesh tops, swap form ply panels, upgrade gates, or roofing options. Add a tack room, wash bay or day yard. See the full range for all options.

Guerilla Steel Ground Anchor Kit – 4x Anchors Per Bay, Suits Ground/Gravel/Grass Set for 1 Bay

Guerilla Steel Yoke Gate upgrade provides a higher barrier with head-out access for younger, high-energy horses or stallions prone to testing stable gates

Guerilla Steel 4m Front Roof Pitch Frame – Per Bay, Improved Fall, Drainage & Airflow (Includes Set of 2x 2000mm x 250mm h Panels per bay)
More Options
Not sure if this one's right for you?
Tell us 3 things and we'll come back with a recommendation. No quote yet — just an honest opinion from someone who builds these every day.
or just call · 0405 538 413Ready to Order Your Adjoining Tack Room?
$3,960.00
