Cattle Rail · Galvanised · Australian Steel
GS-WASH-STD-ADJ-END

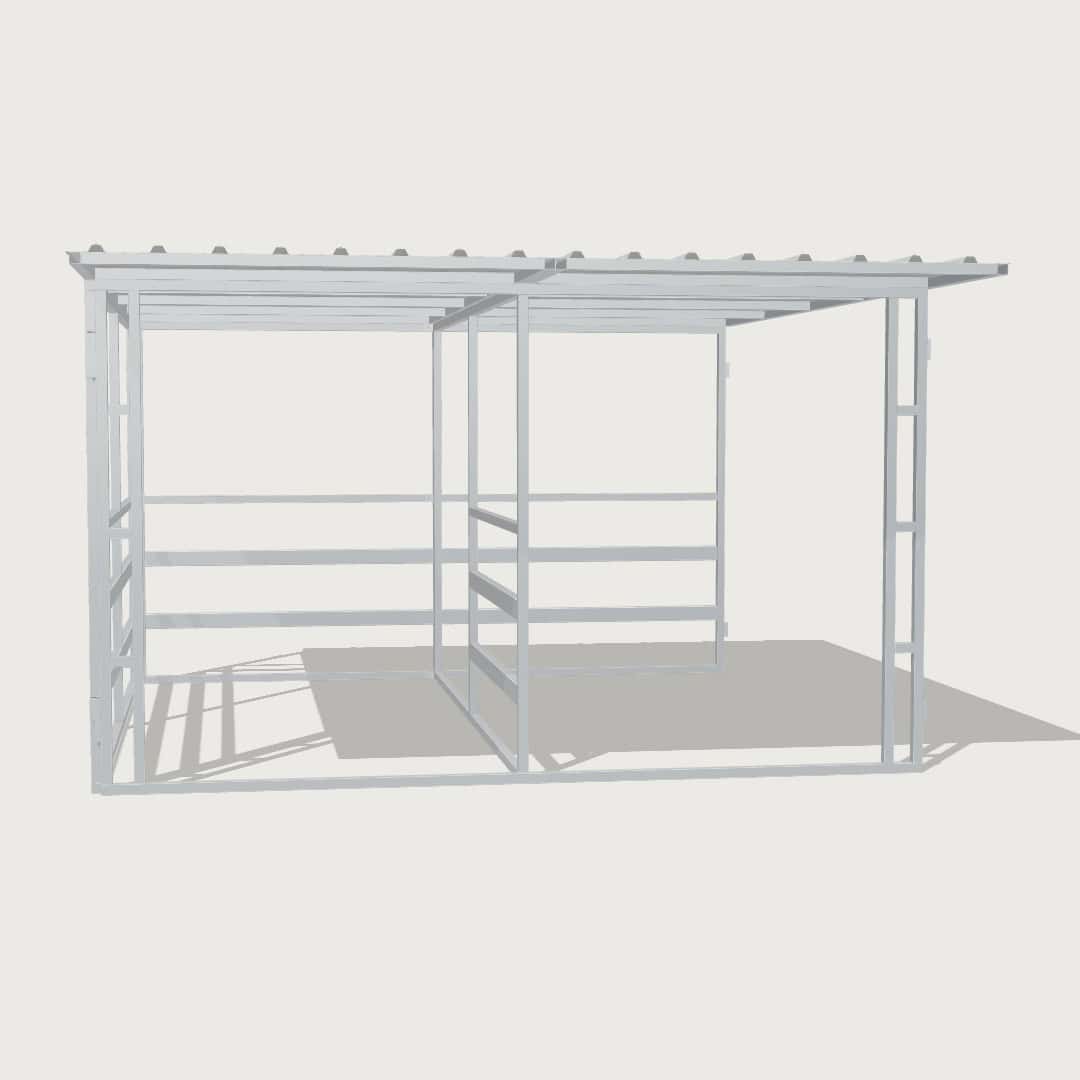

Grooming Wash Bay – Standard End Adjoining
Tack & Utility Add On
The Standard End Adjoining Grooming Wash Bay adds a dedicated work area to the end of a compatible Guerilla Steel stable run. It shares the adjoining stable wall, with an open front for access and cattle rail panels that maintain airflow and visibility.
- Nominal bay size: 4m × 4m, approximately 16m² internally
- Overall dimensions: 4050mm long × 4100mm deep × 2400mm high
- Frame: Galvanised steel, using 50×50mm and 50×100mm RHS
- Panel configuration: Three-rail cattle rail
- Entry: Reinforced 4m open front
- Roof: Flat roofing with a 900mm front overhang, 100mm rear overhang and flush sides.
Designed for adjoining installation using a compatible existing stable wall. Floor preparation, drainage and water supply are arranged separately.
Standard
Dimensions
4050mm L
×
4100mm D
×
2400mm H
STALL Count
1-bay
Inside
16m²
Installation
550/per bay
Aust. Made
SE QLD /Nth nSW
4–6 Week Delivery
Delivery quoted at checkout
Flat Pack Kits
/
DIY FRiendly
/
Australian Steel · Locally Made
↳ Built once. Built right.
A Covered Space for Washing & Grooming
Agistment, Everyday Horse Care, Lifestyle Hobby Farms
Keep washing, grooming and tacking up in a dedicated bay beside your horses, with overhead cover and open access for everyday handling.
Tack & Utility Add On Specs
SingLE Bay SIze
4×4m
Standard
Frame & Fabrication
50×100mm RHS, 50×50mm RHS
Galvanised · Australian Steel
Panel Config
3-Rail Cattle Rail
50×50mm + 50×100mm RHS
GATE
4m Front
Open Front
Reinforced Open Front
Roof
Flat Monoclad® Roof
900mm front overhang · 100mm rear overhang · Flush side finish · Trimdek® alternative”
Installation
Options
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
GS-592 / August 2026
✦ Customised
4 Bay Stable Integrated Wash Bay
Size
4 Bays
20m x 4m (80m²), 4x stalls 64m² plus central 4x4 wash bay 16m²
MODEL / Type
High Airflow
Horse Stable
Built
1.5 day
Guerilla Team
A four-stall stable built around a central wash bay rather than one at the end, cutting how far each horse travels and keeping every stall in sight during washing, farrier or vet work. Galvanised steel frame, solid lower panels with mesh above for airflow, 80m² total, erected in a day and a half despite rain.
★ STABLE OWNER REVIEWS·
What Guerilla Steel Stable Owners Say
20
Reviews · Facebook · Google
↳ More Info
Building Buying & Owning - Tack & Utility Add On
Tack & Utility Add On FAQs
The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.
If you’re likely to expand, plan the orientation, access and available space from the start.
There is no standard maximum number of bays. The modular panel system can be configured from a single stable through to larger multi bay runs. The practical limit comes down to your available site space, access and the overall layout you need. If you are planning a larger run, it is worth thinking through future expansion from the beginning so additional bays can be added in the right direction.
Info For Customers
Planning your Horse stable? Get the Stable Building Site Prep Checklist
Read More
Steel Horse Stable Maintenance, A Practical Guide for Long-Term Strength and Safety
Read More
Horse Stable Design Planning Guide: Best Sizes, Setup Tips, Planning Advice
Read More
Building Your Own Horse Stable? DIY Flat Pack Kit’s are Easier Than You Think.
Read More
↳ BROWSE Tack & Utility Add On Options
Upgrade & Customise
Configure with different modular addons, and upgrades available. Change mesh tops, swap form ply panels, upgrade gates, or roofing options. Add a tack room, wash bay or day yard. See the full range for all options.
Anchor Kit for Grass or Roadbase Stable or Shelter
Guerilla Steel Ground Anchor Kit – 4x Anchors Per Bay, Suits Ground/Gravel/Grass Set for 1 Bay
$110.00
Anti-Rearing Yoke Gate
Guerilla Steel Yoke Gate upgrade provides a higher barrier with head-out access for younger, high-energy horses or stallions prone to testing stable gates
$825.00
High Airflow
High Airflow Roof Pitch Frame for 4m Front Horse Stable
Guerilla Steel 4m Front Roof Pitch Frame – Per Bay, Improved Fall, Drainage & Airflow (Includes Set of 2x 2000mm x 250mm h Panels per bay)
$495.00
More Options
★ Morgan ·
replies within 24 hrs
Not sure if this one's right for you?
Tell us 3 things and we'll come back with a recommendation. No quote yet — just an honest opinion from someone who builds these every day.
or just call · 0405 538 413
↳ Ready when you are
Ready to Order Your Adjoining Wash Bay?
1-bay
Standard
·
16m² ·
4050mm
×
4100mm
×
2400mm
· DIY Flat Pack Kit | Pro 550/per bay
