RHS Galvanised Steel
Reinforced Open Front Paddock Shelter Panel 5m

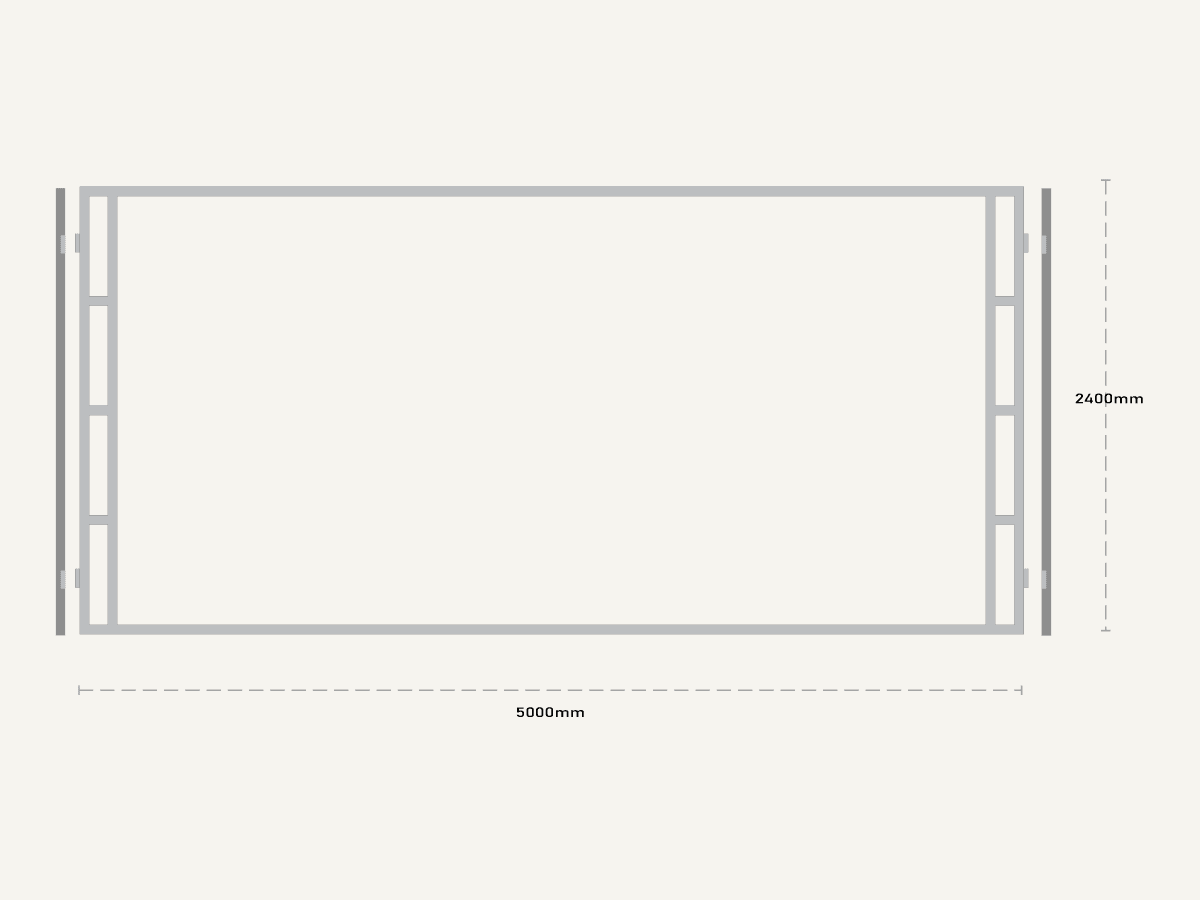

Reinforced open-front panel, 5 m long, for wider paddock shelters where several horses share the cover. Inner vertical bars at each end and three horizontal braces stiffen the 5 m frame, leaving the full height of the opening clear so horses can move in and out without a corner brace in the way.
Made in Yatala, QLD from 50 × 50 mm galvanised RHS, as a single welded frame. Cattle drop pins and sleeves connect it to the shelter’s side panels, whether those are ply and mesh or cattle rail, and the shelter can be taken apart and moved if the paddock changes.
- Panel length: 5 m
- Height: 2.4 m
- Suits: 5 m front shelters and bays (Large 5 m front, XLarge 5 × 5 m)
- Type: open front, no infill or gate; inner vertical bar at each end plus 3 horizontal braces
- Frame: 50 × 50 mm galvanised RHS, welded panel
$1,265.00
5m Open Front Shelter Panel
Guerilla Steel 5m Open Front Steel Panel – 50mm RHS, Shelter Configuration
GS-632 / June 2026
✦ Customised
2 Bay Shelter High Airflow Split-Mesh Ply
An 8m x 4m High Airflow paddock shelter built without an internal divider, creating one continuous 32m² open-front space instead of two separate bays. Featuring a pitched roof for rain runoff, three-quarter ply with mesh above for light and durability, all installed on a gravel pad in a single day.
What Guerilla Steel Stable Owners Say
Building Buying & Owning - Stable Panel
Stable Panel FAQs
Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.
Standard panel frames measure 4000mm long × 2400mm high × 50mm thick. A standard 4m × 4m stable provides 16m² of internal floor space, with an outside frame measurement of 4100mm × 4100mm.
Each adjoining bay shares a dividing panel and adds 4050mm to the overall length: 4000mm for the additional front panel, plus 50mm for the next end or dividing panel.
| Configuration | Outside frame dimensions | Internal floor area |
|---|---|---|
| Single bay | 4100mm × 4100mm | 16m² |
| Two adjoining bays | 8150mm × 4100mm | 32m² |
| Three adjoining bays | 12,200mm × 4100mm | 48m² |
These are frame dimensions. Roof overhangs extend beyond this footprint and need to be allowed for when planning your site.
The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.
If you’re likely to expand, plan the orientation, access and available space from the start.
End and dividing panels use double pin sleeves. Front gate and rear panels use matching single pin sleeves. These line up so the connecting pins can drop into place.
When ordering panels individually, select the correct sleeve configuration for where the panel will sit. If you’re adding to an existing stable, send us a photo of the connection points so we can confirm the match before you order.
No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide
Have these tools ready:
- Cordless drill or impact driver
- Socket and spanner set
- Spirit level and tape measure
- Rotary hammer drill if anchoring into concrete
- Ladder, clamps and appropriate safety gear
