GS-PAN-FRT-PM-5F

Front Stable Panel 5m Ply Mesh Combo Half Gate

Stable Panel

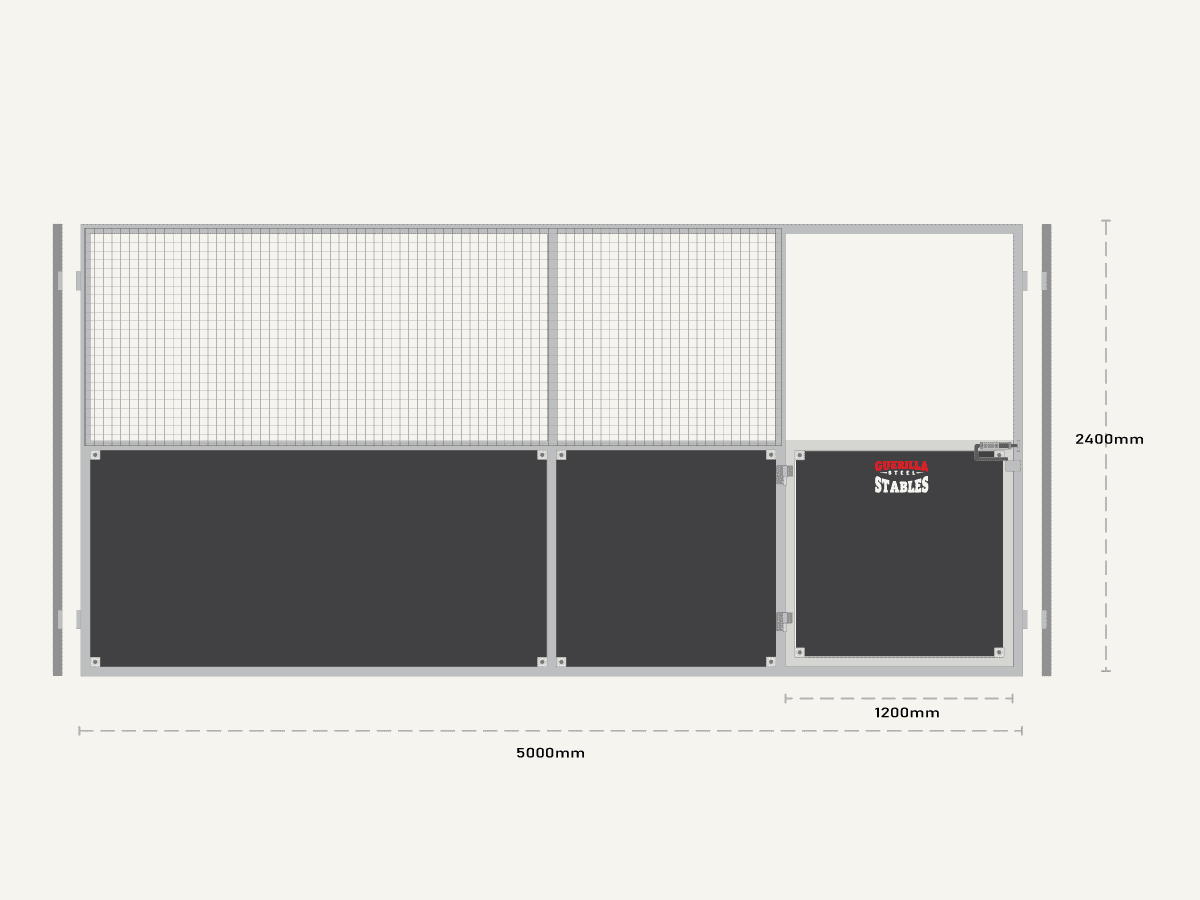

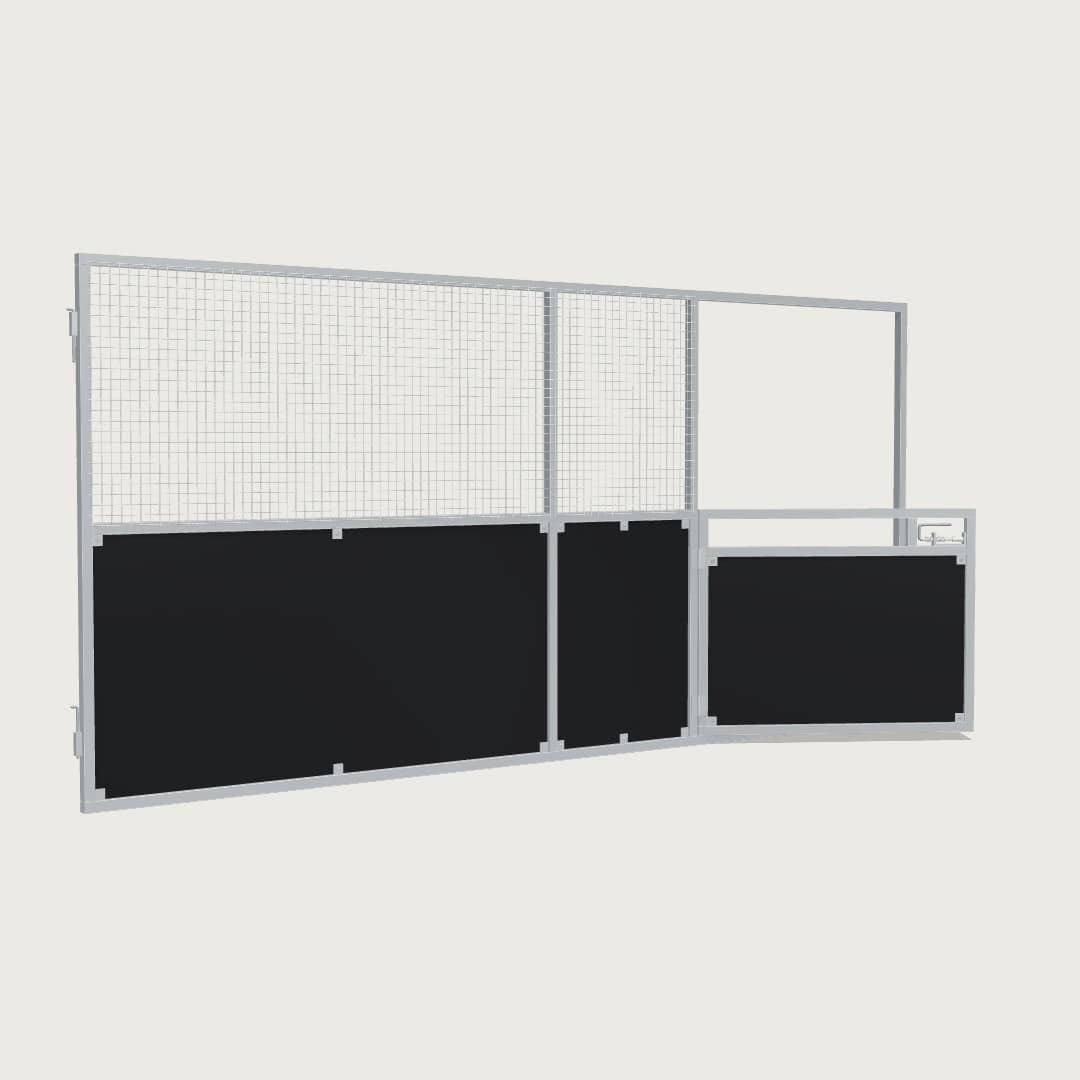

5 m front stable panel with a 1500 × 1200 mm half gate, ply below and galvanised mesh above, for large bays where bigger breeds need the extra width. It fits a large bay with a 5 m front or an XLarge 5 m × 5 m bay.

Fabricated in Yatala, QLD from 50 × 50 mm galvanised RHS, with 17 mm form ply on the bottom half and 4 mm mesh on the top so the front stays open to airflow. The gate closes with a recessed slam latch, and the panel connects to the rest of the stable with cattle drop pins and sleeves. It also suits shed retrofits with a 5 m bay front.

  • Panel length: 5 m
  • Height: 2.4 m
  • Suits: 5 m front bays (Large 5 m front, XLarge 5 × 5 m)
  • Infill: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gate: 1500 × 1200 mm half-height straight swing gate, recessed slam latch
  • Frame: 50 × 50 mm galvanised RHS, welded panel
Large, XLarge
Dimensions
5000mm L
×
2400mm H

$1,980.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

5m Ply/Mesh Front Panel with Half Gate

Large Breeds, DIY Install

Guerilla Steel 5m Ply/Mesh Front Panel – Half Gate Included, Suits Large Bays

Stable Panel Specs

Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
5m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

SPECificatioNS
★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Exceptionally built and next level customer service We will definitely buy again

Jess Allsopp

Verify review

Morgan and his team went above and beyond for our work

Leanne Baker

Verify review

Great price, service and quality. Highly recommended!

Alison Maree

Verify review

Morgan was happy to customise the stable blocks to my needs

Brittany Nitz

Verify review
↳ More Info

Building Buying & Owning - Stable Panel

Stable Panel FAQs

Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.

Standard panel frames measure 4000mm long × 2400mm high × 50mm thick. A standard 4m × 4m stable provides 16m² of internal floor space, with an outside frame measurement of 4100mm × 4100mm.

Each adjoining bay shares a dividing panel and adds 4050mm to the overall length: 4000mm for the additional front panel, plus 50mm for the next end or dividing panel.

ConfigurationOutside frame dimensionsInternal floor area
Single bay4100mm × 4100mm16m²
Two adjoining bays8150mm × 4100mm32m²
Three adjoining bays12,200mm × 4100mm48m²

These are frame dimensions. Roof overhangs extend beyond this footprint and need to be allowed for when planning your site.

The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.

If you’re likely to expand, plan the orientation, access and available space from the start.

End and dividing panels use double pin sleeves. Front gate and rear panels use matching single pin sleeves. These line up so the connecting pins can drop into place.

When ordering panels individually, select the correct sleeve configuration for where the panel will sit. If you’re adding to an existing stable, send us a photo of the connection points so we can confirm the match before you order.

No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide

Have these tools ready:

  • Cordless drill or impact driver
  • Socket and spanner set
  • Spirit level and tape measure
  • Rotary hammer drill if anchoring into concrete
  • Ladder, clamps and appropriate safety gear
