GS-PAN-FRT-PM-4F

Front Stable Panel 4m Ply Mesh Combo Half Gate

Stable Panel

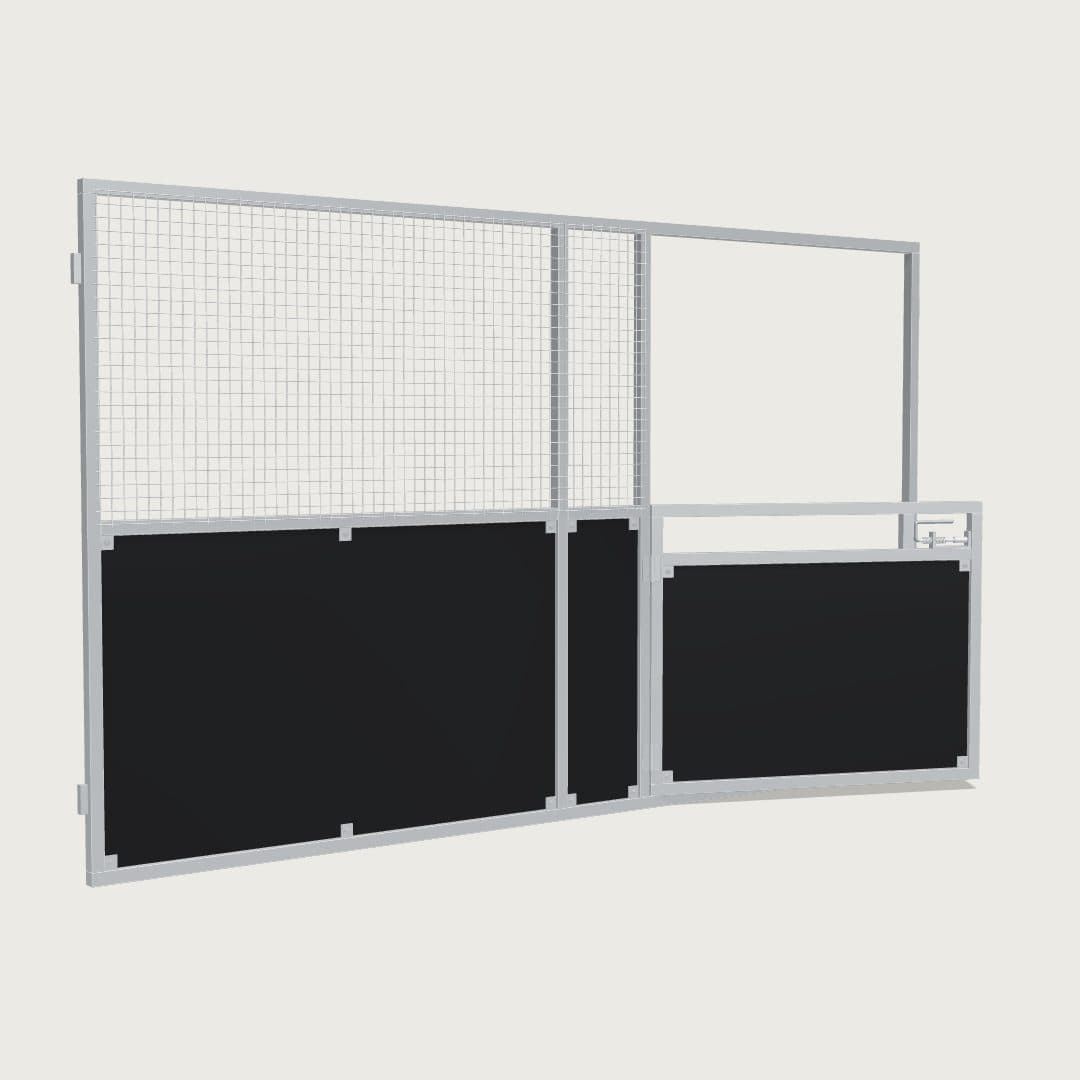

4 m front stable panel with ply lower, galvanised mesh upper and a 1500 × 1200 mm half gate. It closes the front of a standard 4 m × 4 m bay or a large bay with a 4 m front, in a new stable run or a shed retrofit.

The panel and gate are each welded as a single piece from 50 × 50 mm galvanised RHS in our Yatala, QLD workshop. Mesh above the 17 mm form ply keeps air moving through the front of the bay, and the gate closes with a recessed slam latch. The panel joins to side and divider panels with cattle drop pins and sleeves.

  • Panel length: 4 m
  • Height: 2.4 m
  • Suits: 4 m front bays (Standard 4 × 4 m, Large 4 m front)
  • Infill: 17 mm form ply lower, 4 mm galvanised mesh upper
  • Gate: 1500 × 1200 mm half-height straight swing gate, recessed slam latch
  • Frame: 50 × 50 mm galvanised RHS, welded panel
Large, Standard
Dimensions
4000mm L
×
2400mm H
Installation
550/per bay

$1,540.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

4m Ply/Mesh Front Panel with Half Gate

DIY Install, Lifestyle Hobby Farms

Guerilla Steel 4m Ply/Mesh Front Panel – Half Gate Included, Suits Retrofit Builds

Stable Panel Specs

SingLE Bay SIze
4×4m
Large, Standard
Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Ply Mesh Combo

17mm form ply · 4mm galvanised mesh

GATE
4m Front
Ply Mesh Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

Installation
Options
DIY (8–14 hrs) or Pro (1 day)
550/per bay
Delivery/Install Locations
South East Qld & Northern NSW
SPECificatioNS
★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Morgan made some prototype frames for me that are perfect

Dan Wills

Verify review

Morgan and his team are a great bunch of blokes

Toby Cochrane

Verify review

Quality was exceptional and the assembly was surprisingly straightforward

Rose Ellis-Thomson

Verify review

Great quality stables and affordable price Great customer service

Connor Scowcroft

Verify review
↳ More Info

Building Buying & Owning - Stable Panel

Stable Panel FAQs

Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.

Standard panel frames measure 4000mm long × 2400mm high × 50mm thick. A standard 4m × 4m stable provides 16m² of internal floor space, with an outside frame measurement of 4100mm × 4100mm.

Each adjoining bay shares a dividing panel and adds 4050mm to the overall length: 4000mm for the additional front panel, plus 50mm for the next end or dividing panel.

ConfigurationOutside frame dimensionsInternal floor area
Single bay4100mm × 4100mm16m²
Two adjoining bays8150mm × 4100mm32m²
Three adjoining bays12,200mm × 4100mm48m²

These are frame dimensions. Roof overhangs extend beyond this footprint and need to be allowed for when planning your site.

The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.

If you’re likely to expand, plan the orientation, access and available space from the start.

End and dividing panels use double pin sleeves. Front gate and rear panels use matching single pin sleeves. These line up so the connecting pins can drop into place.

When ordering panels individually, select the correct sleeve configuration for where the panel will sit. If you’re adding to an existing stable, send us a photo of the connection points so we can confirm the match before you order.

No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide

Have these tools ready:

  • Cordless drill or impact driver
  • Socket and spanner set
  • Spirit level and tape measure
  • Rotary hammer drill if anchoring into concrete
  • Ladder, clamps and appropriate safety gear
★ Morgan ·
replies within 24 hrs

Not sure if this one's right for you?

Tell us 3 things and we'll come back with a recommendation. No quote yet — just an honest opinion from someone who builds these every day.

or just call · 0405 538 413
↳ Ready when you are

Ready to Order Your 4m Front Panel?

$1,540.00
