GS-PAN-FRT-PLY-5F

Front Stable Panel 5m Full Ply with Half Gate

Stable Panel

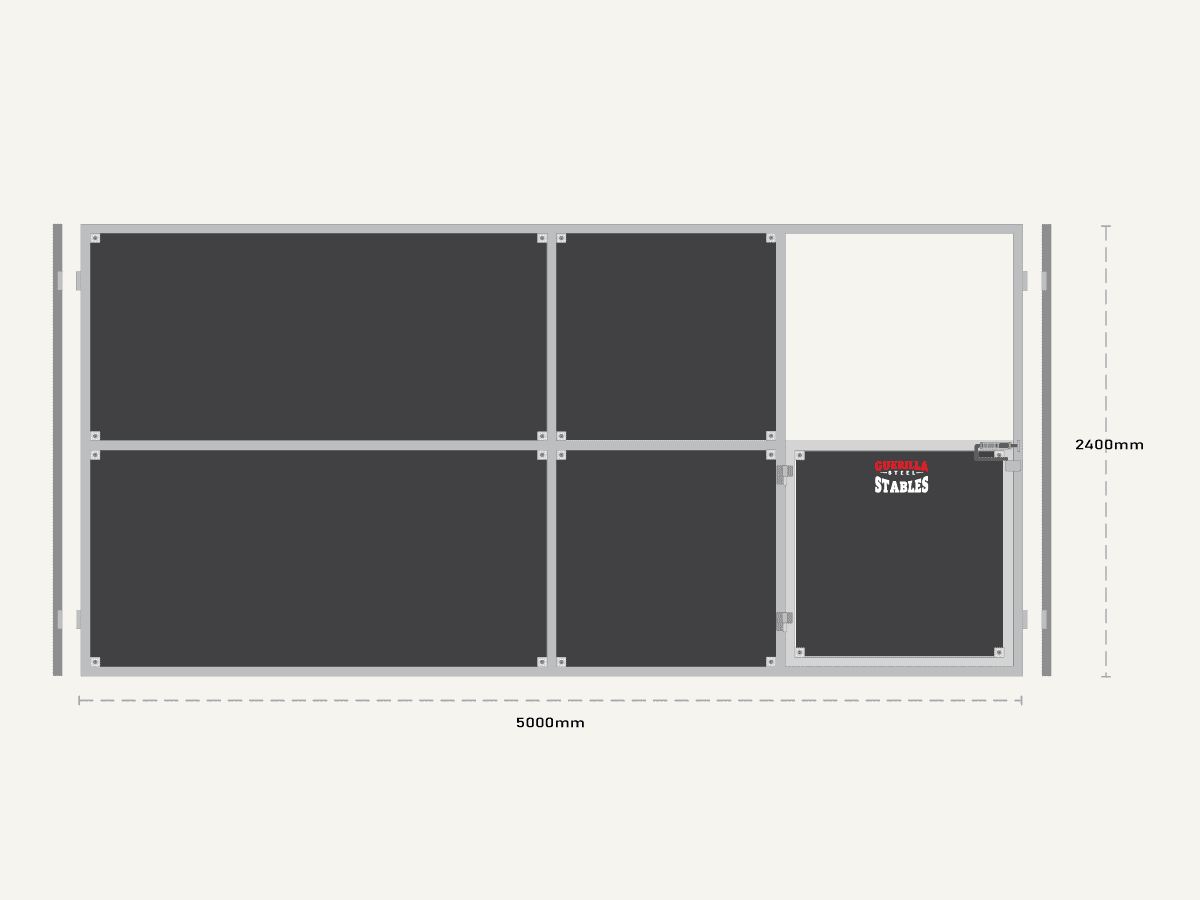

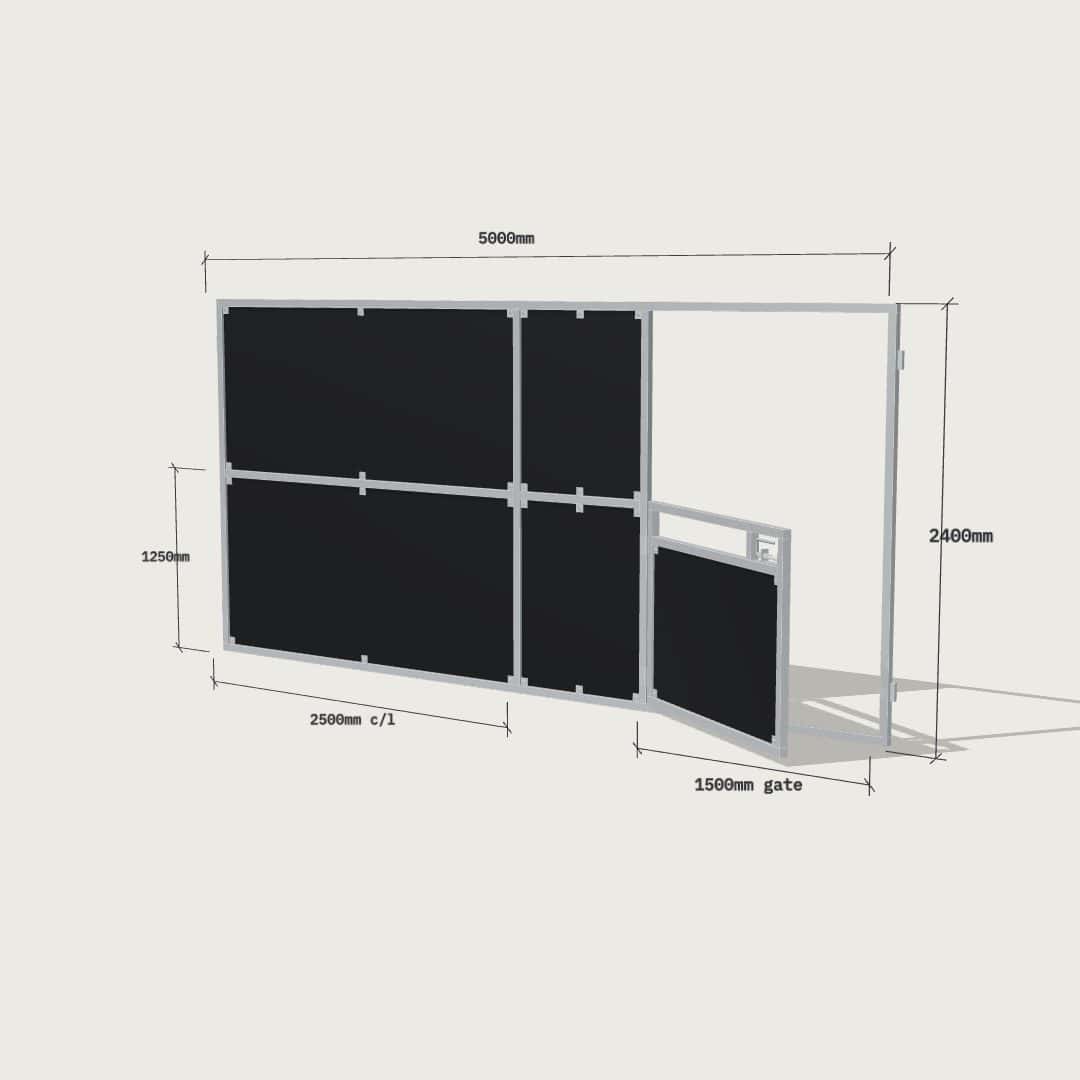

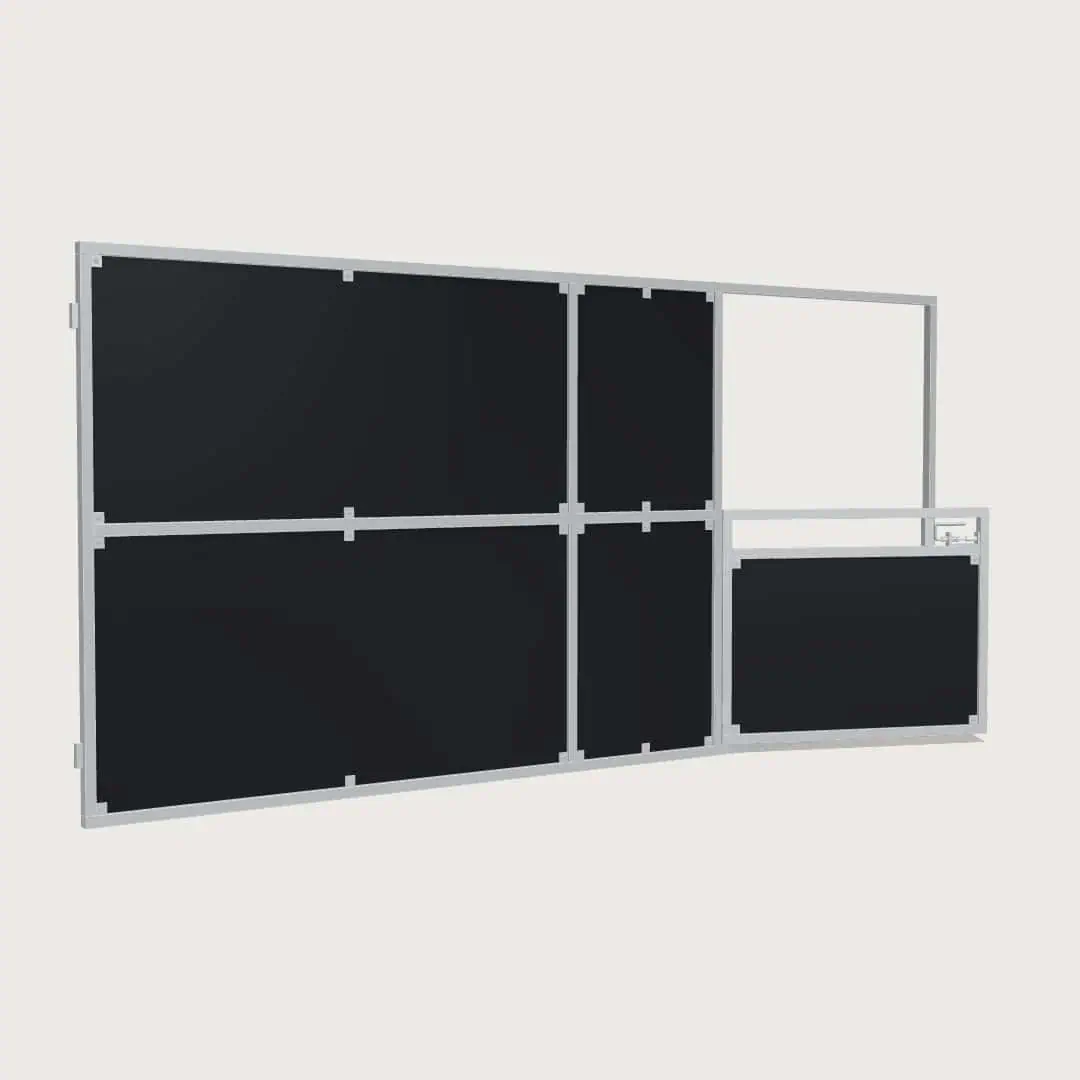

5 m full ply front stable panel with a 1500 × 1200 mm half gate, for large and XLarge bays where the front faces the weather. Full-height 17 mm form ply runs either side of the gate, cutting wind and driving rain into the bay, while the horse can still see out over the half gate.

Prefabricated from 50 × 50 mm galvanised RHS in Yatala, QLD, with the panel and gate each welded as one piece. The solid ply also suits a horse on box rest that needs shelter but still wants to see what’s going on. The gate has a recessed slam latch, and the panel pins to the side walls with cattle drop pins and sleeves.

  • Panel length: 5 m
  • Height: 2.4 m
  • Suits: 5 m front bays (Large 5 m front, XLarge 5 × 5 m)
  • Infill: 17 mm form ply, full height, open above the gate
  • Gate: 1500 × 1200 mm half-height straight swing gate, recessed slam latch
  • Frame: 50 × 50 mm galvanised RHS, welded panel
Large, XLarge
Dimensions
5000mm L
×
2400mm H

$1,980.00

Ask About this Build
Aust. Made SE QLD /Nth nSW 4–6 Week Delivery Delivery quoted at checkout
Flat Pack Kits / DIY FRiendly / Australian Steel · Locally Made
↳ Built once. Built right.

5m Full Ply Front Panel with Half Gate

Large Breeds, DIY Install

Guerilla Steel 5m Full Ply Front Panel – Half Gate, Full Height Form Ply

Stable Panel Specs

Frame & Fabrication
50×50mm

RHS Galvanised Steel

Panel Config
Full Ply

17mm form ply

GATE
5m Front
Fully Ply Gate

1500mm W x 1200mm H Straight Gate with recessed slam latch

SPECificatioNS
★ STABLE OWNER REVIEWS·

What Guerilla Steel Stable Owners Say

5.0
20
Reviews · Facebook · Google

Epic fire pit Morgan didn’t hesitate to make a modification for us

JP H (JP)

Verify review

Guerilla steel have an awesome team of great people at what they do

Riley Haua

Verify review

Made us up a pair of stables fantastic job Great work

Clare F

Verify review

Highly recommend morgan and his boys they did a awesome job

Lisa Jeffs

Verify review
↳ More Info

Building Buying & Owning - Stable Panel

Stable Panel FAQs

Our fully welded panels connect using heavy-duty cattle drop pins. The connection points line up and the pins drop into place. The pin sleeve joint make assembly straightforward and allows panels to be reconfigured or additional bays added later.

Standard panel frames measure 4000mm long × 2400mm high × 50mm thick. A standard 4m × 4m stable provides 16m² of internal floor space, with an outside frame measurement of 4100mm × 4100mm.

Each adjoining bay shares a dividing panel and adds 4050mm to the overall length: 4000mm for the additional front panel, plus 50mm for the next end or dividing panel.

ConfigurationOutside frame dimensionsInternal floor area
Single bay4100mm × 4100mm16m²
Two adjoining bays8150mm × 4100mm32m²
Three adjoining bays12,200mm × 4100mm48m²

These are frame dimensions. Roof overhangs extend beyond this footprint and need to be allowed for when planning your site.

The Guerilla Steel range works as one modular system. You can add bays, tack rooms or wash areas anytime without rebuilding the original stable. Front/rear and end/dividing panels are interchangeable across our stables and shelters, making it easy to reconfigure your layout or add more bays later.

If you’re likely to expand, plan the orientation, access and available space from the start.

End and dividing panels use double pin sleeves. Front gate and rear panels use matching single pin sleeves. These line up so the connecting pins can drop into place.

When ordering panels individually, select the correct sleeve configuration for where the panel will sit. If you’re adding to an existing stable, send us a photo of the connection points so we can confirm the match before you order.

No welding or advanced building skills are needed. Each front side and dividing panel arrives fully welded. They connect together with pin and sleeve joints. You’ll need to keep panels square and level, and securely anchor the frame. Have another person help position and hold panels. See the DIY Stable Guide

Have these tools ready:

  • Cordless drill or impact driver
  • Socket and spanner set
  • Spirit level and tape measure
  • Rotary hammer drill if anchoring into concrete
  • Ladder, clamps and appropriate safety gear
